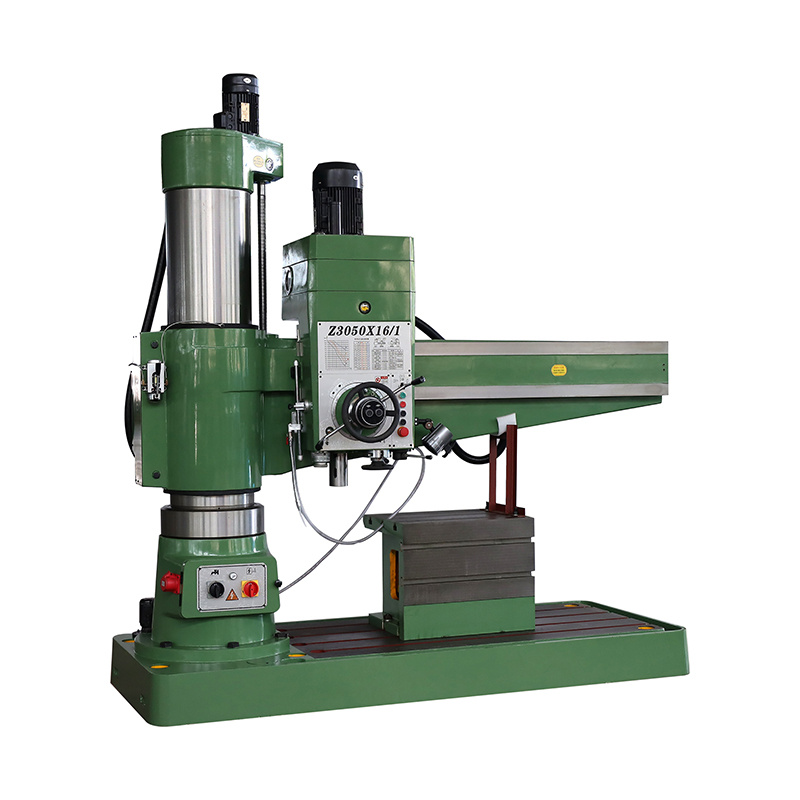

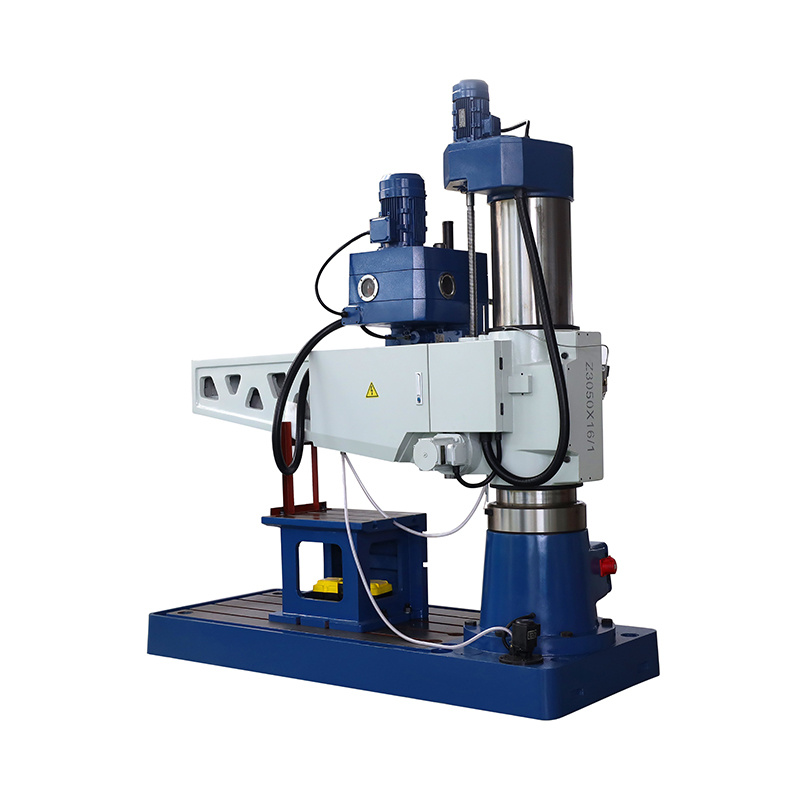

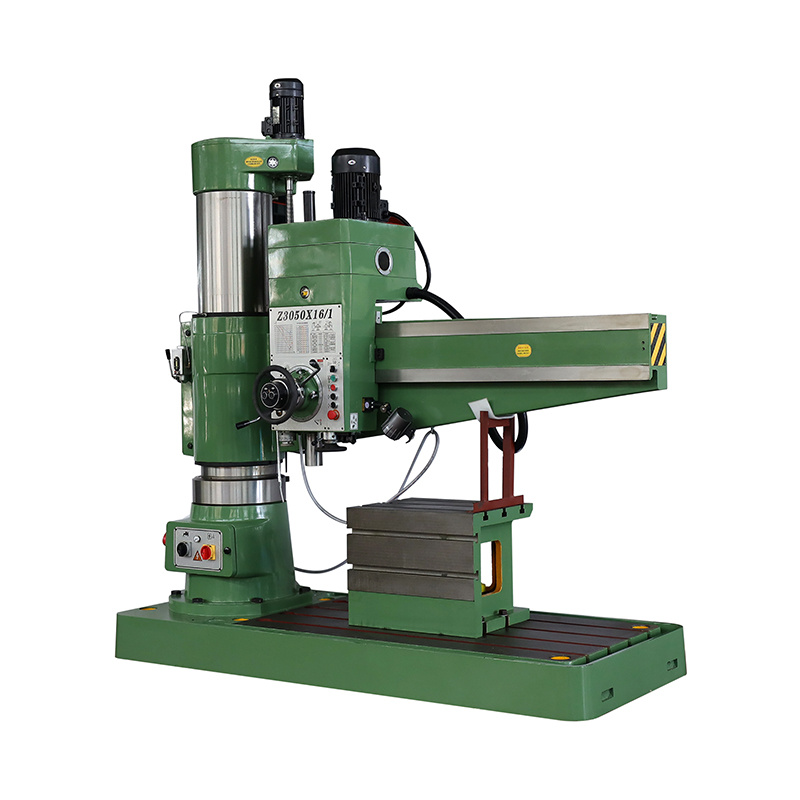

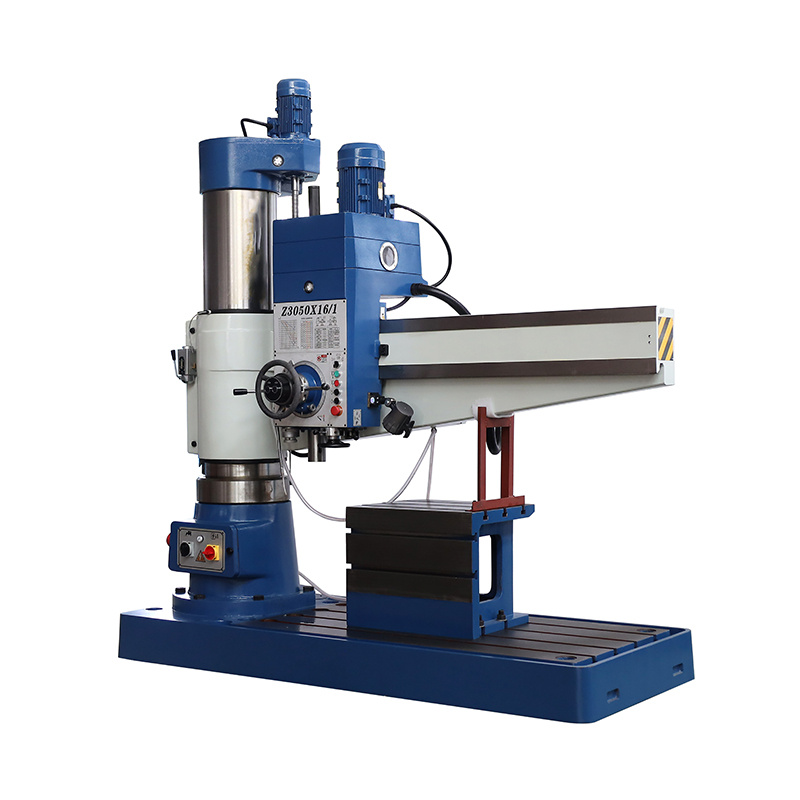

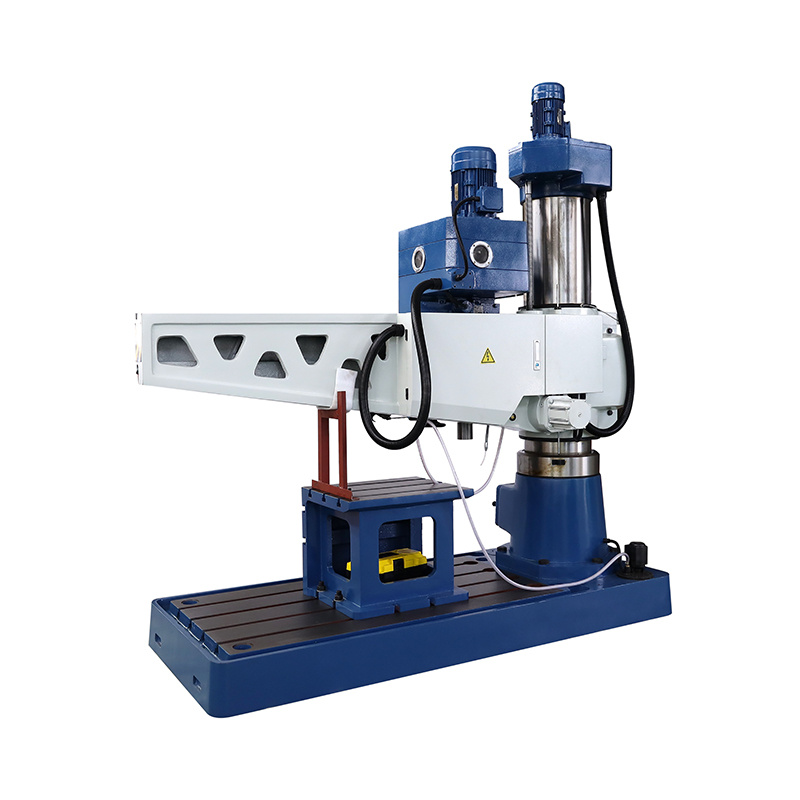

Z3050 50mm Metal Radial Arm Drilling Machine

Features
Flexible operation: 360rocker arm rotation
Reliable clamping:equipped with hydraulic locking and hydraulic speed change
Reasonable structural design: all components undergo quenching treatment
Simple operation: multiple actions completed via a single handle control
Color:
customer request
Availability:
Quantity:
Inquire Add to Basket

  • Gz42150

  • JEPPS

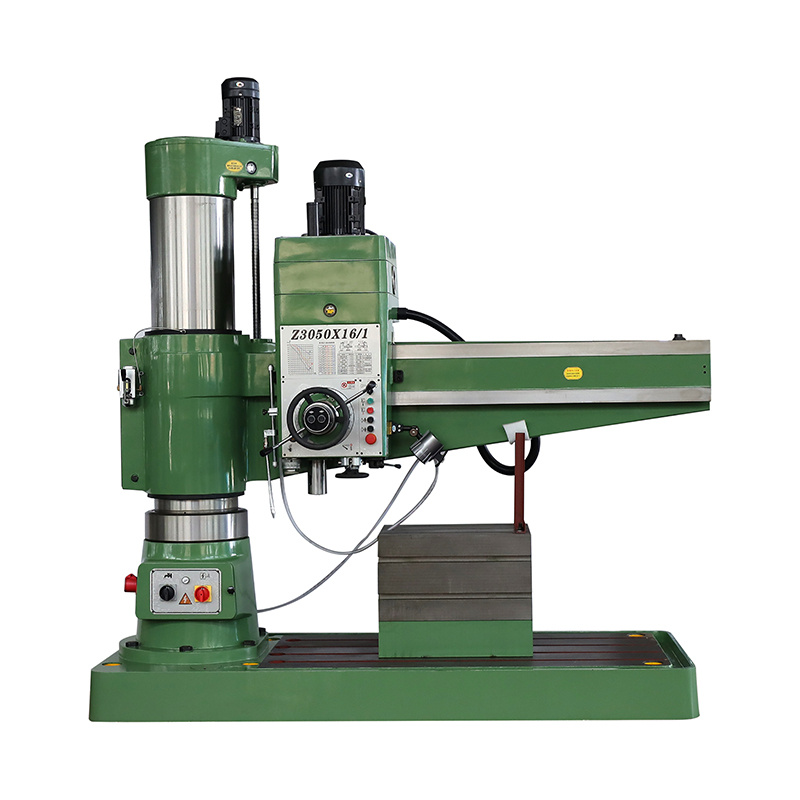

Z3050-4


Z3050*16 product features

Flexible operation: 360rocker arm rotation

Reliable clamping:equipped with hydraulic locking and hydraulic speed change
Reasonable structural design: all components undergo quenching treatment
Simple operation: multiple actions completed via a single handle control


Z3050-4

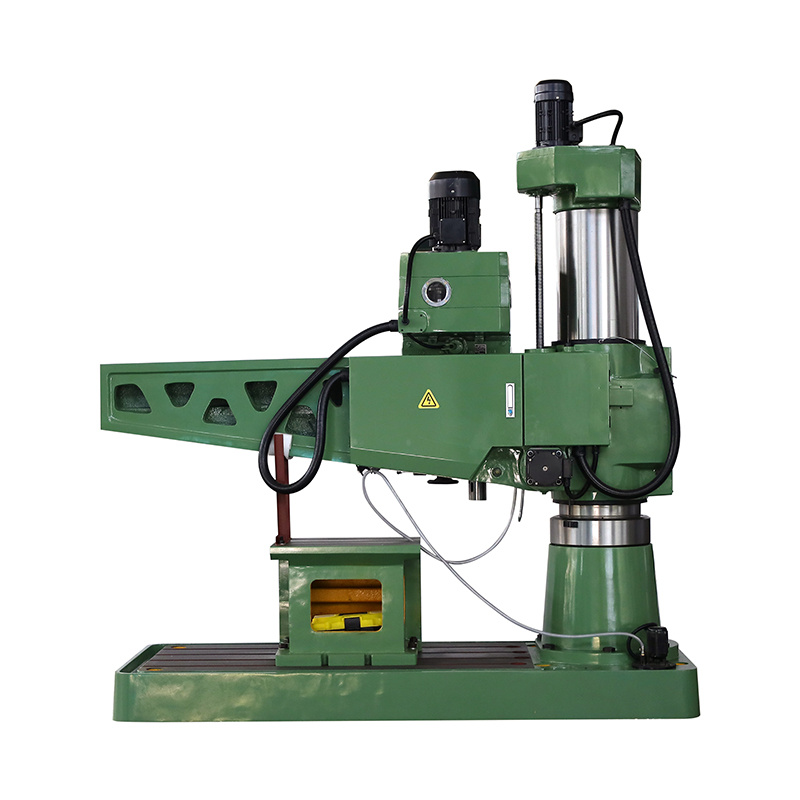

Z3050-6


Item

Z3032

Z3040

Z3050

Z3063

Max drilling diameter

mm

32

40

50

63

Travel of spindle

mm

120

220

315

450

Spindle cone hole

Moss No.4

Moss No.4

Moss No.5

Moss No.6

Number of spindle speeds

6

12

16

16

Shake arm rotation angle

360°

360°

360°

Main motor power

kw

1.5

3kw

4

7.5

Table size

cm

46X32X35

55X40X40

63X50X50

100X80X56

Rotate speed

rpm

108-1000

34-1280

78-1100

16-1250

Overall size (L x W x H)

cm

150X70X205

160X71X220

250X106X265

373X140X379

Net weight

kg

1100

1500

3500

10000

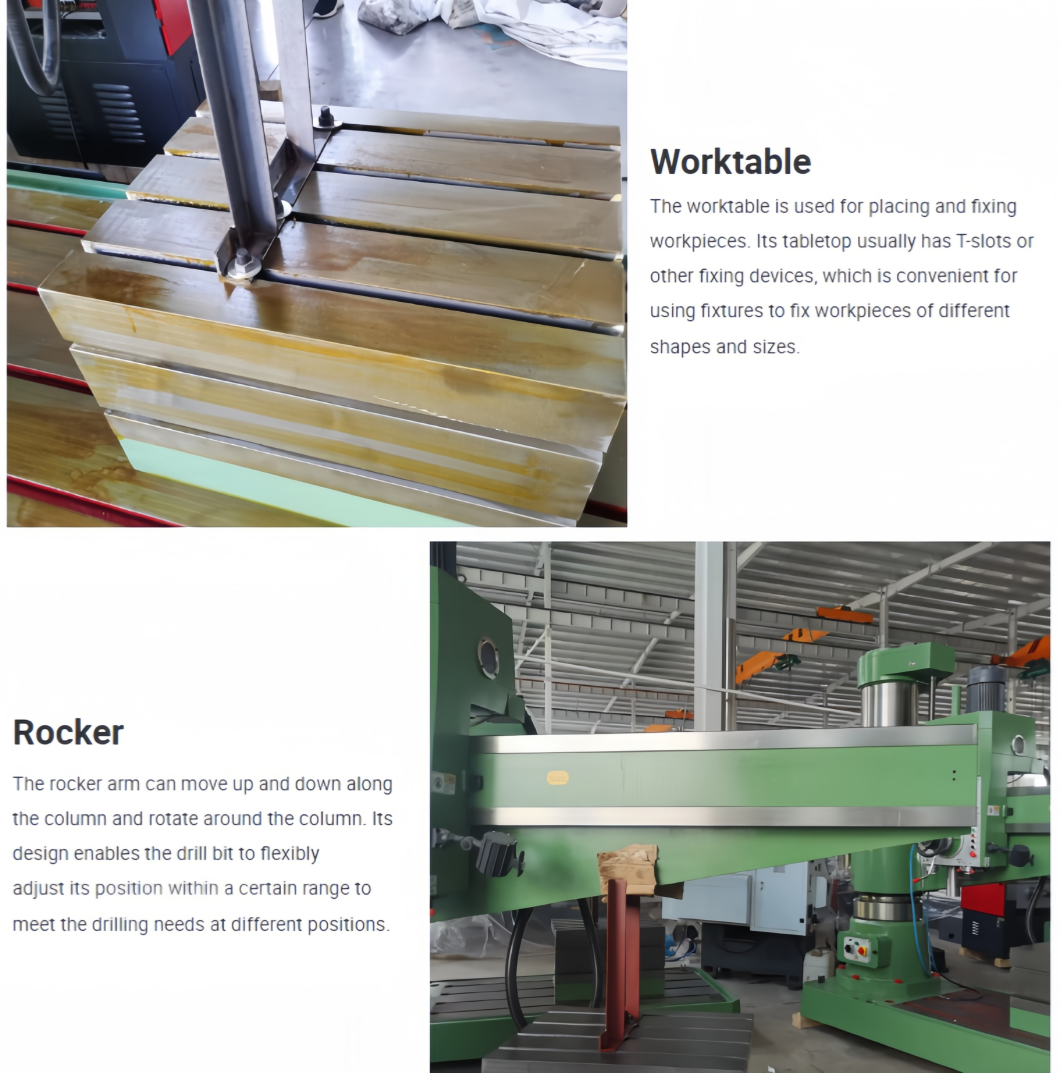

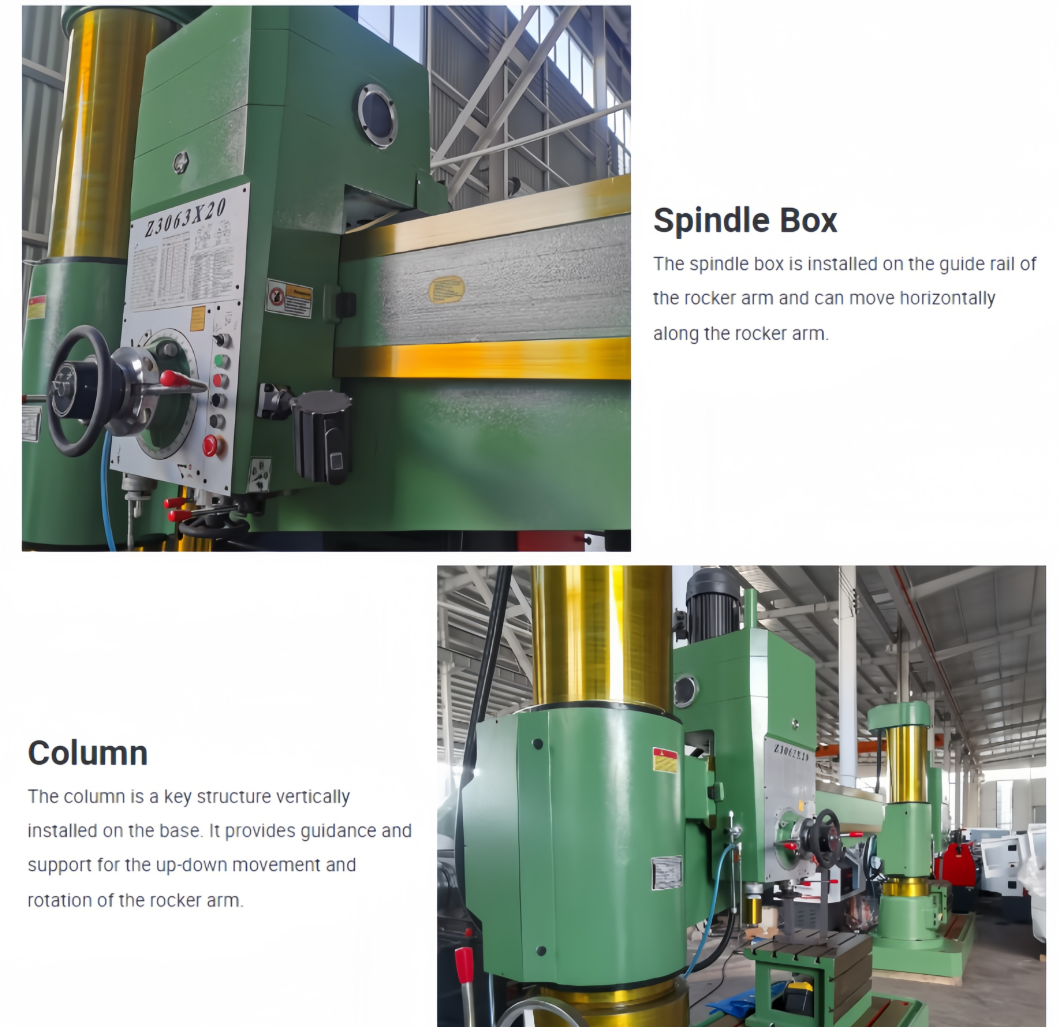

详情-1详情-2

简介包装，发货证书
