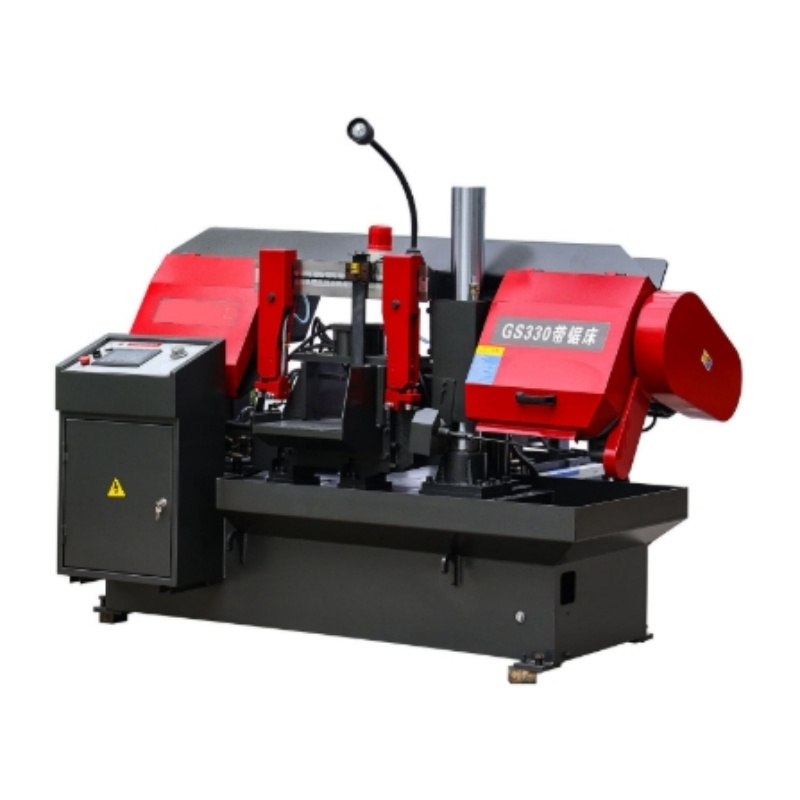

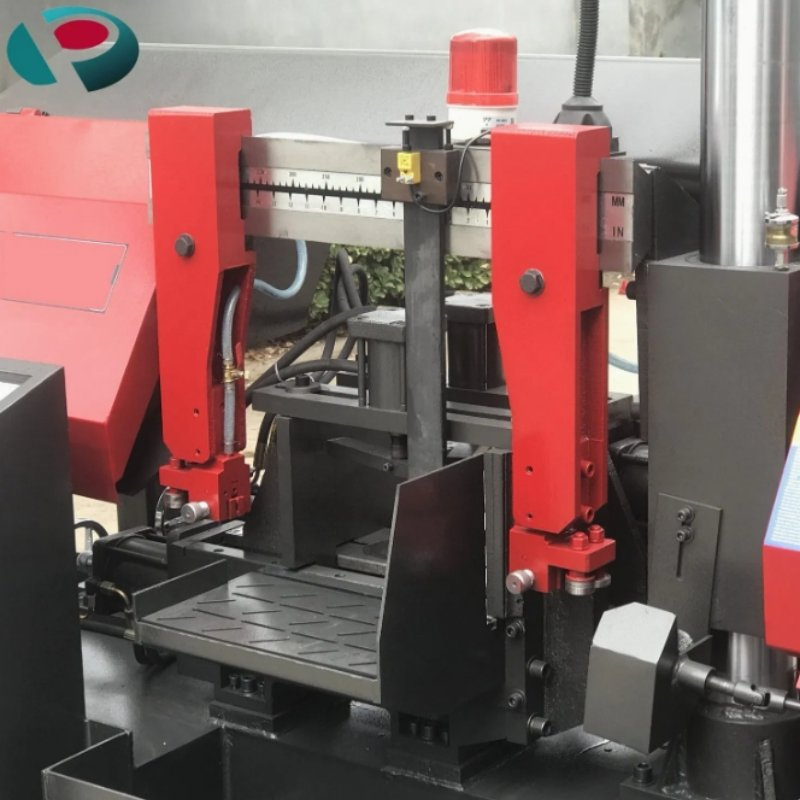

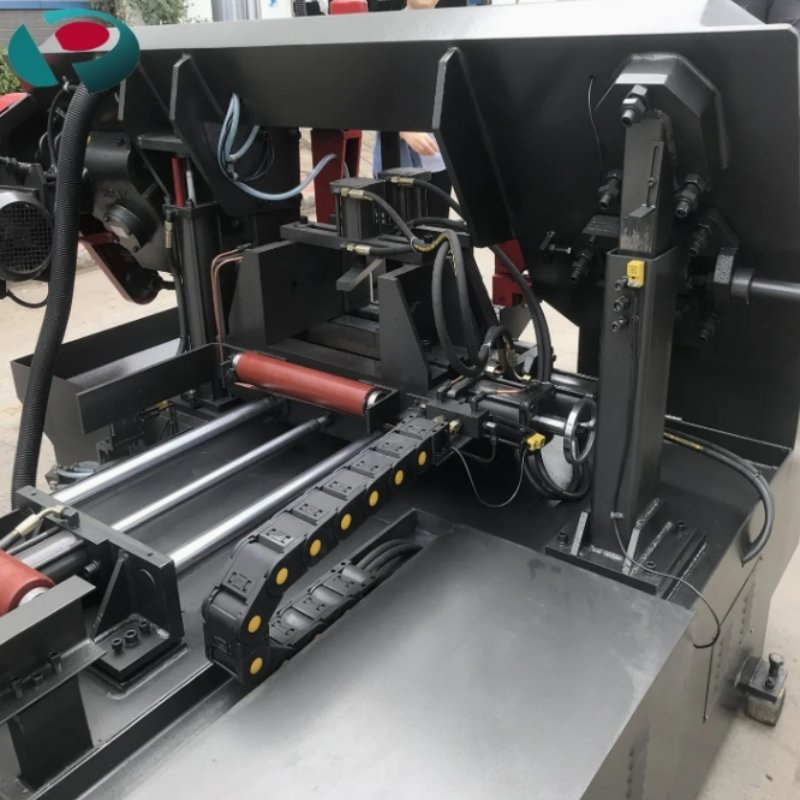

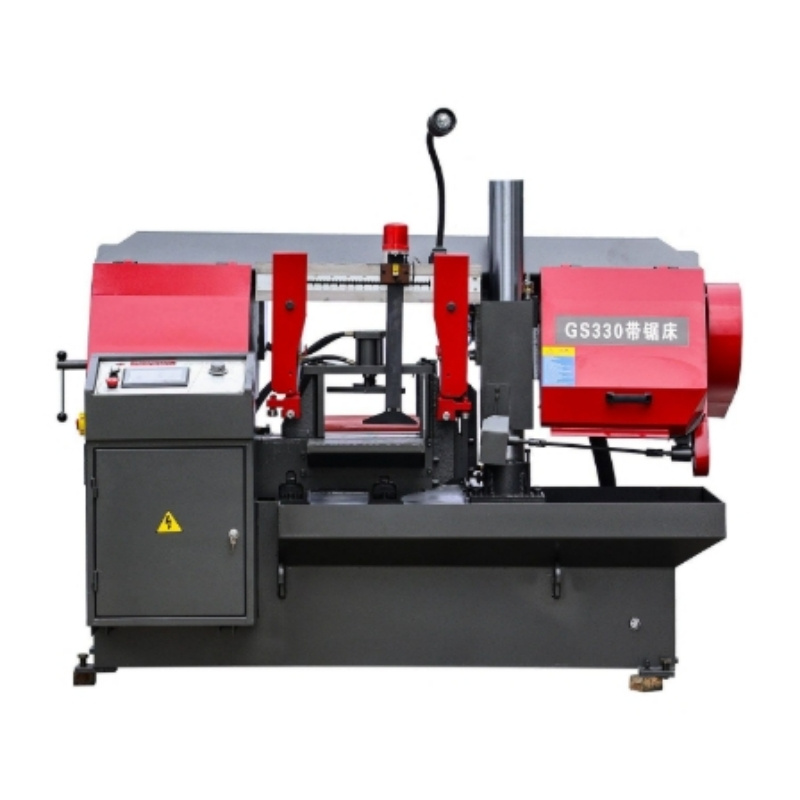

GS330 Hardness Metal Precision Cutting CNC Saw Machine

GS330Fully Automatic Sawing Machine- Performance Features Overview
1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
GS330
Brand:
JEPPS

Product Description

GS330

1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes

MODEL		GS 330
Maximum Cutting Capacity(mm)	round
	rectangular
	Bundle cutting
Drive Capacity(kw)	Main Motor
	Hydraulic Motor
	Coolant Pump
Blade Speed		40/60/80m/min by cone pulley(20-100m/min by inverter is optional)
Blade Size		4115x34x1.1mm
Volume of hydraulic oil tank		65L
Volume of water tank		40L
Work piece Clamping		Hydraulic Vise
Blade Tension		Manual(hydraulic optional)
Main Drive		Worm wheel Drive
feeding mode		Roller feeding
Table Height		650mm
Machine Size (LxWxH)		1900x1600x1500mm
Loading weight(kg)		2400kg
Machine Weight (kg)		1600
