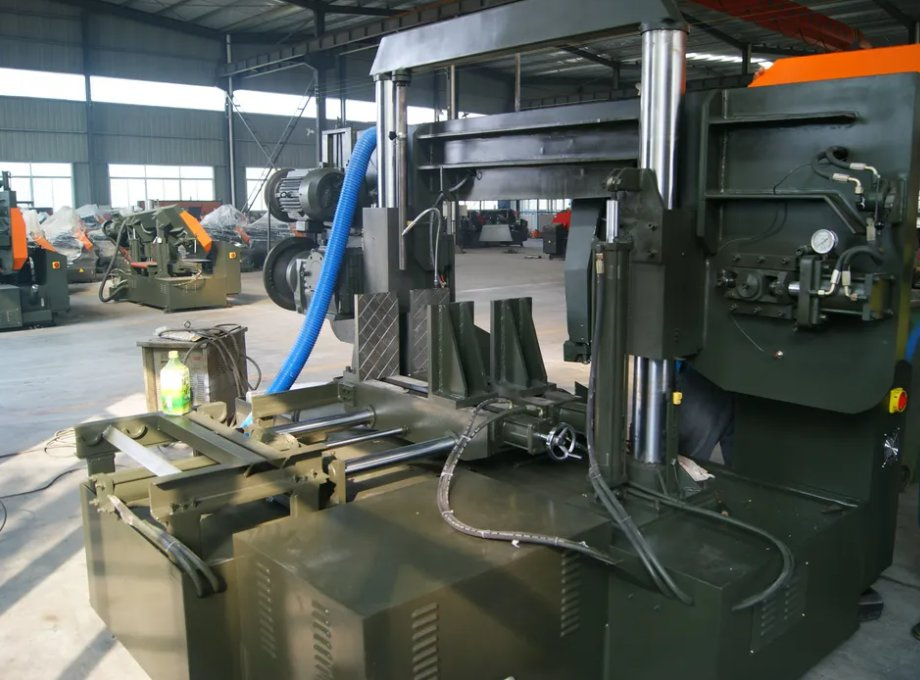

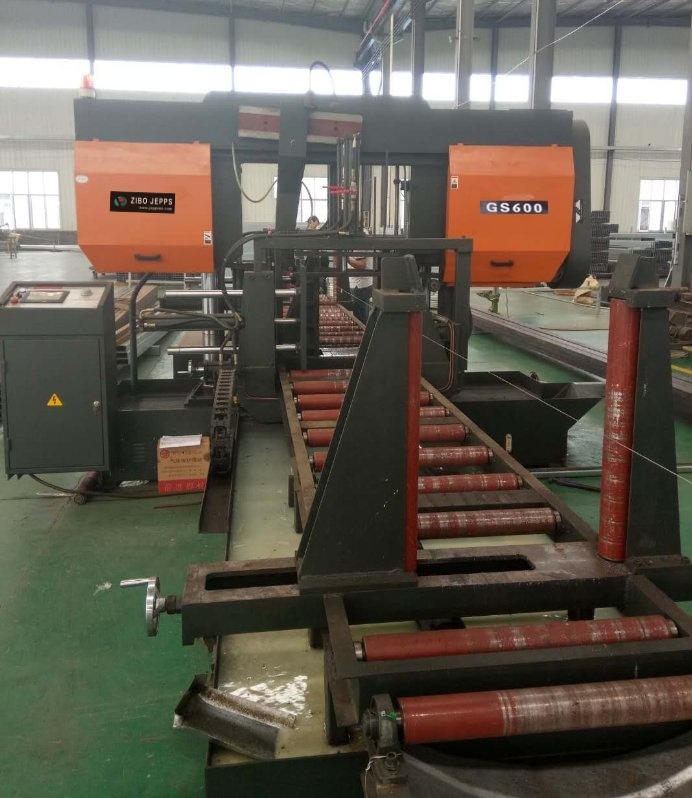

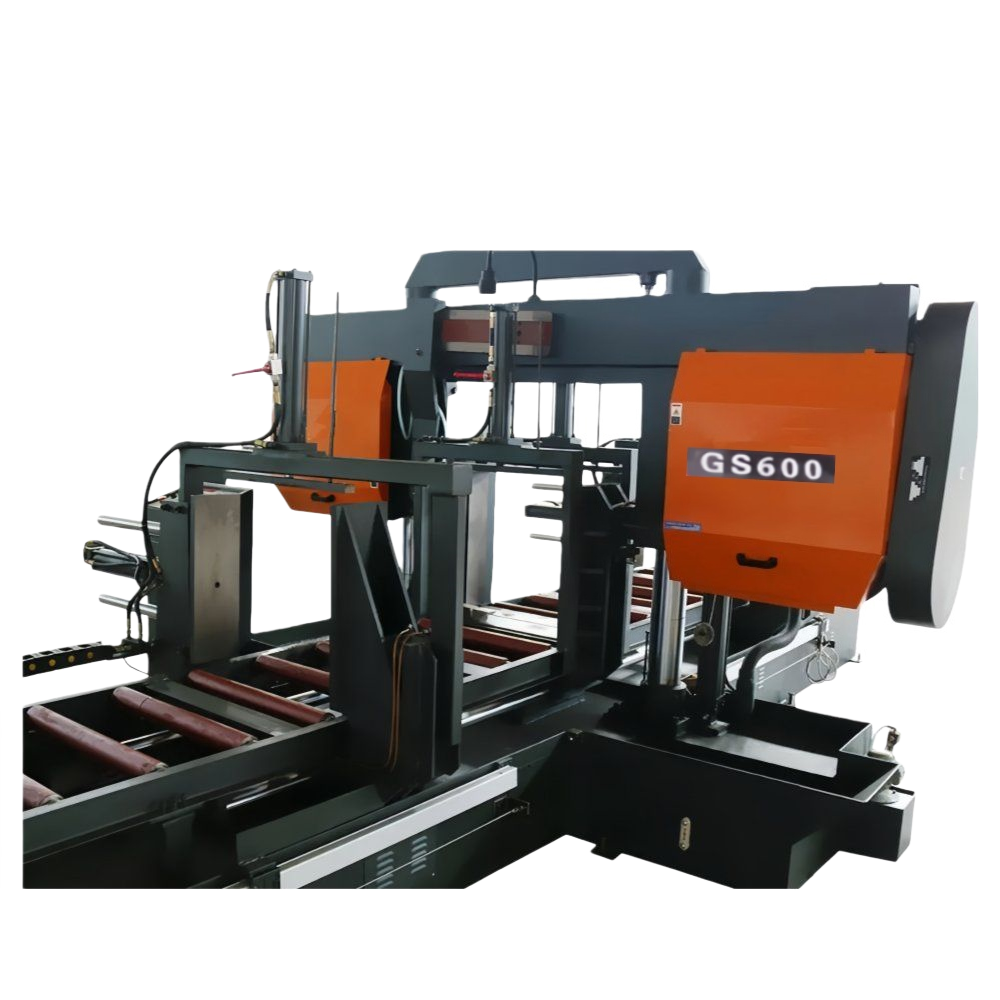

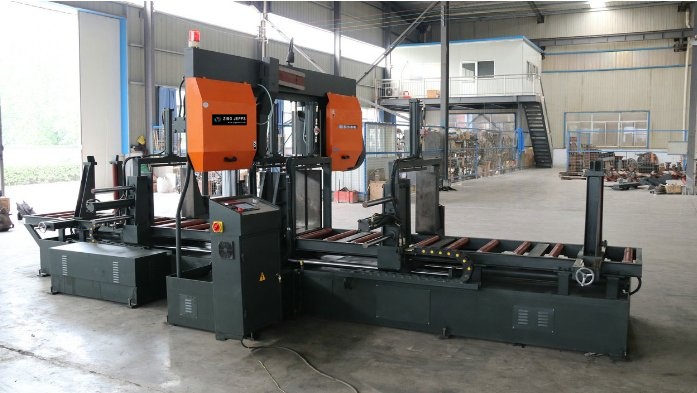

GS600 Superb Machine Automatic CNC Band Saw Machine Metal Cutting

GS600 Fully Automatic Sawing Machine- Performance Features Overview
1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
GS600
Brand:
JEPPS

Product Description

GS600-1

Horizontal Automated Material Feeding and Measuring Band Saw GS600

Fully Semi Auto CNC Ferrous Non-ferrous Iron Carbon Steel Stainless steel Metal Alloy Aluminum Cutting Horizontal Vertical Circular Band Saw Sawing Machine is designed for cutting various ferrous material like carbon steel, low alloy steel, special alloy, acid resisting stainless steel, and non-ferrous material like copper,aluminum, glass fiber reinforced plastics.

Project	unit	GS600
Maximum sawing capacity	mm	RoundΦ600, Square 600*600
main motor power	kw	5.5
Hydraulic motor power	kw	1.5
Cooling motor power	kw	0.12
Band speed	m/min	25/36/54/75m/min(speed adjustment)
Saw band specification	mm	6300411.3
Way of working	mm	Hydraulic automatic clamping
Saw blade tightening method	rpm	Manual
Machine weight	kg	3500
Dimensions (length, width, height)	mm	3100x3000x2000mm
