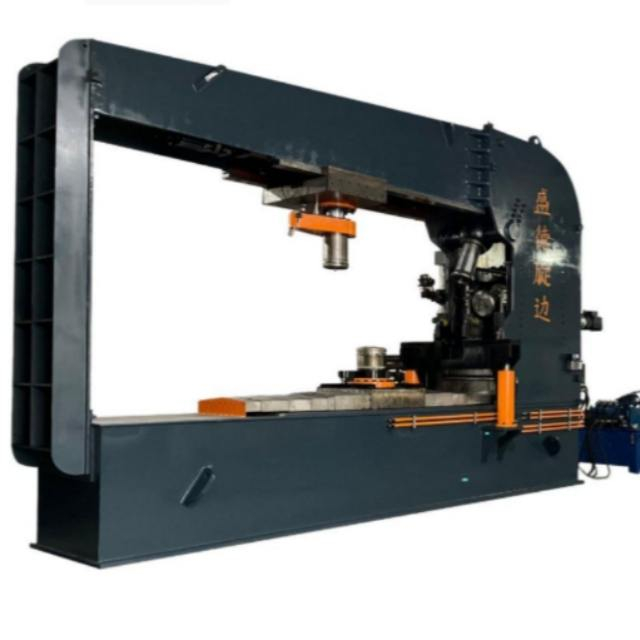

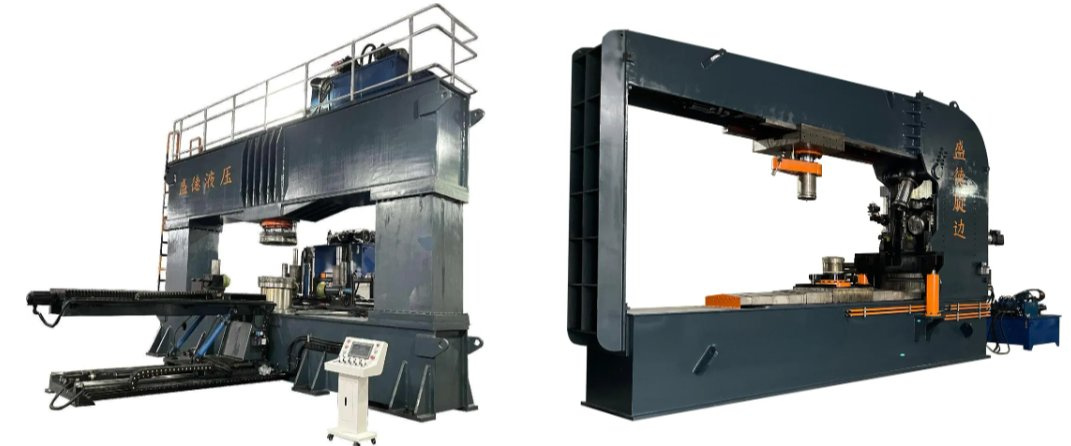

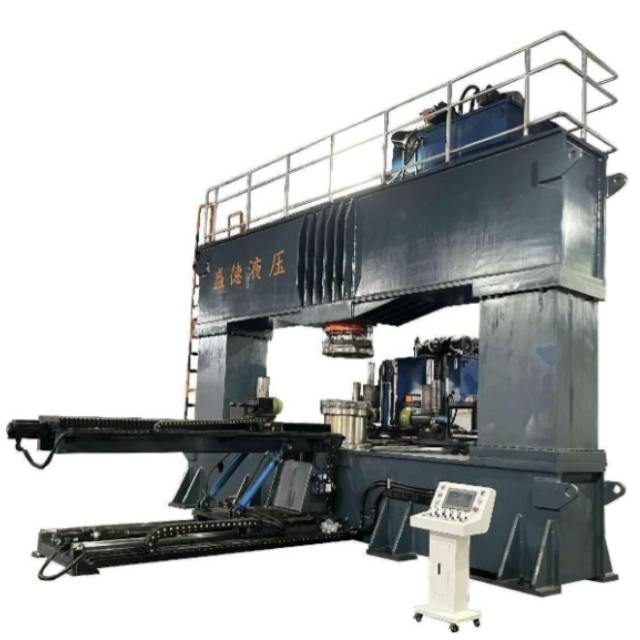

SD-FTXB-2500-A Head Spinning Machine

The Small Economical Metal Spinning Machine is designed for small workshops, prototyping, and low-to-medium volume production. Its compact structure saves floor space while delivering reliable performance for shaping various thin metal sheets into cylindrical, conical, or curved forms. With an easy-to-operate interface and cost-effective configuration, this machine helps businesses enter metal spinning production without large capital outlay. It supports materials such as aluminum, copper, stainless steel, and mild steel, making it suitable for manufacturing lampshades, reflectors, cookware, decorative items, and industrial components.

Color:	Custom Made
Size:	Custom Made
Availability:

Quantity:



Inquire Add to Basket 微信商城

Model:
SD-FTXB-2500-A
Brand:
JEPPS

Product Description

Processed Product Display

Features

1. Full CNC control, only need to call the preset program to realize the edge spinning operation.

2. The precise control of the movement accuracy of each axis by the servo motor ensures high diameter accuracy and excellent consistency in product processing.

3. The equipped turning device can not only complete turning operations, but also has the ability to chamfer the workpiece.

4. In order to ensure the smooth installation and disassembly of the mold, the mold installation rack needs to be properly configured to improve operating efficiency and convenience.

5. Configure workpiece loading bracket

6. The equipment has a one-button start function and is easy to operate. Only one operator can easily manage two machines, thus significantly reducing labor costs and improving work efficiency.

型号 model	直径(mm) diameter	长度(mm) length	厚度mm(不锈钢） Thickness (Stainless steel)
SD-FTXB-2500-A	2500	1000/ 1500	12/20/30
SD-FTXB-4000-A	4000	1000/ 1500	12/20/30
SD-FTXB-6000-A	6000	1000/2000	12/20/30
SD-FTXB-8000-A	8000	1000/2500	12/20/30
SD-FTXB-10000-A	10000	1000/2500	12/20/30

Applications / Uses

1. Used to manufacture critical components of pressure vessels—heads (e.g., elliptical, dished, spherical heads)—ensuring airtightness and structural strength under high pressure, temperature, or corrosive conditions.

2. Supplies customized heads for chemical reactors, storage tanks, boilers, heat exchangers, etc., meeting special process requirements such as acid/alkali resistance, high temperature tolerance, and high-pressure resistance.

3. Produces sanitary-compliant heads (e.g., stainless steel) for food storage tanks, fermentation tanks, pharmaceutical reactors, etc., ensuring no hygiene dead corners, easy cleaning, and compliance with FDA/GMP standards.

4. Spins carbon steel, stainless steel, aluminum alloy, and other metal sheets into shape to manufacture non-standard heads or irregular parts, catering to personalized needs in machinery, environmental protection, shipbuilding, and other industries.

5. Supports spinning of large-diameter (e.g., over 5 meters) and thick-walled heads for large engineering structures like wind turbine tower end caps and nuclear power equipment shells.

Other Product

旋压机翻边机定制非标成型设备-3 定制非标成型设备-2

What do we offer?

Like almost all metal spinning machine manufacturers, we design and produce a range of spinning machines with different main parameters to meet customer needs. These spinning machines can save labor costs and improve the quality of the final product. They can process materials such as carbon steel, stainless steel, aluminum, copper, and brass of specific thicknesses. The PLC system controls the operation accuracy without operator intervention. We offer powerful CNC metal spinning machines equipped with multiple tools and optional additional accessories. Such a tool set is sufficient to complete various processes such as trimming, rolling, and flanging. A variety of shapes can be processed, such as cylinders, rings, cones, hemispheres, and parabolas. We also offer customization options. Product weights range from 600 kg to 4000 kg.

This metal processing method is both simple and complex. Spinning is a process that can only be accomplished with carefully designed machines. The spinning machines we offer allow you to easily achieve fine processing results. If you want to buy the right spinning machine at the best price, please consider our metal spinning machines on special offer.
