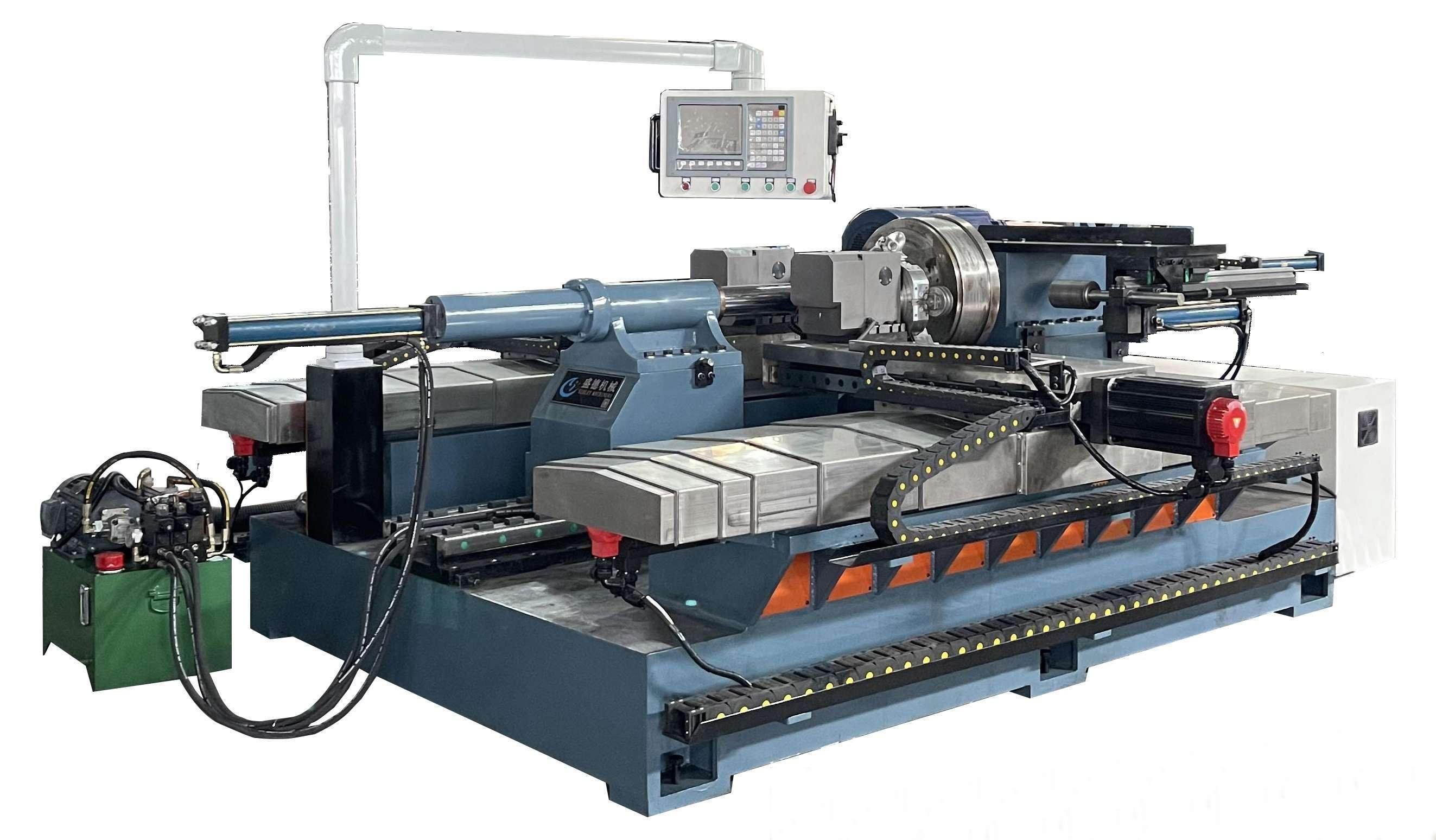

SD-XY-800-A
JEPPS
1.1Processed Product Display
型号 model | 直径(mm) diameter | 长度(mm) length | 厚度mm(碳钢） Thickness (carbon steel) |
SD-XY-400-A | 400 | 500 | 4 |
SD-XY-600-A | 600 | 500 | 4 |
SD-XY-800-A | 800 | 500 | 4 |
SD-XY-1200-A | 1200 | 500 | 4 |
SD-XY-1500-A | 1500 | 600 | 6 |
SD-XY-2000-A | 2000 | 600 | 6 |
1.2Applications / Uses
1. Specifically designed for spinning forming of critical components of pressure vessels, storage tanks, and reactors—heads (e.g., elliptical, dished, spherical heads). Through precise single-wheel pressure application, it processes metal sheets (carbon steel, stainless steel, aluminum alloy, etc.) into heads with design curvature, ensuring airtightness and structural strength under high pressure, temperature, or corrosive conditions.
2. Suitable for processing parts with axisymmetric complex curved surfaces, such as fan impellers, lampshade reflectors, satellite antenna parabolic surfaces, and rocket engine combustion chamber shells. Single-wheel spinning enables continuous and uniform plastic deformation, ensuring surface accuracy and smoothness (Ra≤1.6μm).
3. For forming thin-walled (thickness ≤3mm) or ultra-thin-walled (thickness ≤1mm) metal parts, single-wheel spinning uses low-pressure, high-speed parameters to reduce material springback and cracking risks, achieving high-precision and high-efficiency manufacturing (e.g., stainless steel tableware, electronic component housings).
4. Compatible with various metal materials, including carbon steel, alloy steel, stainless steel, aluminum alloy, copper and copper alloys, titanium alloy, etc. By adjusting spinning speed, feed rate, and die profile, it meets the plastic deformation requirements of different materials, realizing "one machine for multiple uses."
5. Compared to multi-wheel spinning machines, the single-wheel CNC spinning machine has a simple structure, low mold change cost, and flexible programming, making it suitable for small-batch, multi-variety, or customized part production (e.g., scientific research equipment components, artistic metal products, special tooling fixtures), shortening delivery cycles.
6. Used for repairing metal parts (e.g., worn heads, deformed pipe ends) by spinning to restore their original dimensions and shape, extending service life, and reducing enterprise equipment maintenance costs.
Other Product
What do we offer?
Like almost all metal spinning machine manufacturers, we design and produce a range of spinning machines with different main parameters to meet customer needs. These spinning machines can save labor costs and improve the quality of the final product. They can process materials such as carbon steel, stainless steel, aluminum, copper, and brass of specific thicknesses. The PLC system controls the operation accuracy without operator intervention. We offer powerful CNC metal spinning machines equipped with multiple tools and optional additional accessories. Such a tool set is sufficient to complete various processes such as trimming, rolling, and flanging. A variety of shapes can be processed, such as cylinders, rings, cones, hemispheres, and parabolas. We also offer customization options. Product weights range from 600 kg to 4000 kg.
This metal processing method is both simple and complex. Spinning is a process that can only be accomplished with carefully designed machines. The spinning machines we offer allow you to easily achieve fine processing results. If you want to buy the right spinning machine at the best price, please consider our metal spinning machines on special offer.
