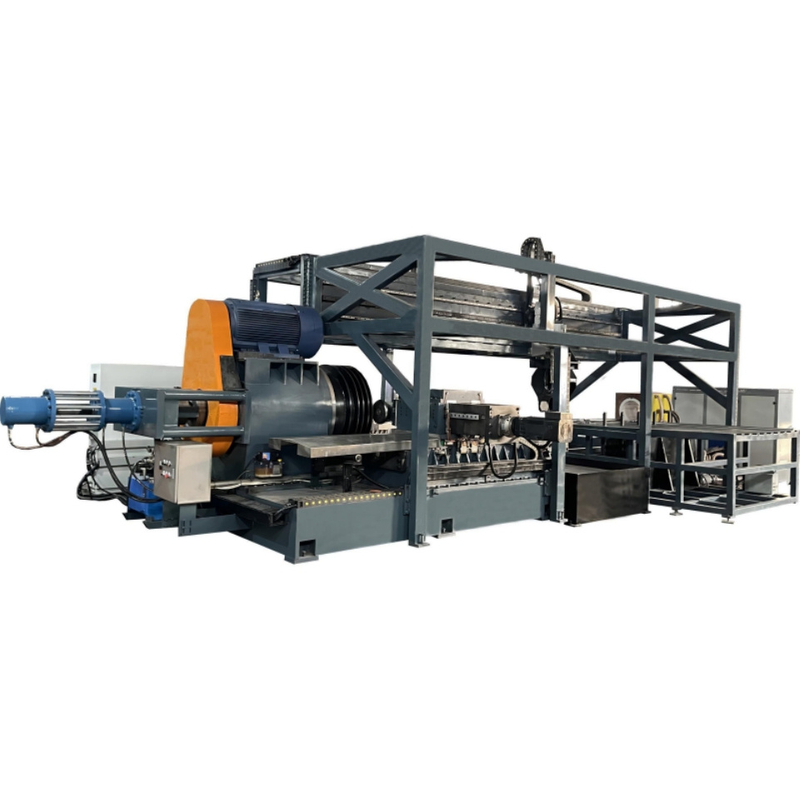

SD-GX-200 CNC pipe end forming machine

1.1Processed Product Display

Features

• Precise Necking/Expanding: Reduces (necking) or increases (expanding) the pipe end diameter through mold extrusion, processing special shapes like tapers and stepped forms.

• Flanging/Curling: Curls the pipe end edge inward (curling) or outward (flanging) to enhance end strength or facilitate connection.

• Sealing/Plug Forming: Flattens the pipe end or forms specific shapes (e.g., spherical, flat) to close the pipe end.

• Multi-step Forming: Supports multiple processing steps in one clamping (e.g., necking followed by curling), reducing process transfer time.

1.2 Applications / Uses

• Automotive Manufacturing: Processes exhaust pipes (variable-diameter pipes, muffler interfaces), fuel pipes, brake lines, air conditioning pipes, etc., ensuring precise connection between pipe ends and other components.

• Aerospace: Manufactures hydraulic system pipes, fuel pipes, oxygen cylinder interfaces, etc., meeting lightweight, high strength, and high sealing requirements.

• Furniture & Building Materials: Produces metal table/chair frames, shelf columns, guardrail handrails, decorative pipes, etc., combining aesthetic pipe ends with structural stability.

• Chemical & Energy: Processes high-pressure oil pipes, gas transmission pipes, storage tank inlet/outlet pipes, adapting to corrosion-resistant and high-pressure environments.

• Home Appliances & Sanitary Ware: Manufactures water heater inlet/outlet pipes, washing machine drain pipes, showerhead connecting pipes, etc., ensuring tight connections without leaks.

By writing a program to control the motion axis of the equipment, the pipe can be rotated and pressed to achieve precise pipe shape processing.

Other Product

What do we offer?

Like almost all metal spinning machine manufacturers, we design and produce a range of spinning machines with different main parameters to meet customer needs. These spinning machines can save labor costs and improve the quality of the final product. They can process materials such as carbon steel, stainless steel, aluminum, copper, and brass of specific thicknesses. The PLC system controls the operation accuracy without operator intervention. We offer powerful CNC metal spinning machines equipped with multiple tools and optional additional accessories. Such a tool set is sufficient to complete various processes such as trimming, rolling, and flanging. A variety of shapes can be processed, such as cylinders, rings, cones, hemispheres, and parabolas. We also offer customization options. Product weights range from 600 kg to 4000 kg.

This metal processing method is both simple and complex. Spinning is a process that can only be accomplished with carefully designed machines. The spinning machines we offer allow you to easily achieve fine processing results. If you want to buy the right spinning machine at the best price, please consider our metal spinning machines on special offer.
