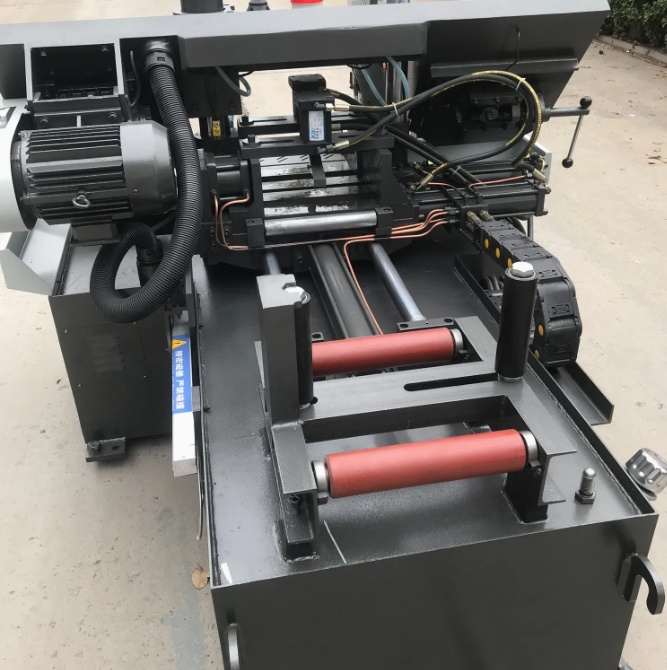

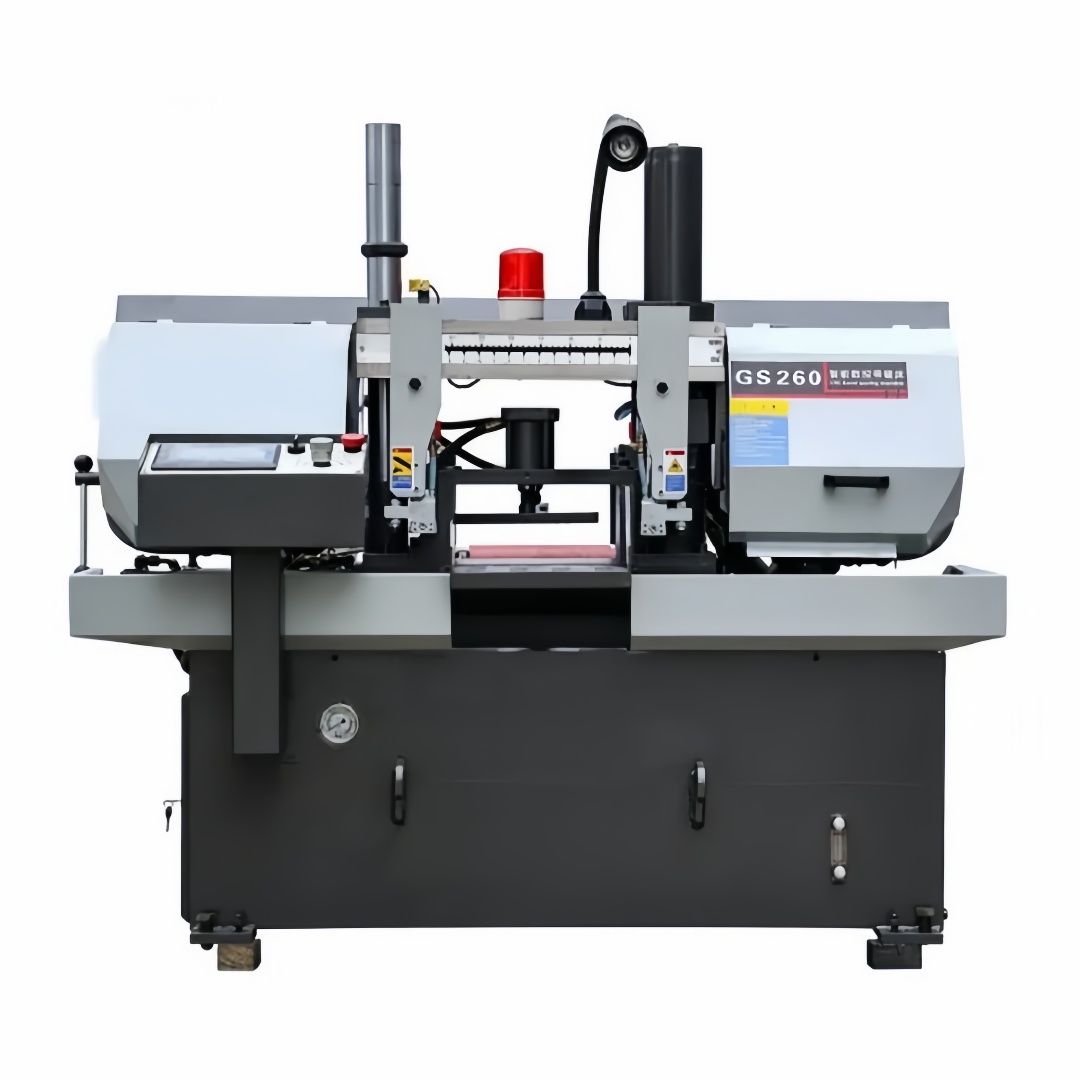

GS260 Fully Automatic CNC Sawing Machine

GS260 Fully Automatic Sawing Machine- Performance Features Overview
1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
GS400
Brand:
JEPPS

Product Description

GS260

1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes

GS260
Maximum sawing capacity	Ф260mm 260×260mm
Minimum sawing capacity	Ф0mm 0×0mm
Bundle sawing	Maximum W160mm×H80mm
main motor power	2.2kw
Hydraulic motor power	0.75kw
Water pump motor power	0.09kw
Saw band speed	40/60/80m/min
Saw band specification	3152270.9mm
Work step up	Hydraulic
Saw band tensioning method	Manual
Machine size	1600×1600×1450mm
Machine weight	1100KG
