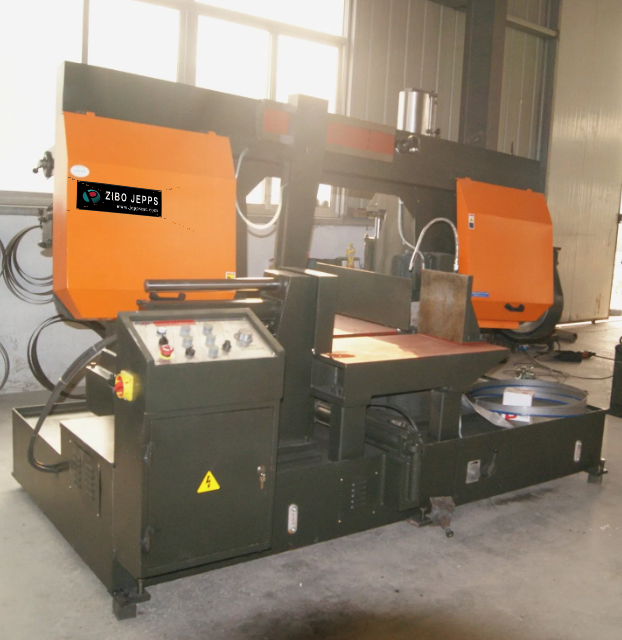

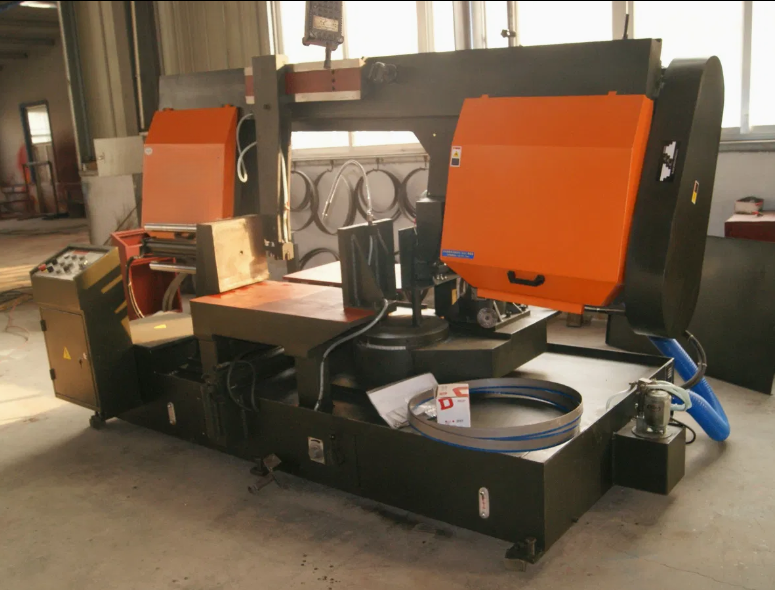

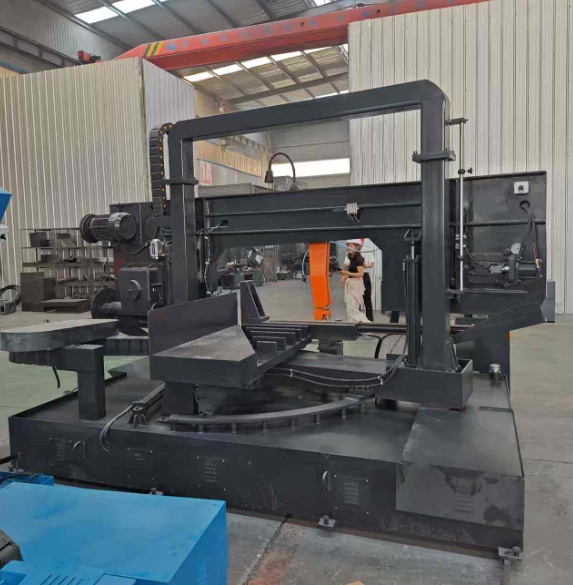

G-500 Double column Mitering Cutting Aron

G-500 product features
1.This machine adopts and absorbs the performance characteristics of similar foreign sawing machines, hydraulic balance cylinder, high-strength balance spring and hydraulic stepless speed regulation.
2.The material cut by the sawing machine does not move, and the saw frame can rotate 0-45 degrees forward or 0 to 60 degrees in the reverse direction, which is suitable for sawing various angle steels, round steels, rectangular pipes, etc. with angle requirements.
3.The bed at the clamping part can move forward and backward to facilitate clamping of materials.
This machine can also be equipped with CNC cornering and automatic feeding system to achieve automatic cutting.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
G-500
Brand:
JEPPS

Product Description

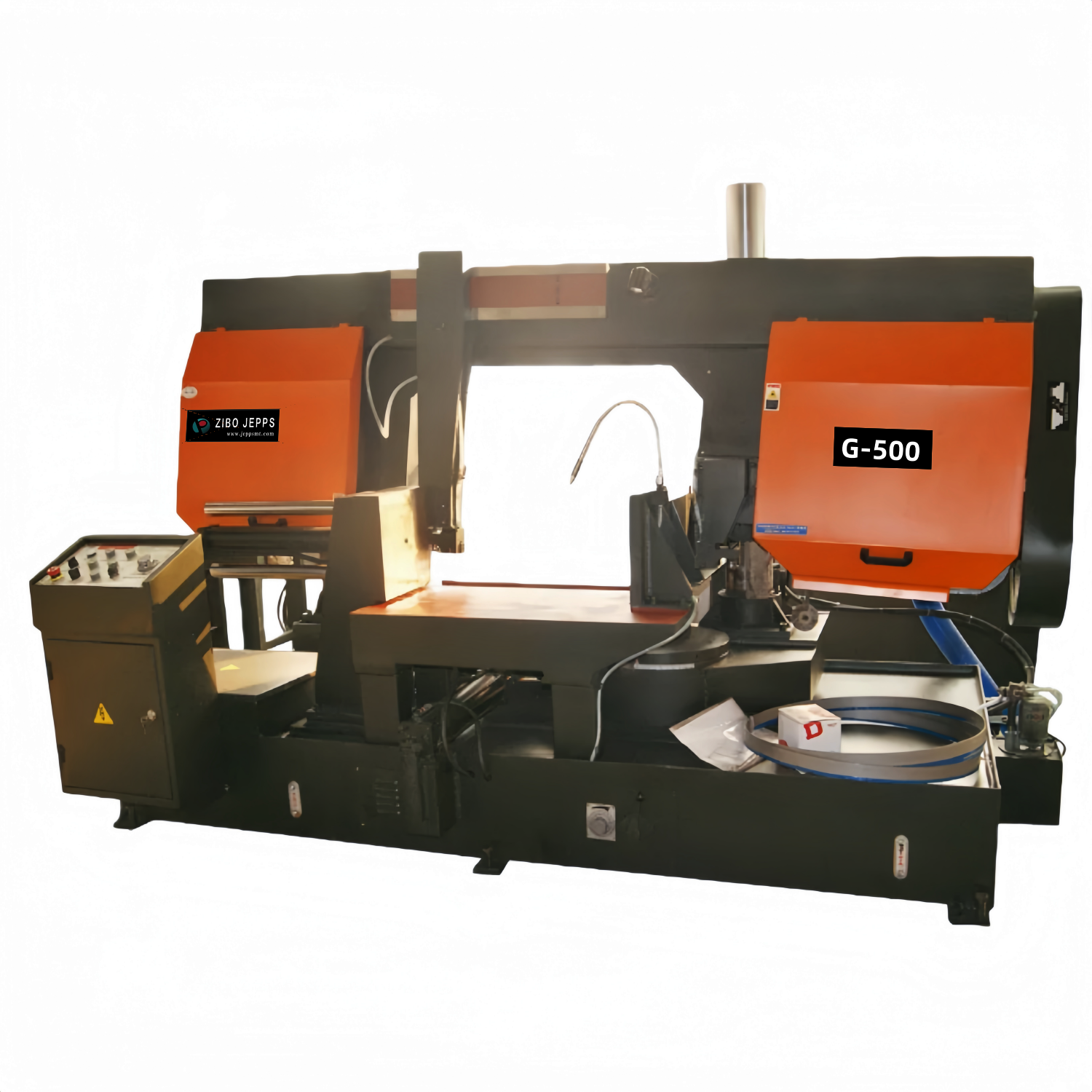

G-500-6

G-500 product features

1.This machine adopts and absorbs the performance characteristics of similar foreign sawing machines, hydraulic balance cylinder, high-strength balance spring and hydraulic stepless speed regulation.
2.The material cut by the sawing machine does not move, and the saw frame can rotate 0-45 degrees forward or 0 to 60 degrees in the reverse direction, which is suitable for sawing various angle steels, round steels, rectangular pipes, etc. with angle requirements.
3.The bed at the clamping part can move forward and backward to facilitate clamping of materials.
This machine can also be equipped with CNC cornering and automatic feeding system to achieve automatic cutting.

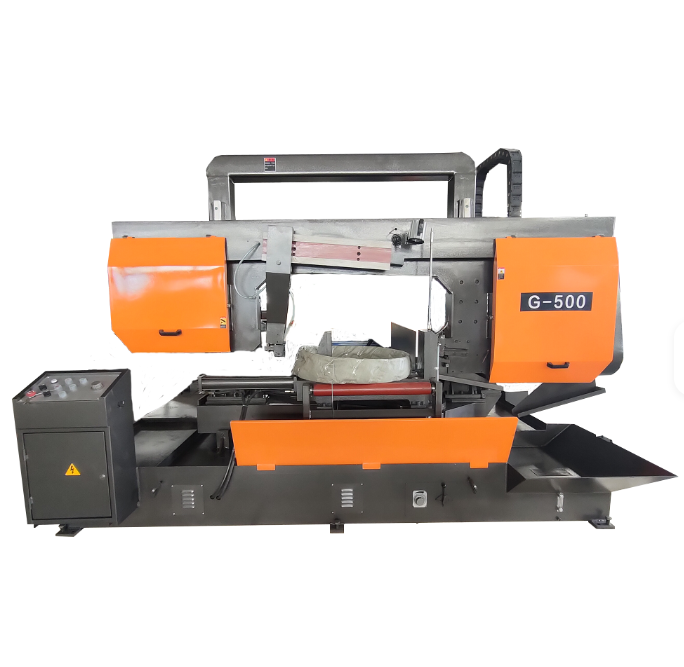

G-500-5

	G-500	G-600	G-700
Max cutting capacity	0 degree Round 500mm Rectangular 600WX500Hmm	0 degree Round 600mm Rectangular 700WX600Hmm	0 degree Round 700mm Rectangular 750WX700Hmm
Max cutting capacity	- 45 degree Round 500mm Rectangular 500 WX500Hmm	- 45 degree Round 600mm Rectangular 600 WX600Hmm	- 45 degree Round 700mm Rectangular 700 WX700Hmm
Angle	0 degree to - 45 degree	0 degree to - 45 degree	0 degree to - 45 degree
Blade speed	40/60/80 regulated by cone pulley	40/60/80 regulated by cone pulley	40/60/80 regulated by cone pulley
Blade size	5800X41X1.3	6800X41X1.3	7830X54X1.6
Main Motor Power	5.5KW	5.5KW	7.5KW
Hydraulic Motor power	0.75KW	1.5KW	2.2KW
Coolant Motor Power	0.09 KW	0.09 KW	0.37 KW
Working Clamping	Hydraulic type	Hydraulic type	Hydraulic type
Blade tension	Hydraulic Type	Hydraulic Type	Hydraulic Type
Material feeding type	Roller auxiliary feeding	Roller auxiliary feeding	Roller auxiliary feeding
Work bed Height	650mm	650mm	650mm
Net Weight	2200 Kg	3000 Kg	3000 Kg
Overall Dimension	2600L X 1600 W X 1650 H mm	3000L X 1600 W X 1750 H mm	3000L X 1600 W X 1750 H mm
