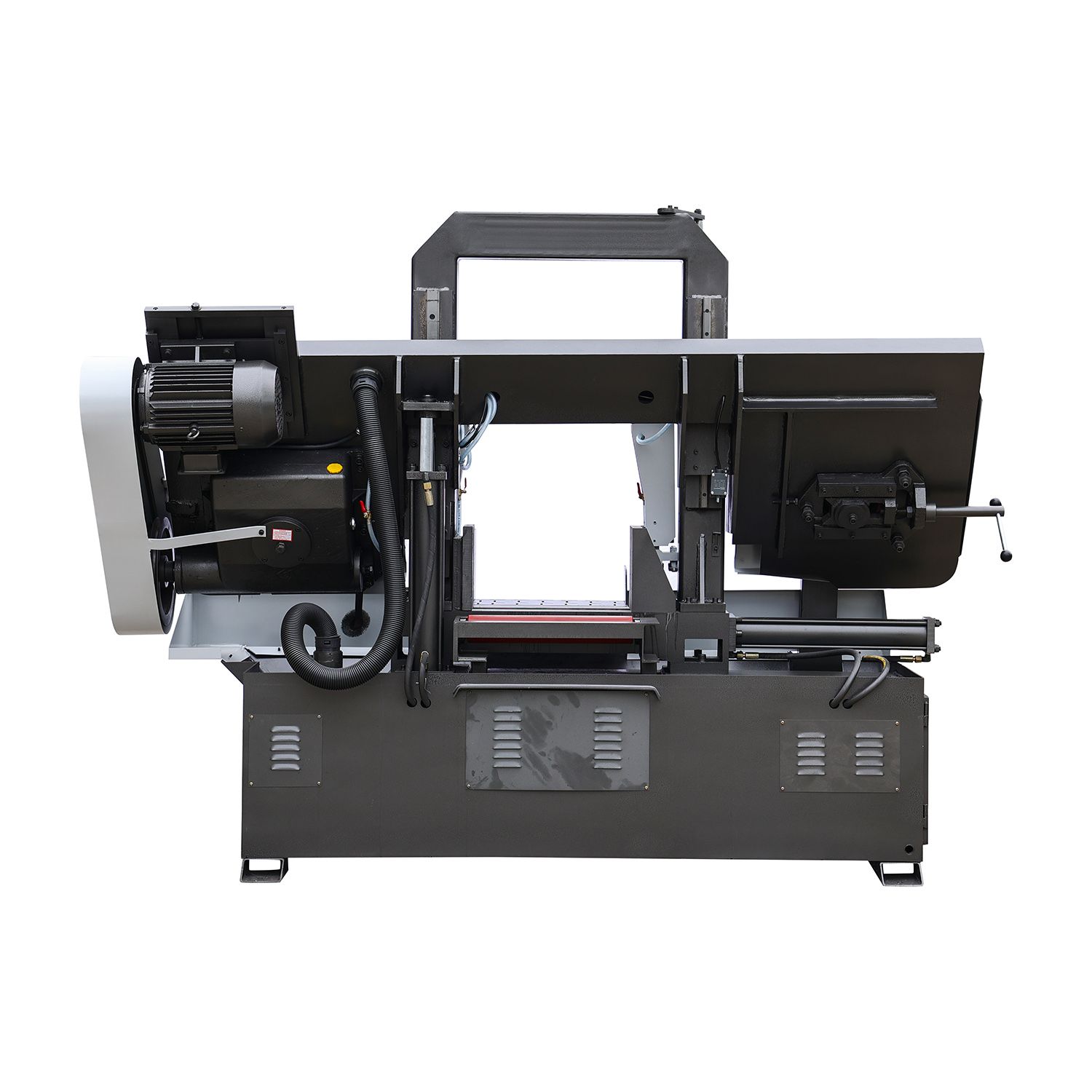

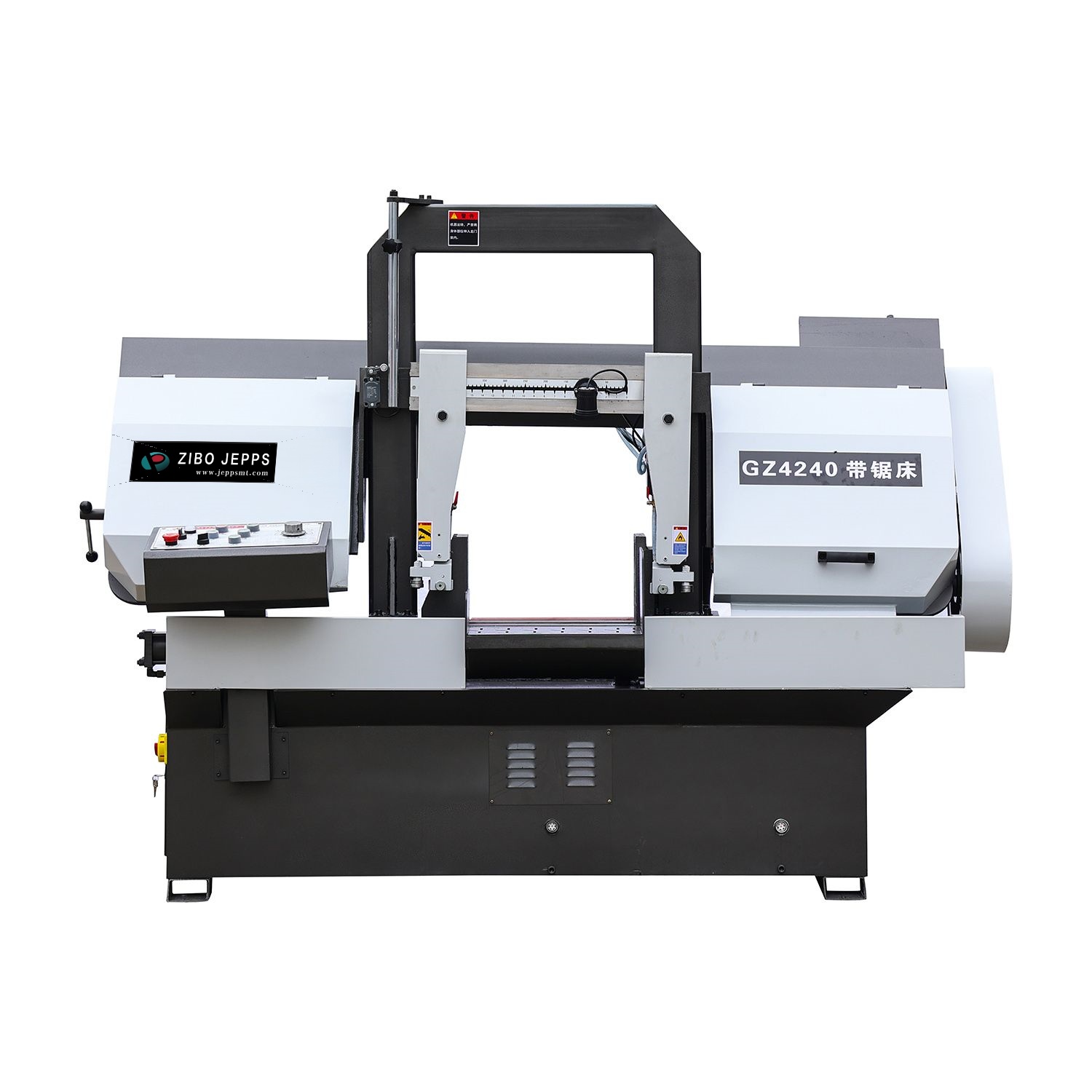

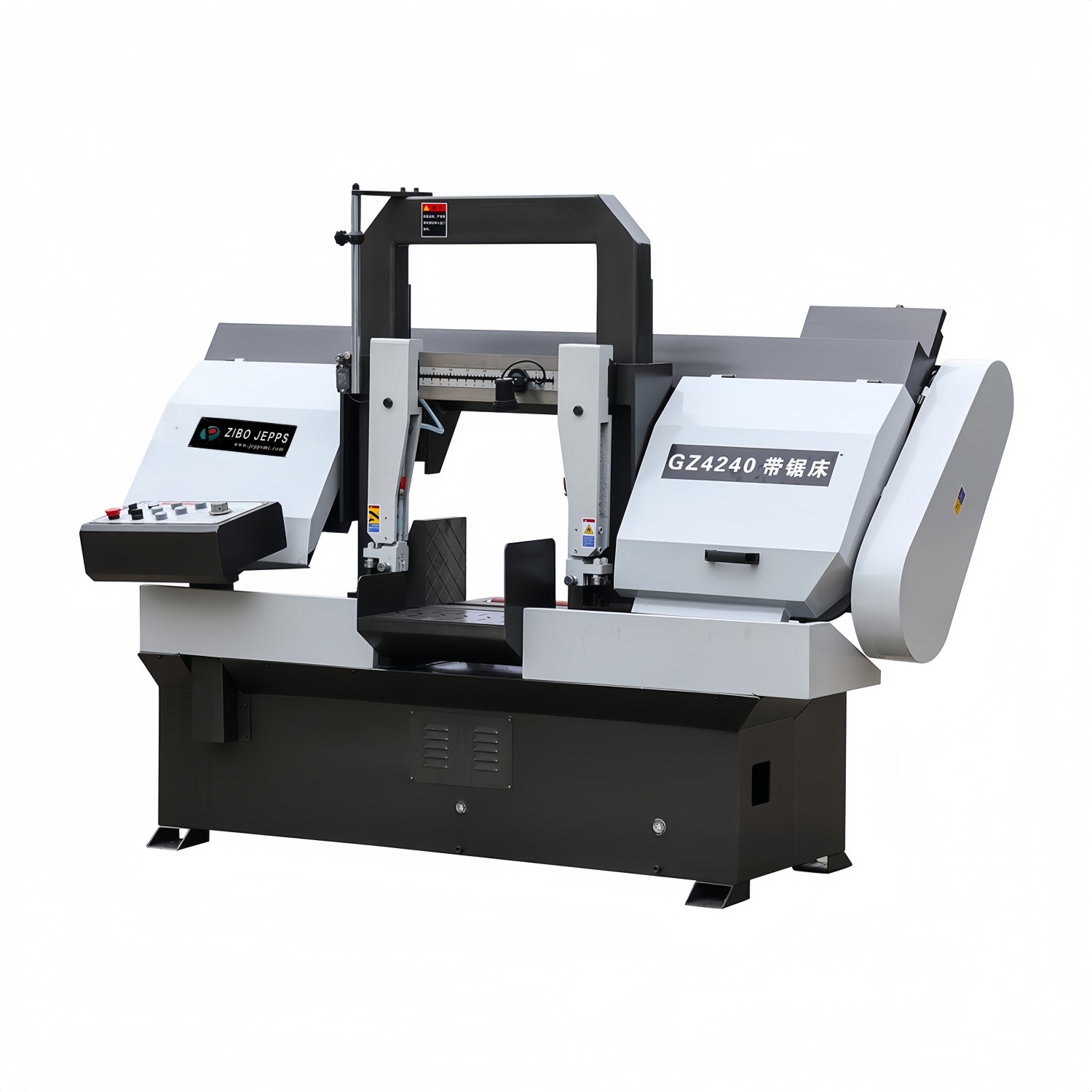

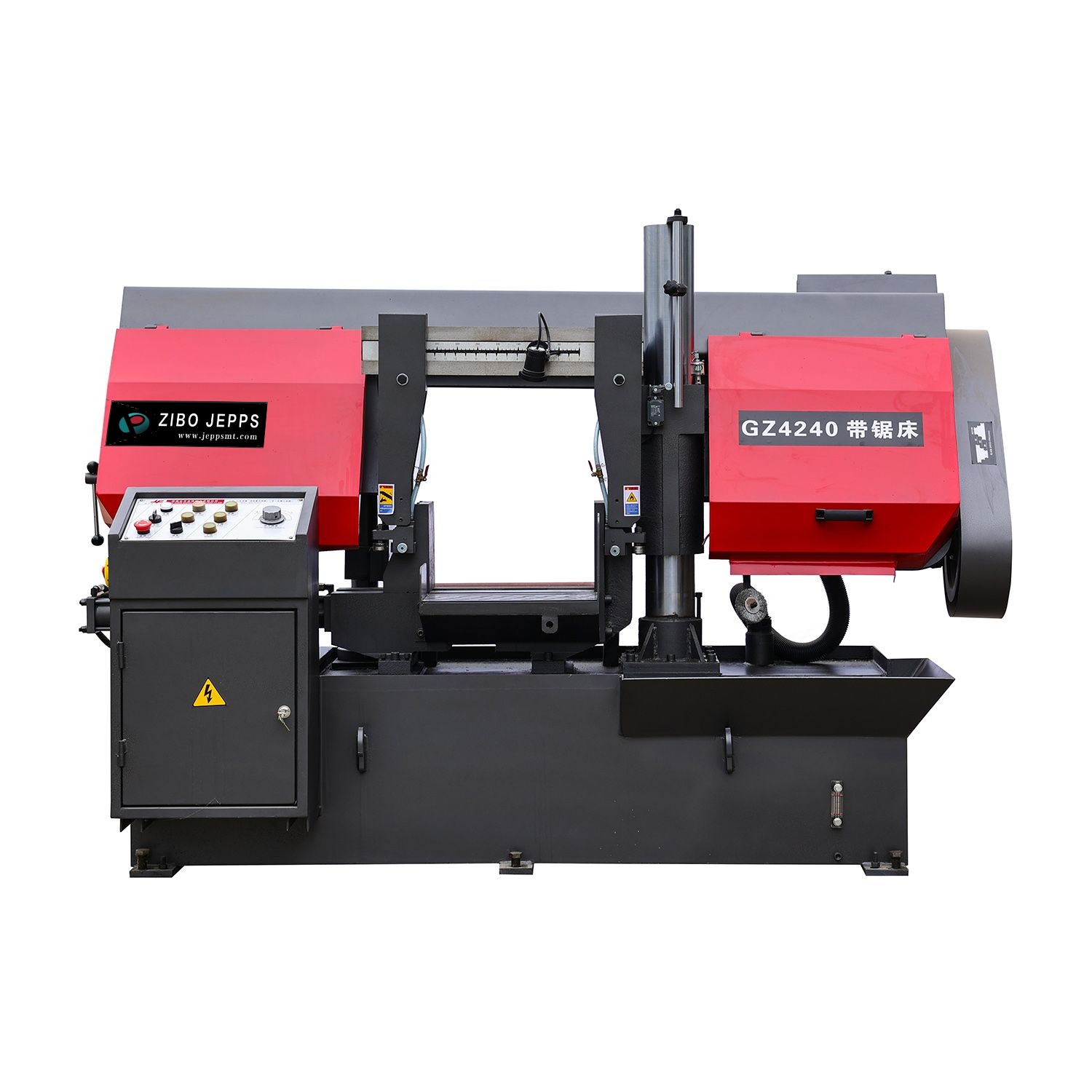

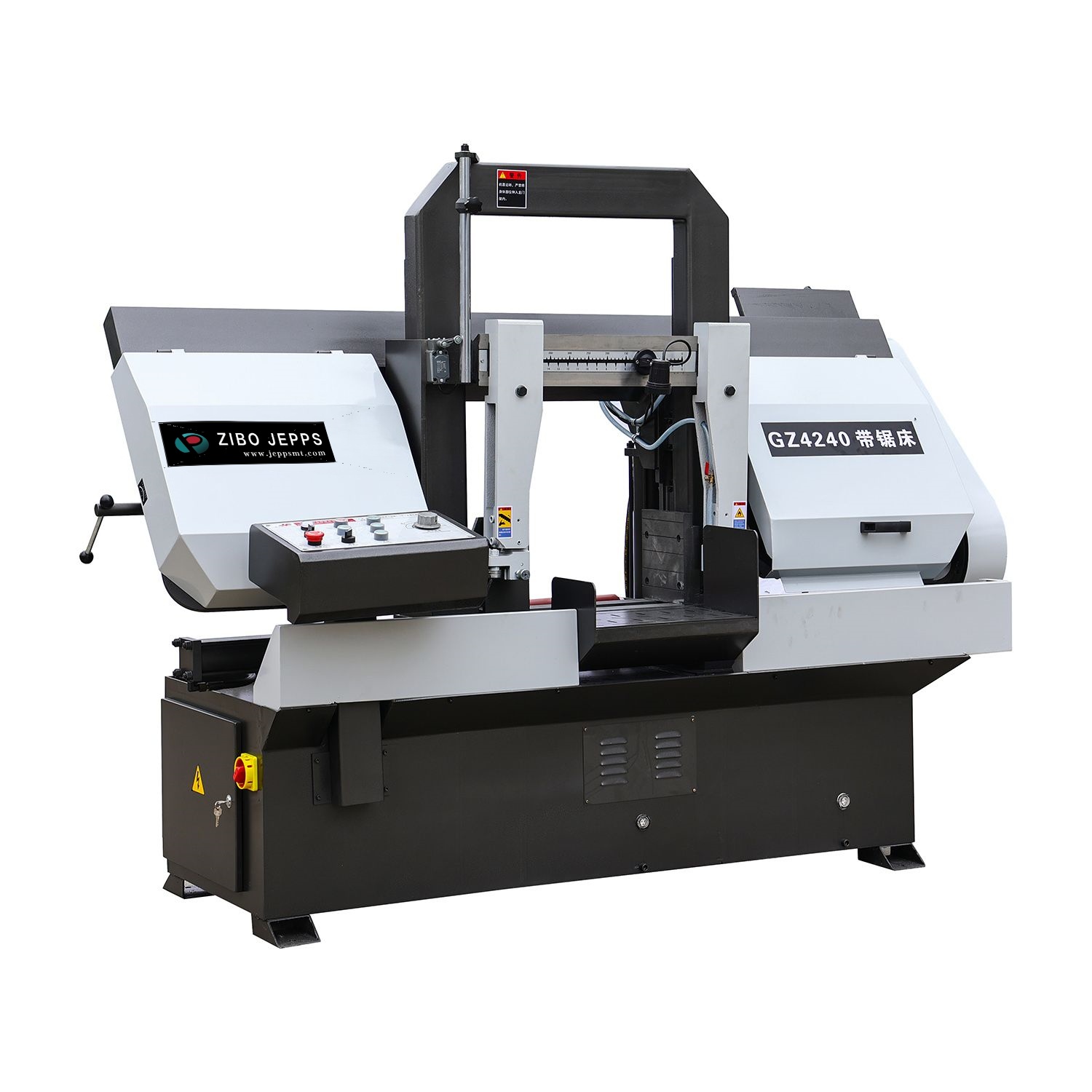

Gz4240 Metal Steel Bar Rebar Cutting Band Saw Machine

GZ4240 product features

1.Double-column structure to ensure guiding accuracy, stable and reliable sawing;
2.Hydraulic clamping makes it easy to tighten the material, and the sawed work piece does not loosen, avoiding pressure damage to the saw band and protecting the saw band;
3.Hydraulic clamping, sawing can be minimized, reducing material loss;
4.The steel brush removes chips, effectively cleaning the iron chips between the teeth, and prolongs the service life of the saw band.
5.The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration to ensure that the saw belt is not easy to break or pull the teeth.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
Gz4240
Brand:
JEPPS

Product Description

GZ4240-6 GZ4240 product features

1.Double-column structure to ensure guiding accuracy, stable and reliable sawing;
2.Hydraulic clamping makes it easy to tighten the material, and the sawed work piece does not loosen, avoiding pressure damage to the saw band and protecting the saw band;
3.Hydraulic clamping, sawing can be minimized, reducing material loss;
4.The steel brush removes chips, effectively cleaning the iron chips between the teeth, and prolongs the service life of the saw band.
5.The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration to ensure that the saw belt is not easy to break or pull the teeth.

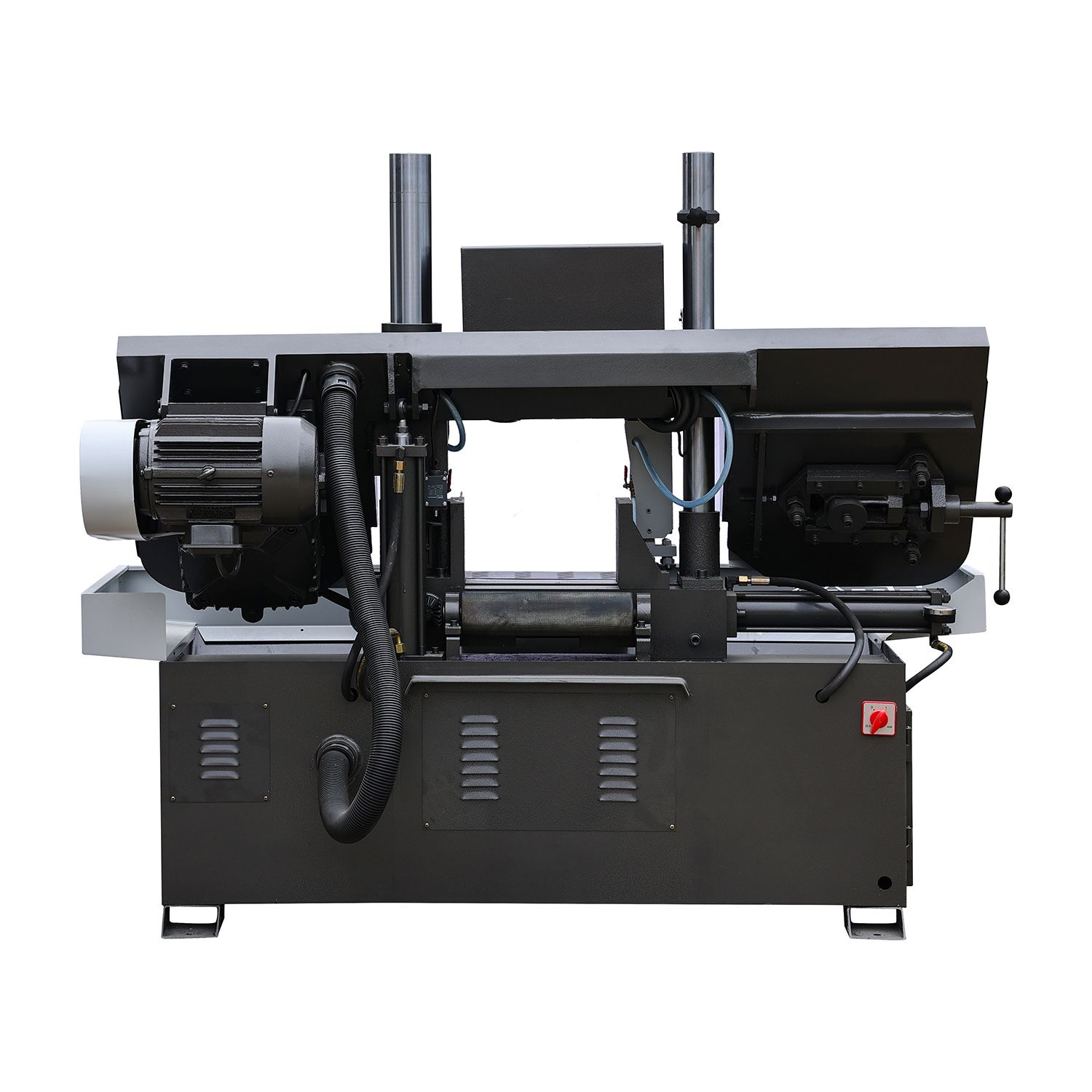

GZ4230-1

SPECIFICATIONS	Units	GZ4230	GZ4240	GZ4250	GZ4260
Cutting circular	mm	300	400	500	600
Cutting rectangular	mm	300*300	400*400	500*500	600*600
Blade speed	m/min	27/45/69	40/60/80	40/60/80	28/52/74/85
Blade size	mm	3505270.9	4570341.1	5370411.3	6300411.3
Main motor power	kw	3	4	4	5.5
Hydraulic motor power	kw	0.55	0.75	0.75	1.5
Coolant motor power	kw	0.04	0.09	0.09	0.09
Machine weight	kg	900	1000	1800	2700
Overall dimension	mm	195011001750	210011601850	2600x1200x1800	300014001850


锯床-5 锯床-1_副本锯床-4 包装，发货
