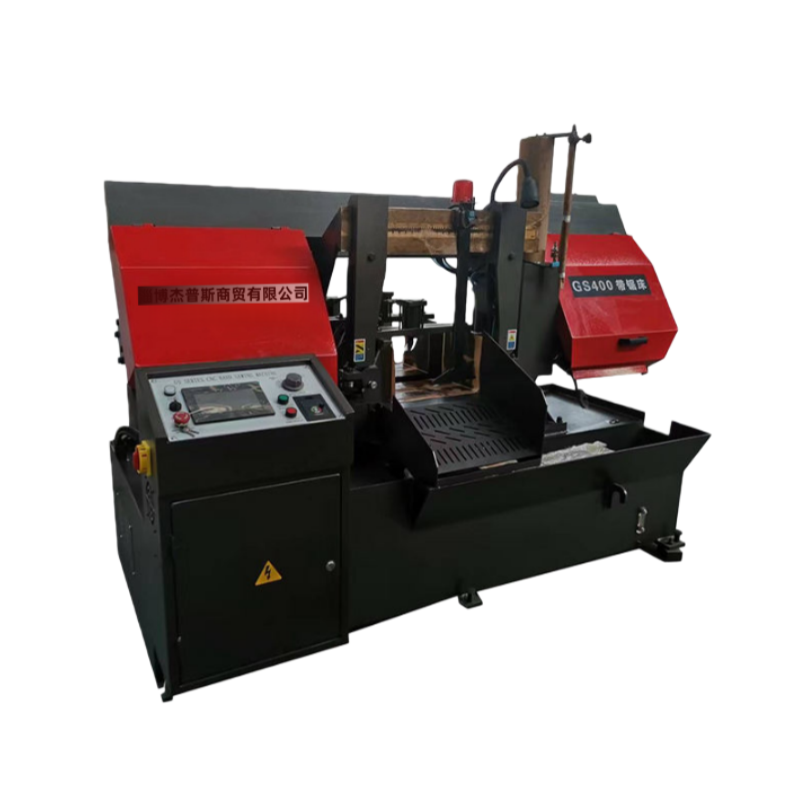

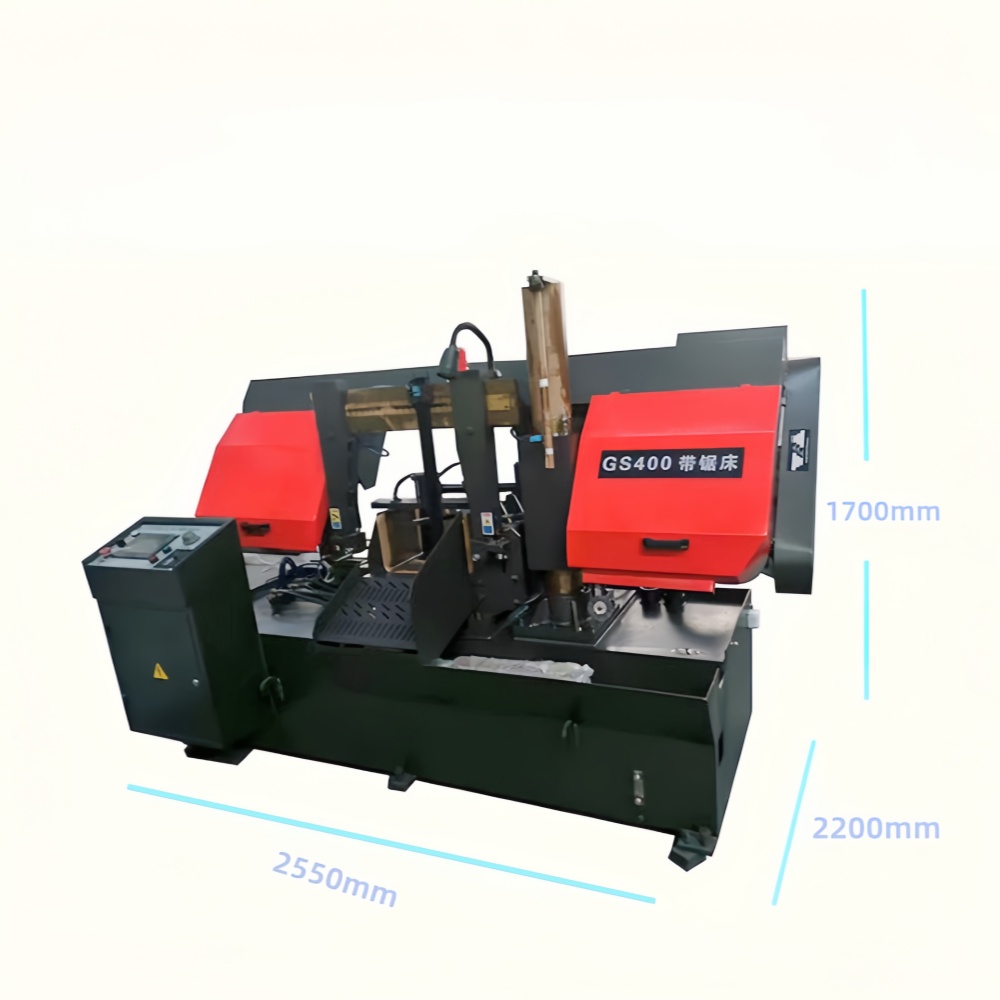

GS400 Fully Automatic CNC Sawing Machine

GS400 Fully Automatic Sawing Machine- Performance Features Overview
1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
GS400
Brand:
JEPPS

Product Description

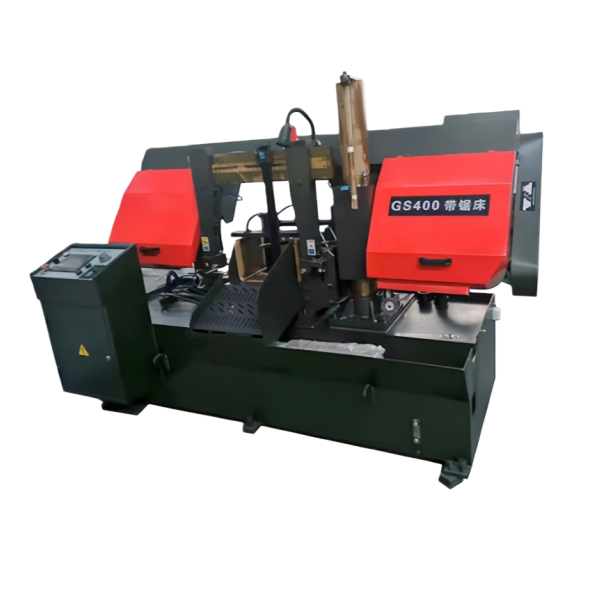

gs400-2_副本

1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes

Model	GS400 fully automatic CNC sawing machine
Maximum Cutting ability(mm)	Ø400mm,W400xH400mm
Main motor power(KW)	4.0KW 3 phase
Hydraulic motor power(KW)	0.75kw 3 phase
Cooling motor power (KW)	0.09kw 3 phase
Saw blade speed(m/min)	40/60/80 regulated by cone pulley(20-80 m/min regulated by inverter is optional)

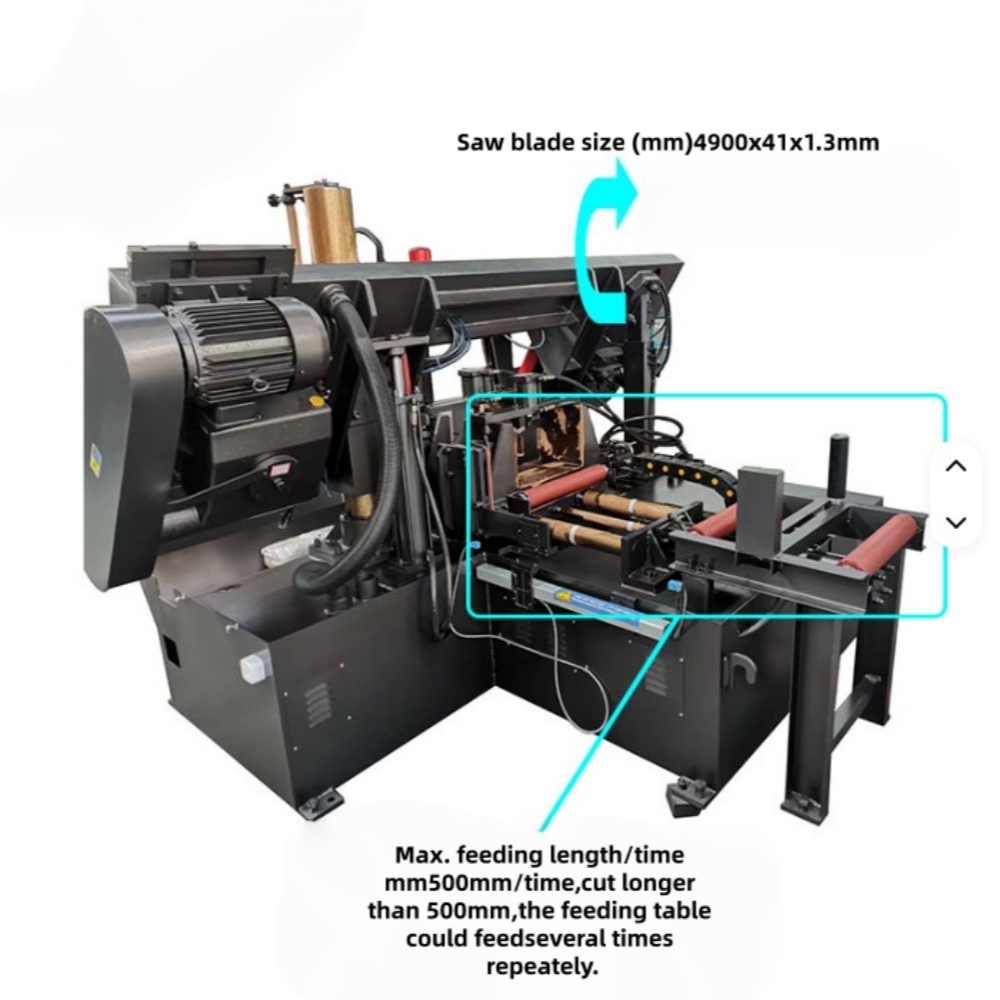

Saw blade size(mm)	4900411.3

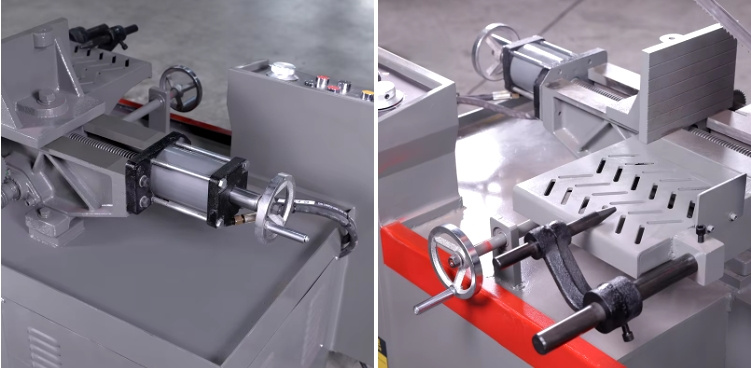

Work piece clamping	Hydraulic
Saw blade tension	Manual
Automatic workpiece feeding mode	Driven by hydraulic cylinder,length read by grating ruler
Maximum feeding length/time mm	Maximum feeding length is 500mm/time,if cut longer than 500mm,the feeding table could feed several times repeatedly
Optional configuration	1.saw blade speed:20-80m/min regulated by inverter 2.saw blade tension:hydraulic for GS330 and GS400 3.powered spiral chips conveyor 4.workpiece feeding driven by servo motor and guided by guide rail is optional
