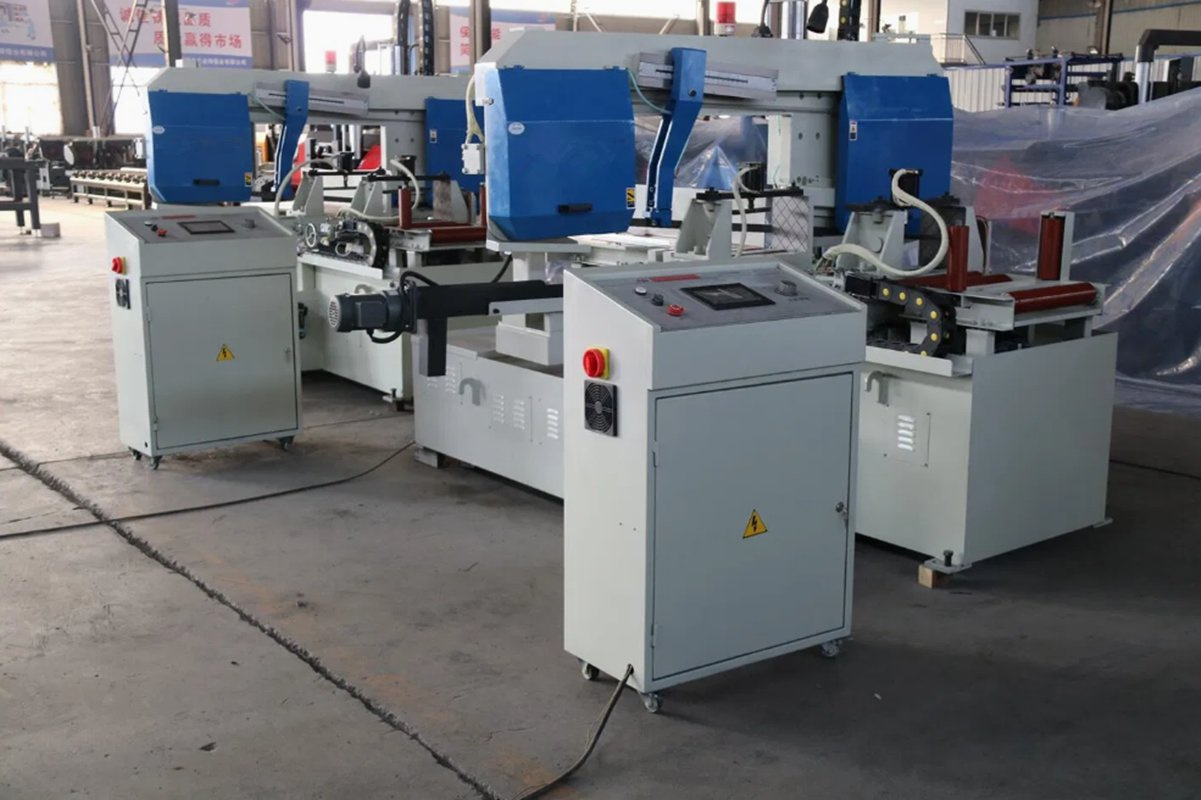

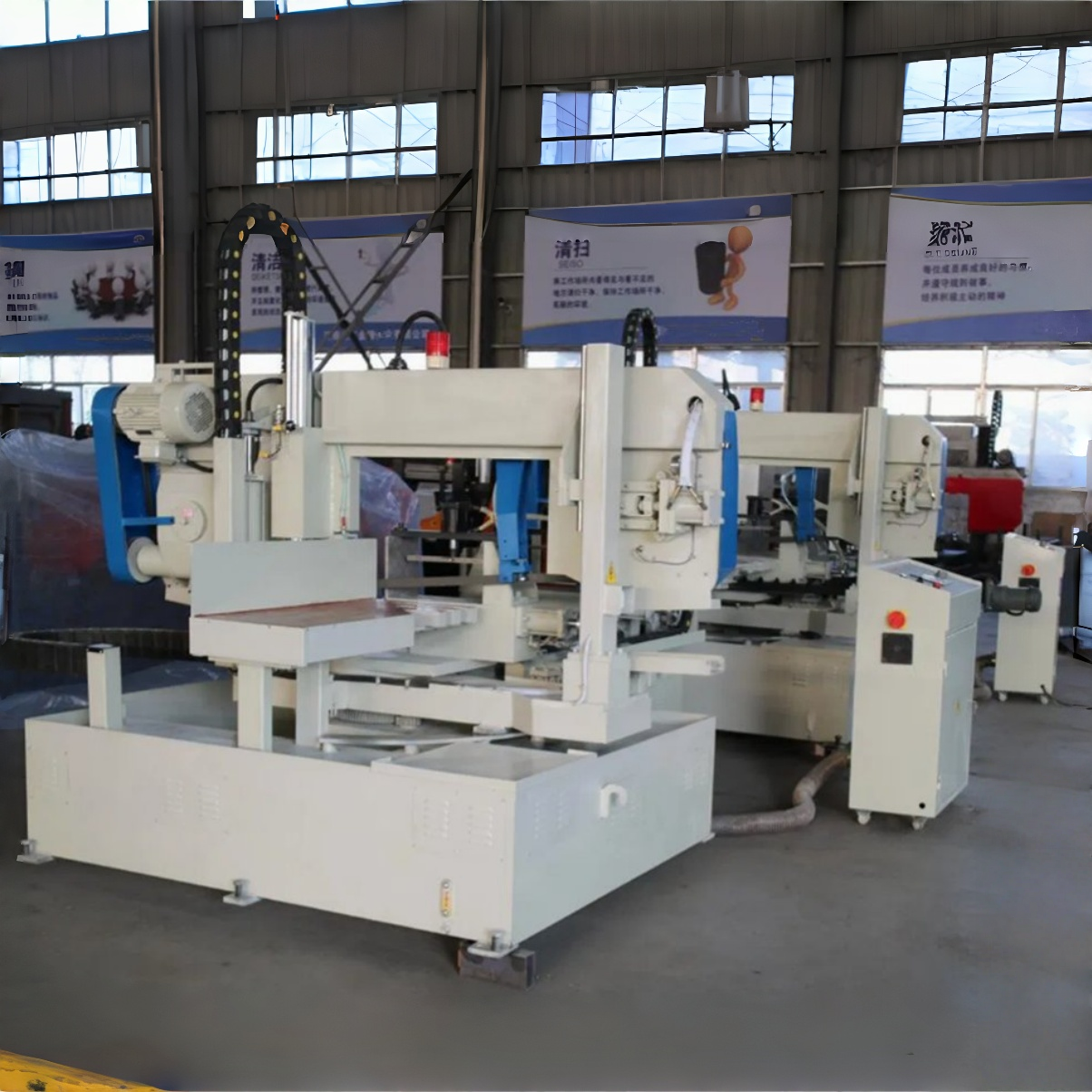

GKX-300 Horizontal Band Sawing Machine Automatic Corner Feed with Core Motor Component for Band Slicing

GKX-300 product features
1, Double column structure;
2, band saw blade tension by hydraulic;
3, main drive is turbo drive with strong motivation, reliable properties and stable rotating;
4, saw frame could be rotated 90°~-45° degree by servo motor controlling with high accuracy;
5, equipped with touch screen, human-machine interface, could set up several groups of cutting data and cut in order;
6, PLC controlling;
7, maximum feeding length single stroke is 500mm maximum(feeding length could be customized), could repeat feeding if longer than
500mm. Automatic feeding, measuring, clamping, and cutting;
8, reasonable band saw blade guiding system: the mutual motivation of the movable guiding device and side pressing device allows
for stable descending, little vibration and avoiding saw blade breaking;
9, separate controlling cabinet, simple design circuit board, with functions of inner cooling circulation, blade breakage
protection, over heat protection, power off when door open, and maintenance light in the cabinet.
10, equipped with alarms for blade breakage, and over heat system.
11, automatic angle rotating adjusted by servo motor/hydraulic.

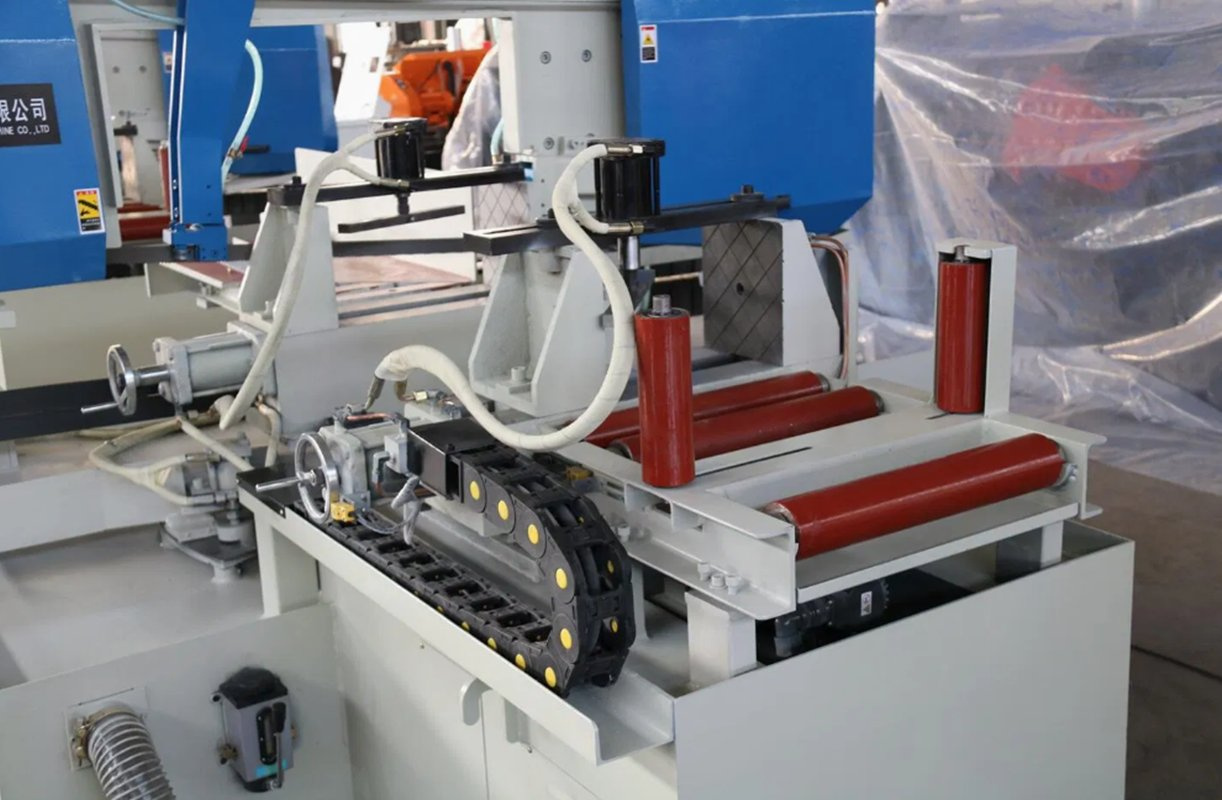

12, automatic work piece feeding by servo motor driving and linear rail guiding or hydraulic cylinder.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
GKX-300
Brand:
JEPPS

Product Description

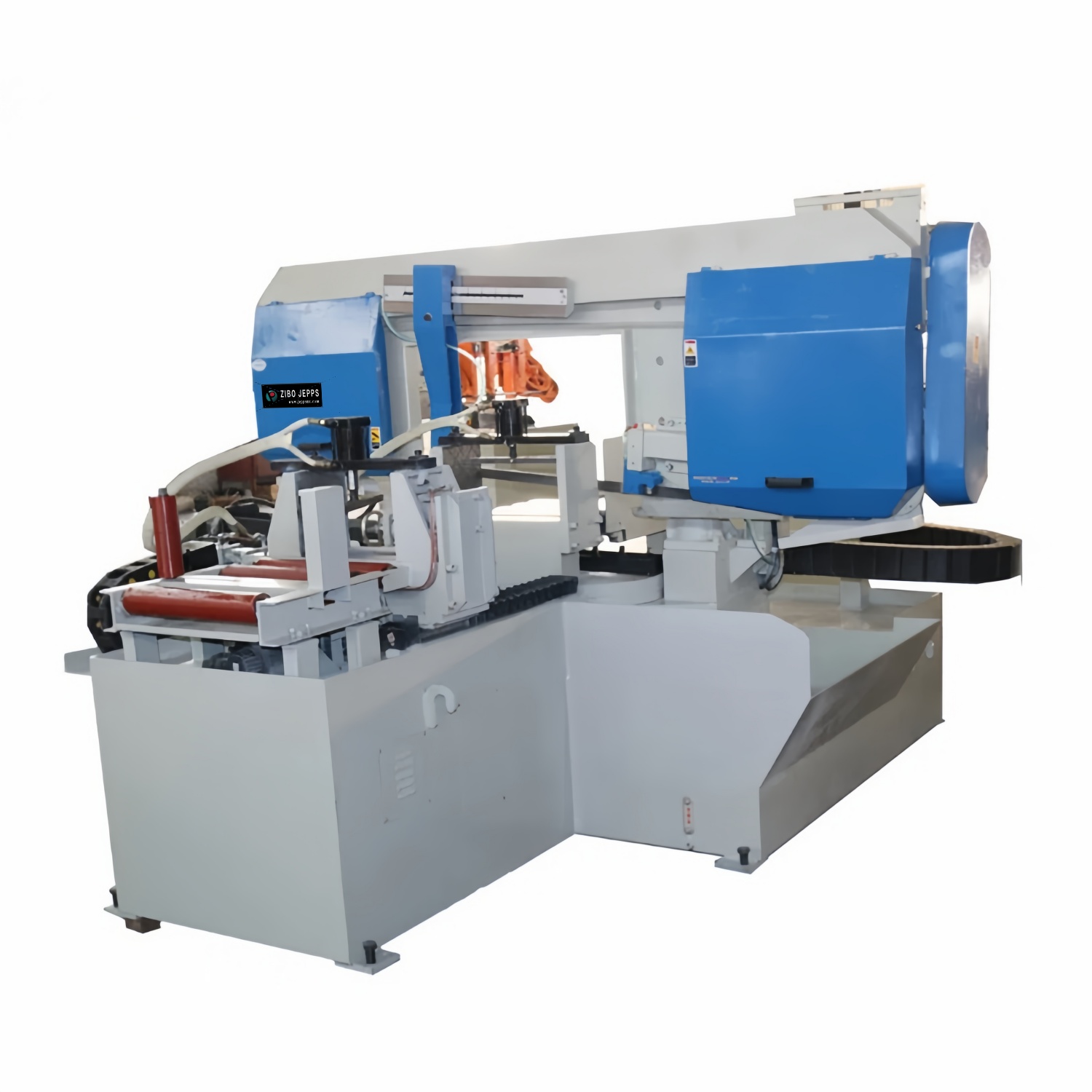

GKX-300_副本

45 Degree 60 Degree Angle Band Saw Miter Cutting Machine GKX300

 1, Double column structure;
2, band saw blade tension by hydraulic;
3, main drive is turbo drive with strong motivation, reliable properties and stable rotating;
4, saw frame could be rotated 90°~-45° degree by servo motor controlling with high accuracy;
5, equipped with touch screen, human-machine interface, could set up several groups of cutting data and cut in order;
6, PLC controlling;
7, maximum feeding length single stroke is 500mm maximum(feeding length could be customized), could repeat feeding if longer than
500mm. Automatic feeding, measuring, clamping, and cutting;
8, reasonable band saw blade guiding system: the mutual motivation of the movable guiding device and side pressing device allows
for stable descending, little vibration and avoiding saw blade breaking;
9, separate controlling cabinet, simple design circuit board, with functions of inner cooling circulation, blade breakage
protection, over heat protection, power off when door open, and maintenance light in the cabinet.
10, equipped with alarms for blade breakage, and over heat system.
11, automatic angle rotating adjusted by servo motor/hydraulic.
12, automatic work piece feeding by servo motor driving and linear rail                         guiding or hydraulic cylinder.

GKX-300-1

Item	GKX-300	GKX-350	GKX-600
Cutting capacity(mm)	0°:300*350	0°:350*400	0°:600*700
Cutting capacity(mm)	±45°:300*300	±45°:350*350	±45°:600*600
Main motor power(kw)	3	4	7.5
Oil pump motor power(kw)	0.75	0.75	1.5
Water pump motor power(kw)	0.09	0.09	0.12
Saw blade specifications(mm)	34*1.1	34*1.1	41*1.3
Saw belt speed(m/min)	40/60/80 tower wheel speed adjustment	40/60/80 tower wheel speed adjustment	40/60/80 tower wheel speed adjustment
Work feed mode	Hydraulic speed infinitely adjustable	Hydraulic speed infinitely adjustable	Hydraulic speed infinitely adjustable
Work clamping method	Hydraulic	Hydraulic	Hydraulic
Saw band tensioning method	Hydraulic	Hydraulic	Hydraulic
Feeding table movement mode	Servo motor control, linear guide	Servo motor control, linear guide	Servo motor control, linear guide
Angle adjustment method	PLC parameter control, servo motor drive, touch screen display	Servo automatic, angle touch screen digital display	Hydraulic cylinder drive, magneticc scale reading, touch screen display
Angle/section tolerance(mm)	≤0.5	≤0.5	≤0.5
Feeding tolerance(mm)	≤±0.2	≤±0.2	≤±0.2
Workbench load(kg)	5000	3000	5000
Main transmission mode	Worm gear reducer for sawing machine	Worm gear reducer for sawing machine	Worm gear reducer for sawing machine
Working vise height(mm)	220	220	380
Maximum feeding length per word(mm)	500	500	500
