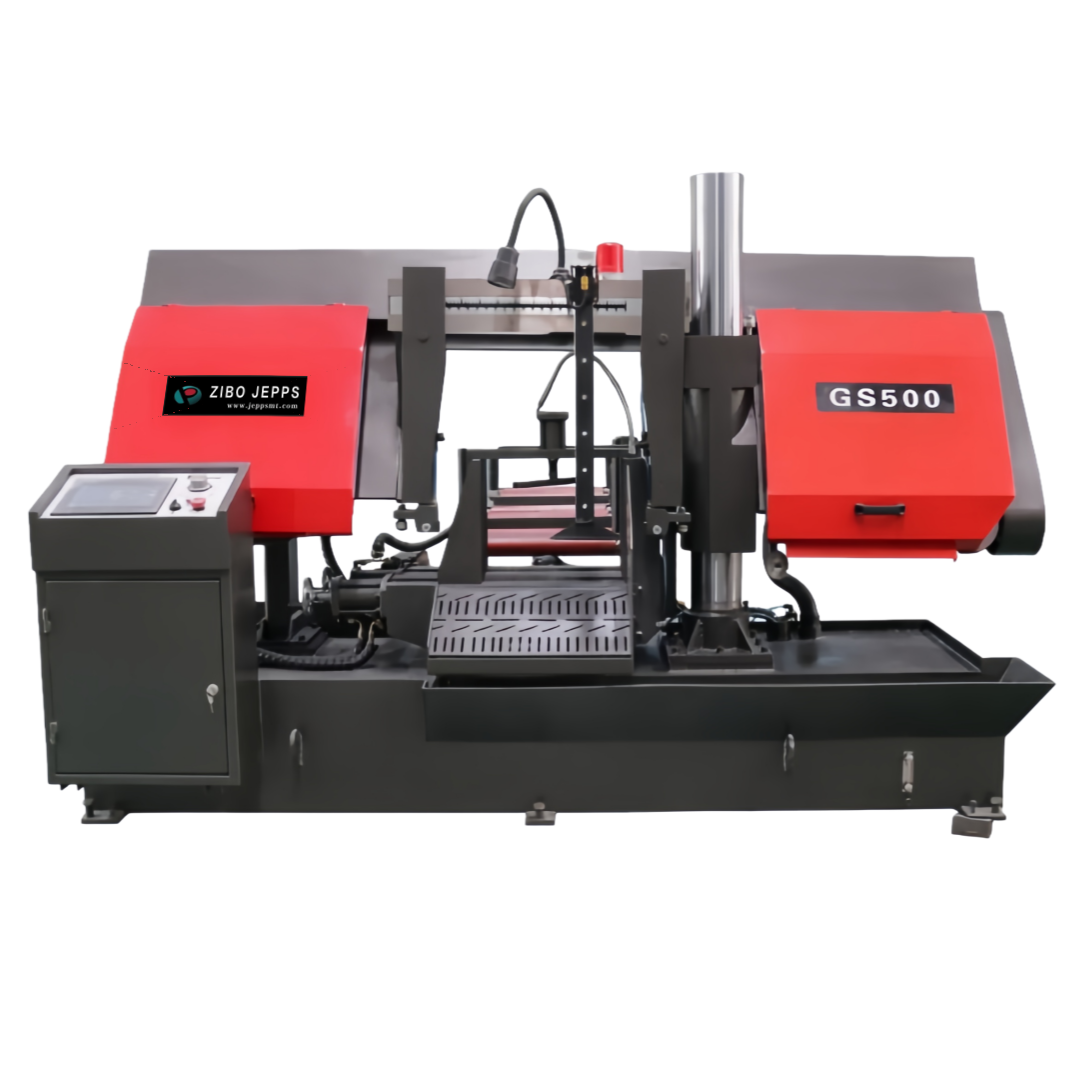

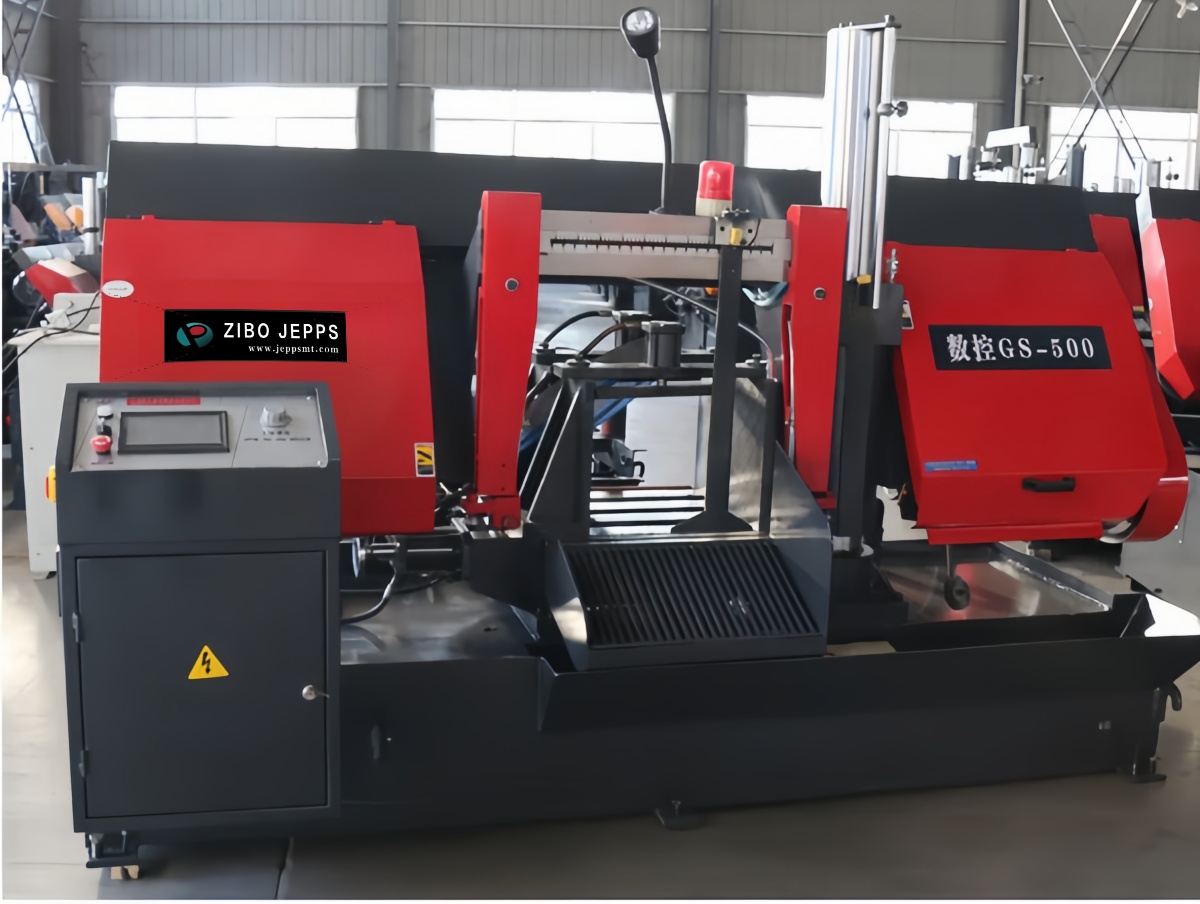

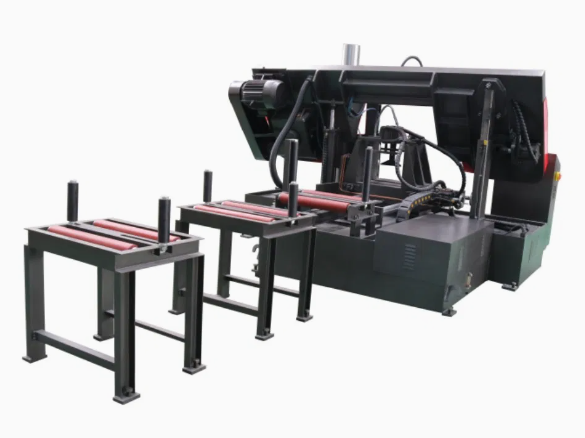

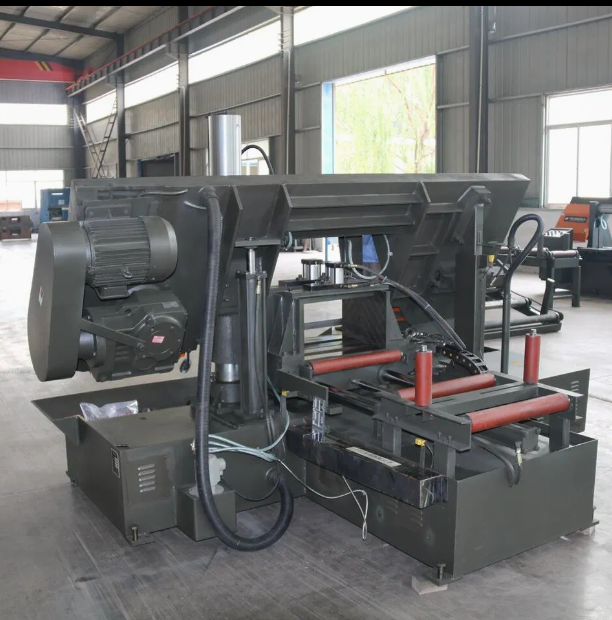

GS500 Fully Auto Double Column Bandsaw Metal Cutting Band Saw Machine

GS500 Fully Automatic Sawing Machine- Performance Features Overview
1. Fully automatic CNC sawing machine, suitable for continuous cutting in batch production.

2. Equipped with a PLC control system, capable of setting one or multiple sets of data for continuous cutting with a feeding accuracy of 0.2mm.

3. Operated via a color touchscreen, replacing traditional button control panels with a human-machine interface.

4. Utilizes a linear encoder to control feed length, with a maximum single feed stroke of 500mm. Lengths exceeding 500mm can be fed in multiple passes.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
GS500
Brand:
JEPPS

Product Description

GS500

GS500 performance characteristics

1.Fully -automatic CNC saw, suitable for continuous cutting in batches.
2.With the PLC control system, one or more sets of data can be set up continuously.
3.Color touch screen operation, human -machine interface replaces the traditional button control panel.
4.Manual and automatic dual function selection.
5.The feeding length is controlled by a grating ruler, and the accuracy is high.

6.Applicable materials: Primarily used for cutting large steel billets, and also suitable for various ferrous metals (such as carbon steel, alloy steel) and non-ferrous metals.

Model		GS500
Cutting capacity	Round (mm)	500

	Rectangular	500W*500H
	(mm)
Bundle Cutting(mm)		Max 400W*220H
		Min300W*170H
Band Saw Blades Size		5550411.3
Saw blade speed		40/60/80 regulated by cone pulley
Main motor power		5.5 KW
Hydraulic motor power		1.5 KW
Coolant motor power		0.09 KW
Work piece clamping		Hydraulic
Saw blade tension		Hydraulic
Drive type		Worm Gear
Material feeding type		650mm
Work bed height		650mm
Gross weight		2400Kg
Dimension size		260018001900mm
