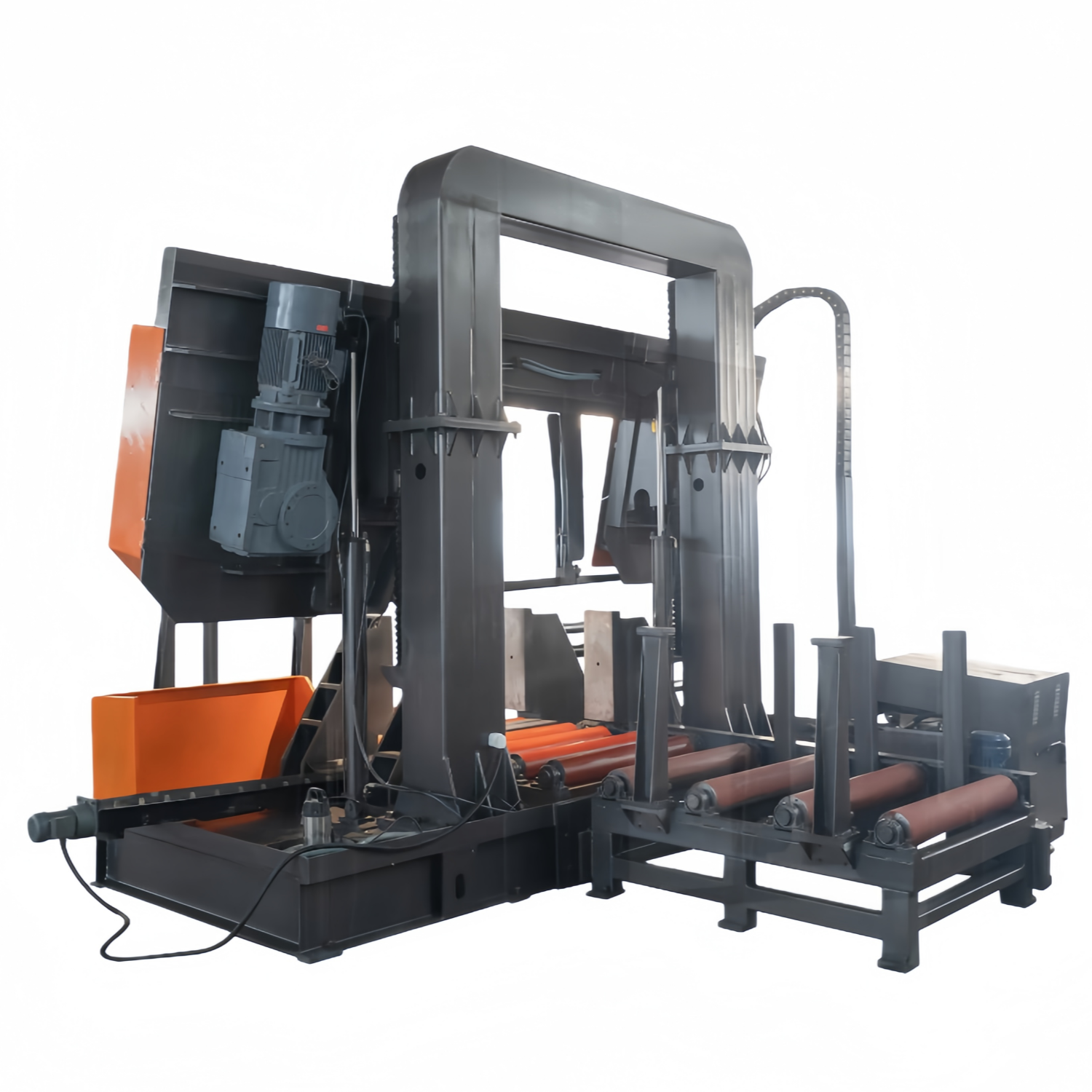

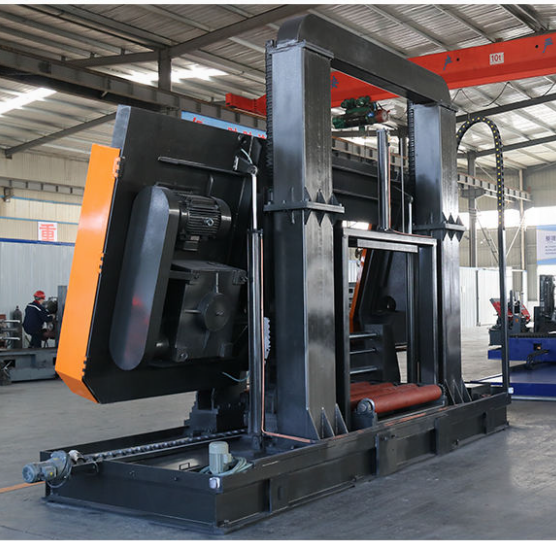

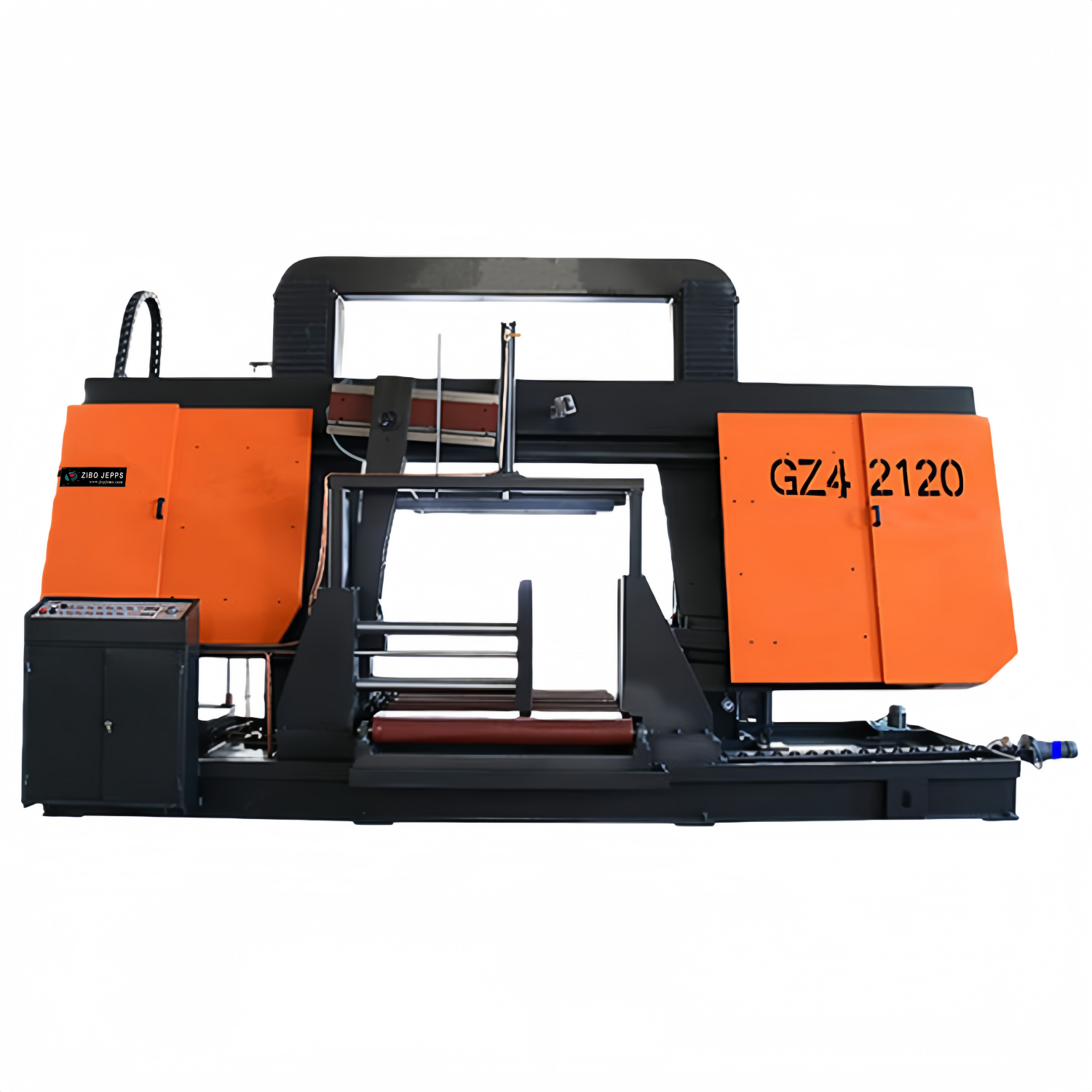

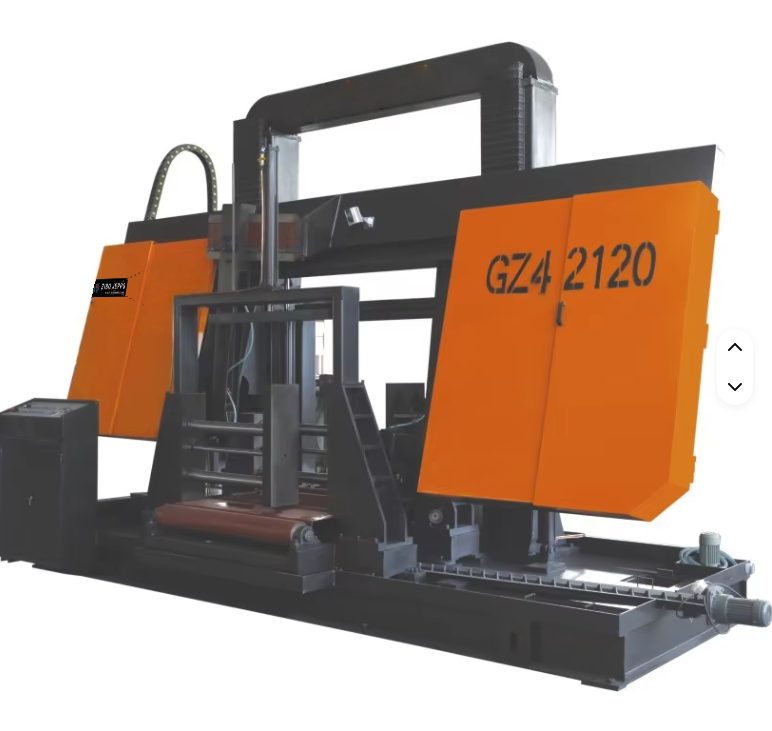

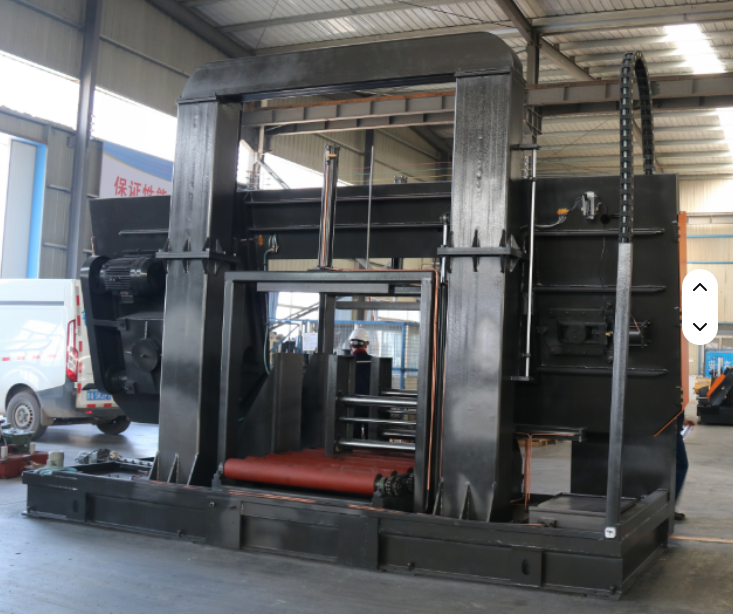

GZ42120 Semi Automatic Gantry Type Large Diameter Metal Band Saw

GZ42120 product features

Custom Heavy Duty Metal Cutting Band Saw GZ42120 is used for cutting ferrous and non-ferrous material like iron, carbon steel,profile steel, H steel, copper, aluminum. it is the ideal equipment for the industrial and mining enterprises and small workshops with massive application.
Color:
Availability:
Quantity:
  • Gz42120

  • JEPPS

GZ42120GZ42120 product features

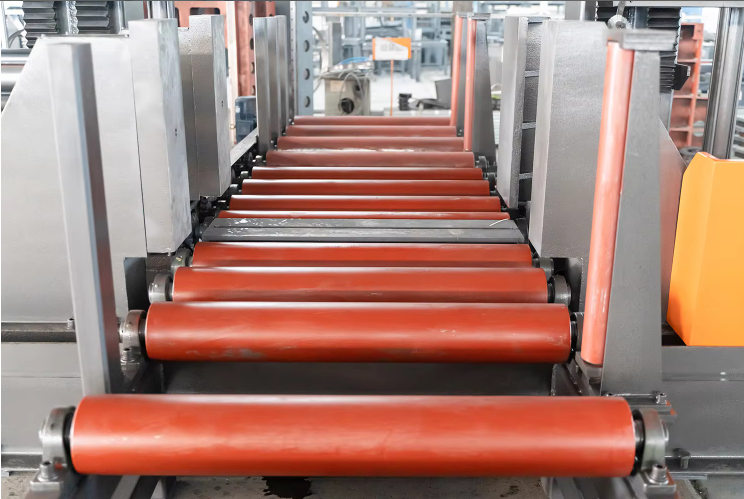

1.Rigid gantry structure with linear guiding rail guarantee the stability of the band saw. 2.High accuracy linear guiding makes guiding precisely and saves saw blade. 3.High performance spiral bevel gear reducer with strong driving power, high stability, and precise correction, lownoise, little vibration. 4.Reasonable saw blade guicding system: carbide and rolling bearing combined, efectively extends the service time ofsaw blade. 5.Unique hydraulic syslem makes saw blade faling stably, avoiding the breaking of the saw frame vith perfect cutting quality. 6.Large range electrical rolling material platform is optional, moving work piece fast, improving working efficiency.

GZ42120-3

GZ42120-4_副本


Model

GZ4280

GZ42100

GZ42120

GZ42150

Cutting Ability (mm)

Ф800mm;□800x800mm

Ф 1000mm ; 1000x1000mm

Ф1200mm;□1200x1200mm

Ф1500mm; □1500x1500mm

Saw Blade Size (mm)

8800*67*1.6mm

10000x 67x 1.6mm

11200*67*1.6mm

14800*80*1.6mm

Saw Blade Speed (m/min)

15-80m/min(Regulated by inverter)

Main Motor Power (kw)

11kw

11kw

15kw

15kw

Hydraulic Motor Power (kw)

1.5kw

2.2kw

3.7kw

3.7kw

Cooling Motor Power (kw)

0.125kw

0.12 kw

0.25kw

0.25kw

Saw Blade Tension

Hydraulic

Work Piece Clamping

Hydraulic

Machine Weight (kg)

6500kg

6800kg

11000kg

11800kg

Machine Dimensions (mm)

4100x1900x2960mm

L4700xW1700xH2850mm

5200x2400x3800mm

6800*2200*3800mm


GZ-5GZ-7GZ-6GZ

锯床-5锯床-1_副本锯床-4简介包装,发货证书
