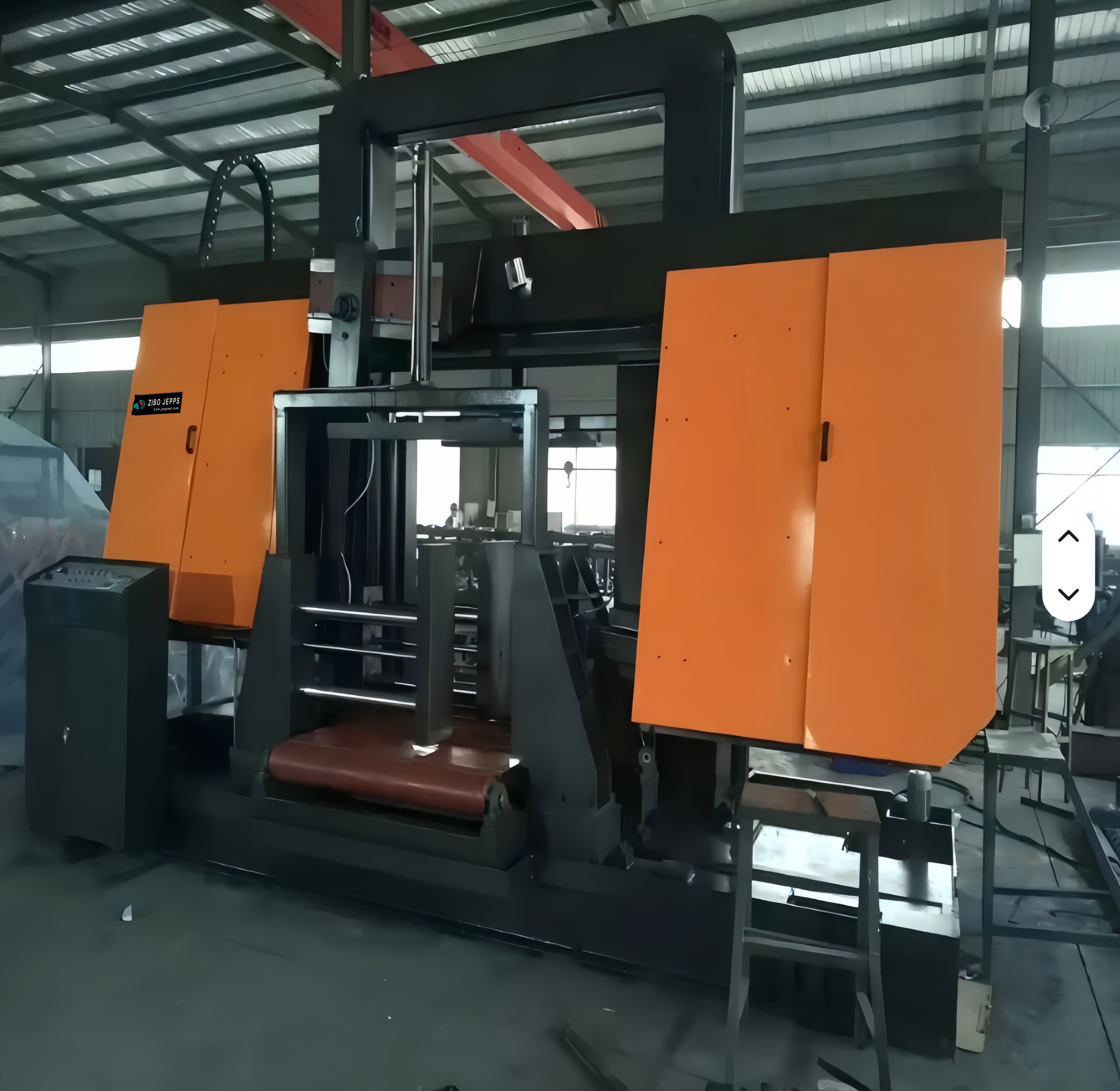

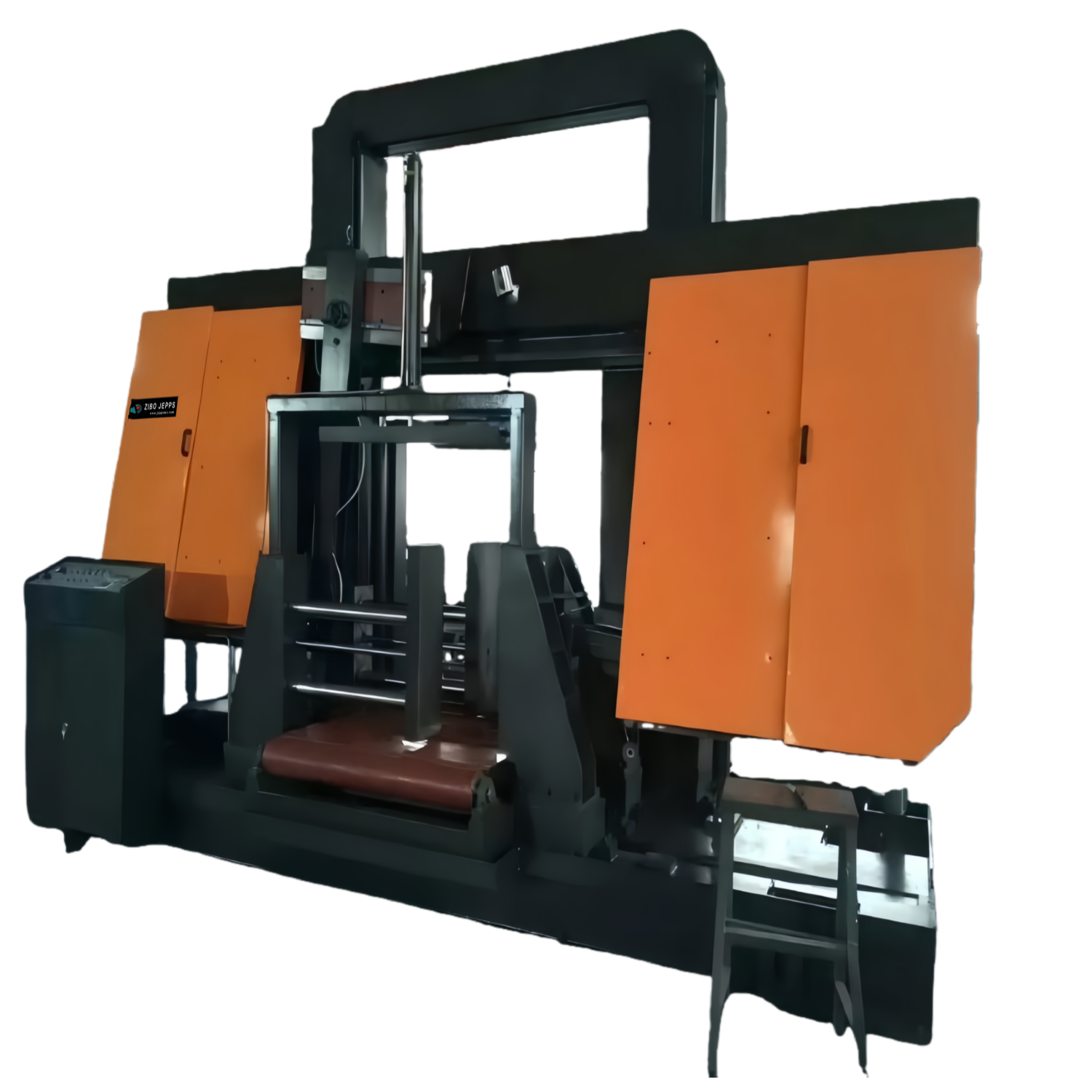

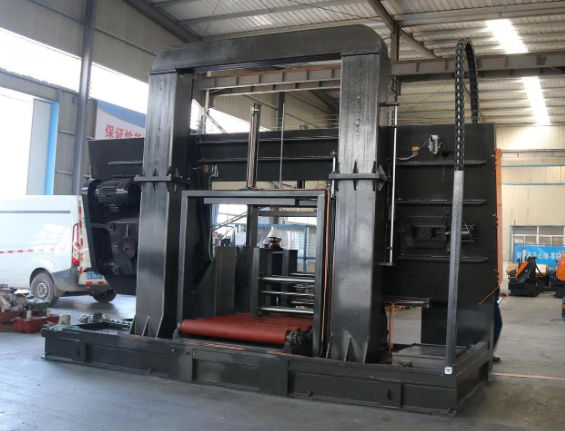

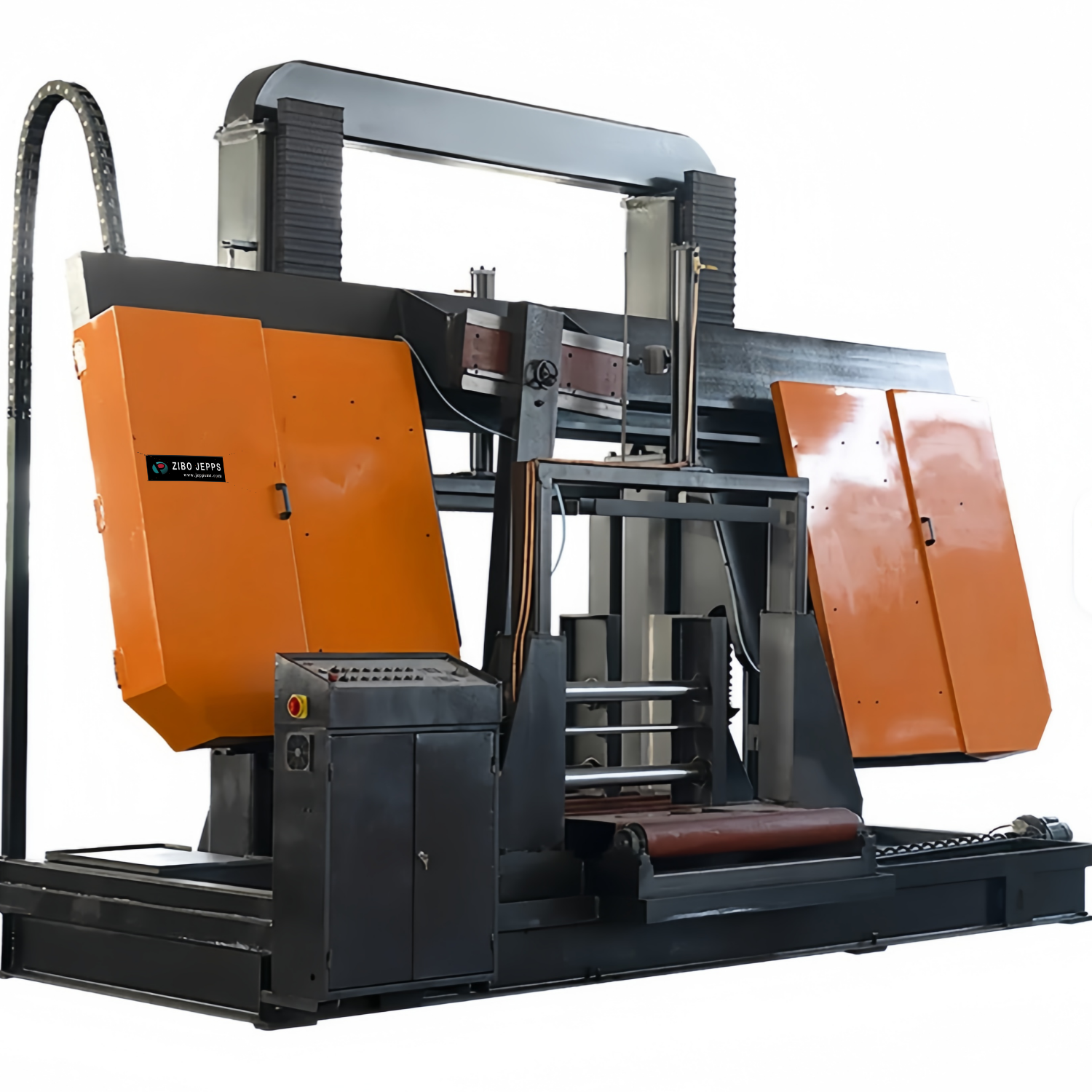

GZ42150 Industrial Semi-Automatic Band Saw Machine High-Speed Precision Metal Cutting with Gear Core Components

Share to:

GZ42150 Industrial Semi-Automatic Band Saw Machine High-Speed Precision Metal Cutting with Gear Core Components

GZ42150 product features

Custom Heavy Duty Metal Cutting Band Saw GZ42150 is used for cutting ferrous and non-ferrous material like iron, carbon steel,profile steel, H steel, copper, aluminum. it is the ideal equipment for the industrial and mining enterprises and small workshops with massive application.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
Gz42150
Brand:
JEPPS

Product Description

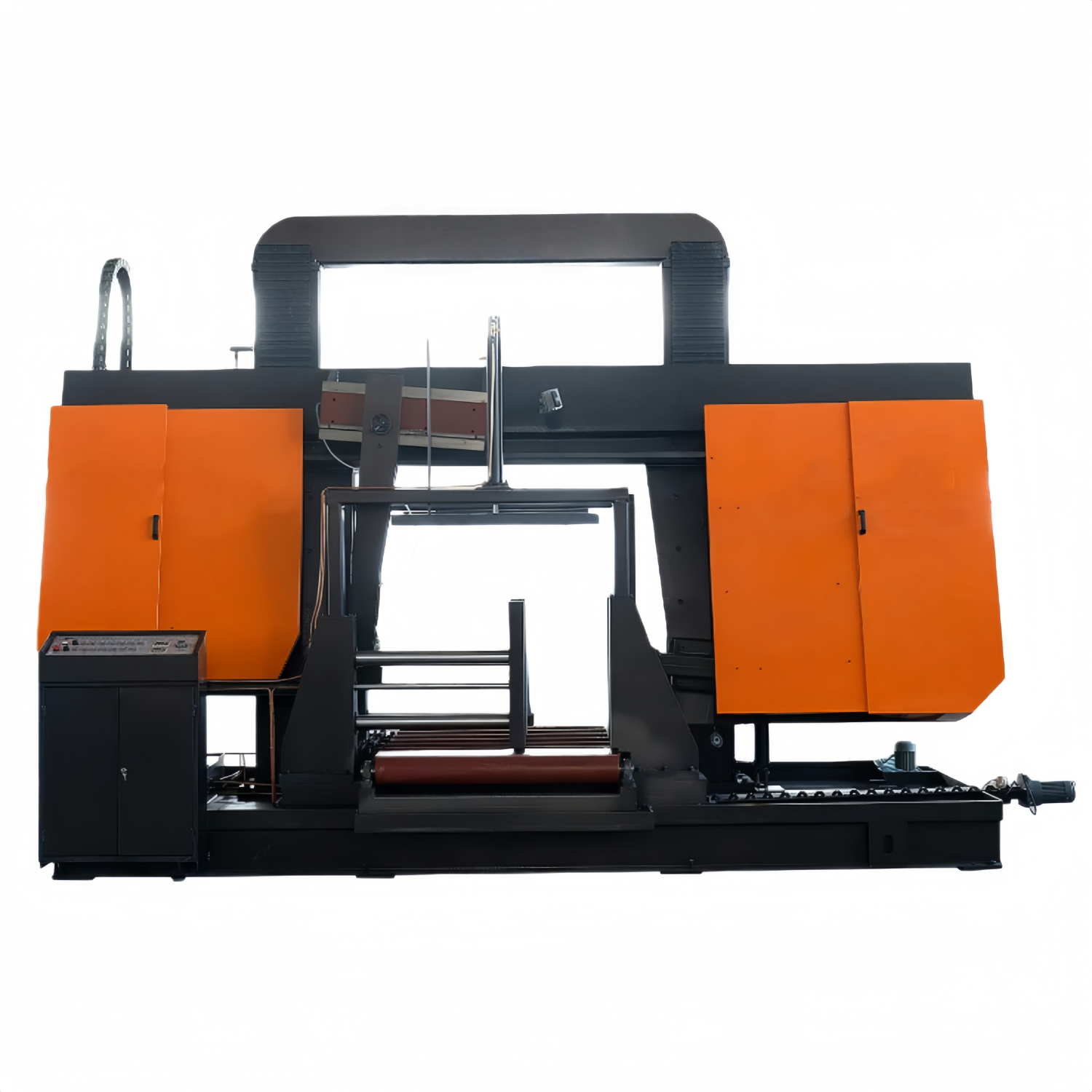

GZ42150-1 GZ42150 product features

1.Rigid gantry structure with linear guiding rail guarantee the stability of the band saw. 2.High accuracy linear guiding makes guiding precisely and saves saw blade. 3.High performance spiral bevel gear reducer with strong driving power, high stability, and precise correction, lownoise, little vibration. 4.Reasonable saw blade guicding system: carbide and rolling bearing combined, efectively extends the service time ofsaw blade. 5.Unique hydraulic syslem makes saw blade faling stably, avoiding the breaking of the saw frame vith perfect cutting quality. 6.Large range electrical rolling material platform is optional, moving work piece fast, improving working efficiency.

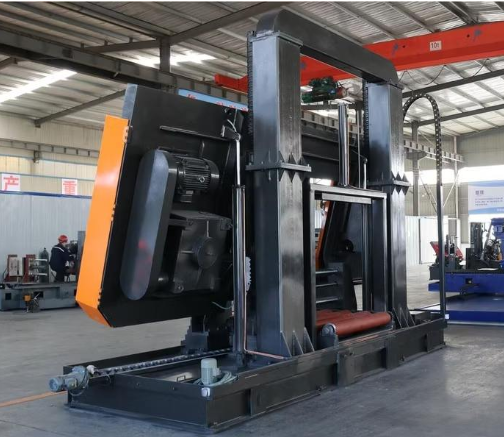

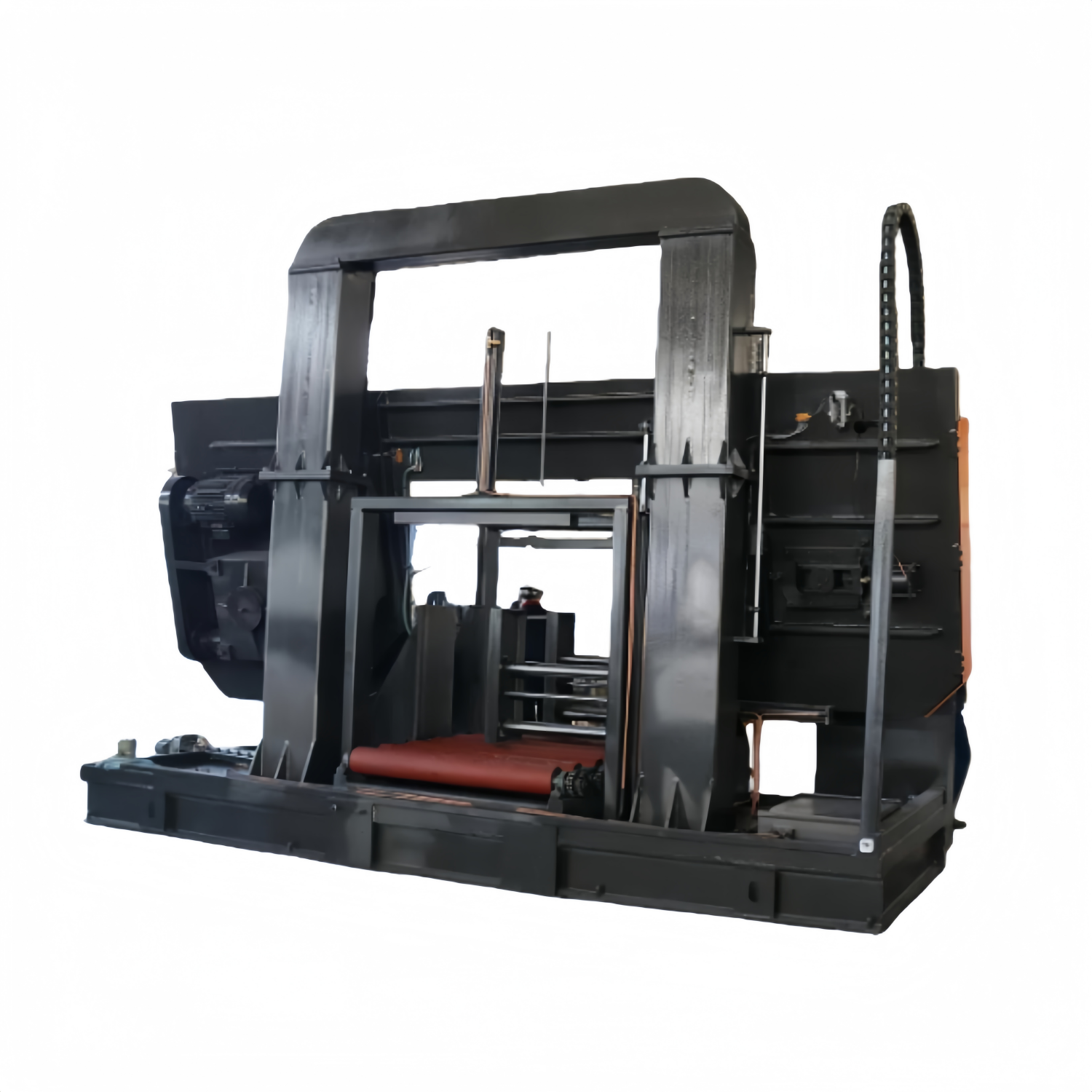

GZ42150-4

Model	GZ4280	GZ42100	GZ42120	GZ42150
Cutting Ability (mm)	Ф800mm;□800x800mm	Ф 1000mm ; 口 1000x1000mm	Ф1200mm;□1200x1200mm	Ф1500mm; □1500x1500mm
Saw Blade Size (mm)	8800671.6mm	10000x 67x 1.6mm	11200671.6mm	14800801.6mm
Saw Blade Speed (m/min)	15-80m/min(Regulated by inverter)
Main Motor Power (kw)	11kw	11kw	15kw	15kw
Hydraulic Motor Power (kw)	1.5kw	2.2kw	3.7kw	3.7kw
Cooling Motor Power (kw)	0.125kw	0.12 kw	0.25kw	0.25kw
Saw Blade Tension	Hydraulic
Work Piece Clamping	Hydraulic
Machine Weight (kg)	6500kg	6800kg	11000kg	11800kg
Machine Dimensions (mm)	4100x1900x2960mm	L4700xW1700xH2850mm	5200x2400x3800mm	680022003800mm
