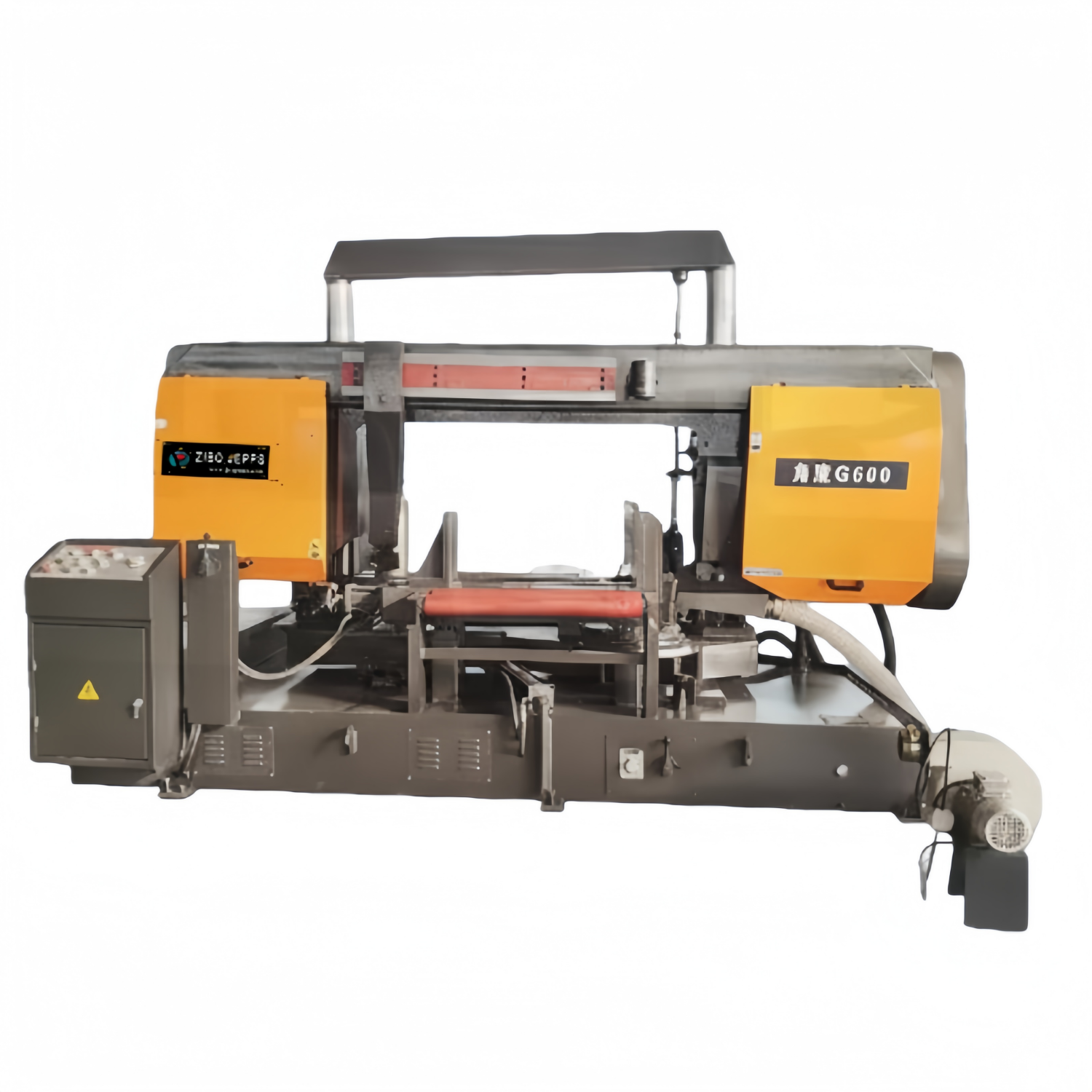

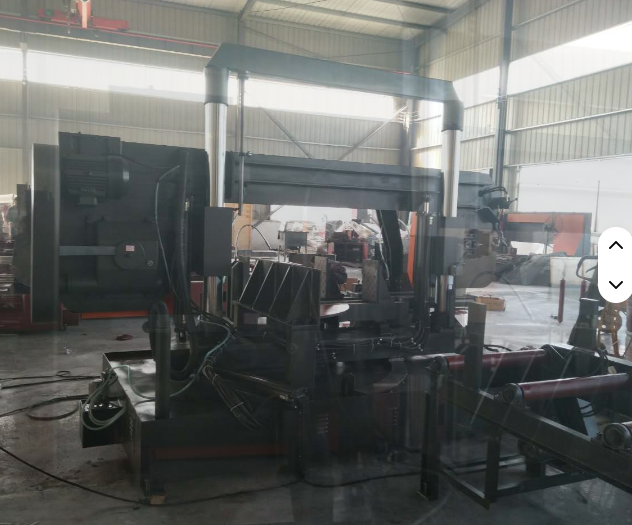

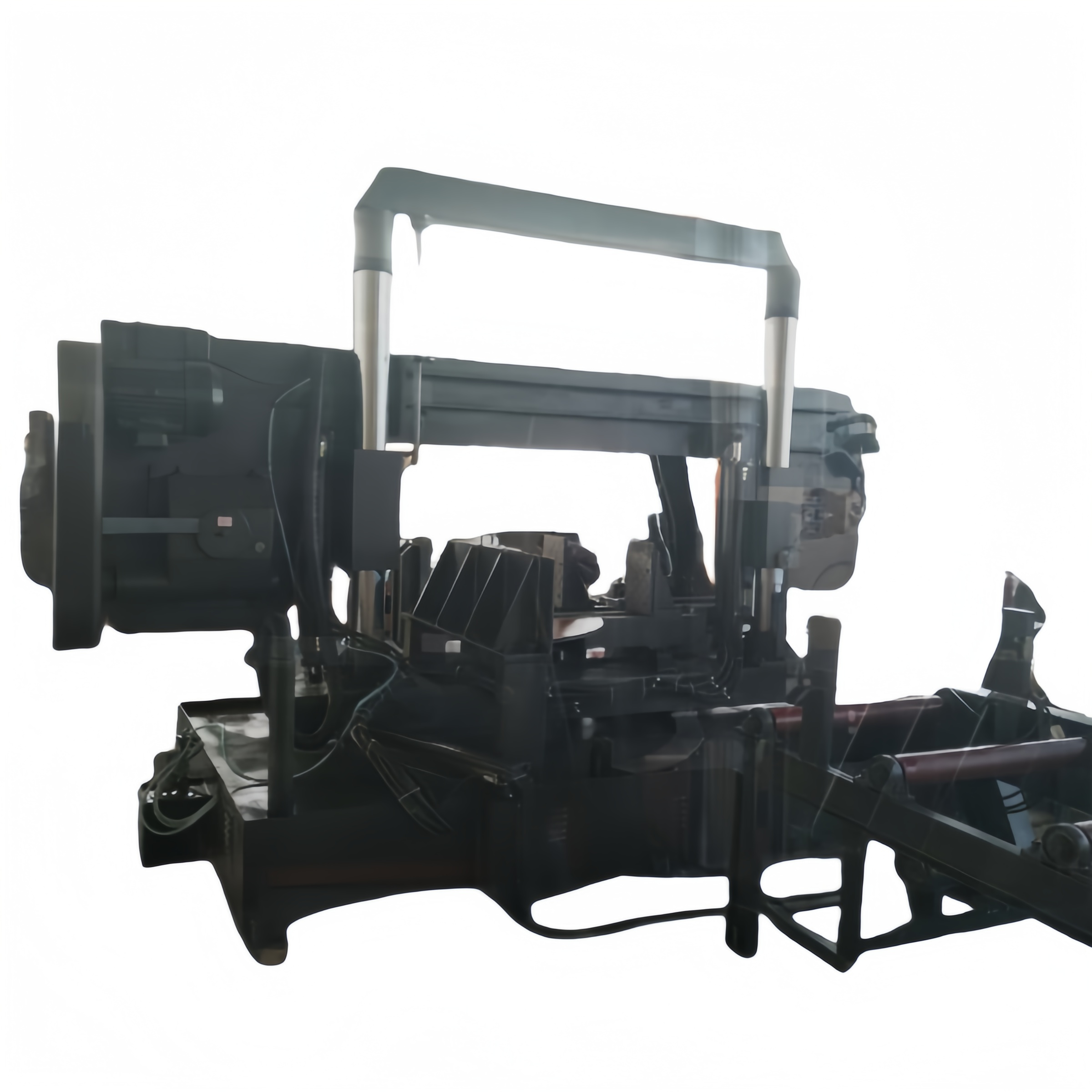

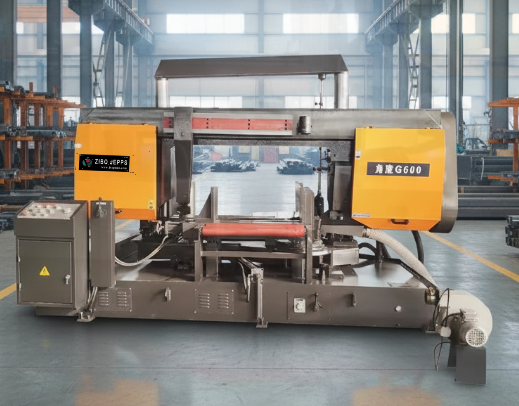

G-600 Heavy-Duty 600mm Band Saw Machine with Hydraulic Tension and Rotary-Angle

G-600 product features
1.This machine adopts and absorbs the performance characteristics of similar foreign sawing machines, hydraulic balance cylinder, high-strength balance spring and hydraulic stepless speed regulation.
2.The material cut by the sawing machine does not move, and the saw frame can rotate 0-45 degrees forward or 0 to 60 degrees in the reverse direction, which is suitable for sawing various angle steels, round steels, rectangular pipes, etc. with angle requirements.
3.The bed at the clamping part can move forward and backward to facilitate clamping of materials.
This machine can also be equipped with CNC cornering and automatic feeding system to achieve automatic cutting.

Color:	customer request
Availability:

Quantity:



Inquire Add to Basket

Model:
G-600
Brand:
JEPPS

Product Description

c763a518-5948-491a-90cf-a78e457064e8

G-600 product features

1.This machine adopts and absorbs the performance characteristics of similar foreign sawing machines, hydraulic balance cylinder, high-strength balance spring and hydraulic stepless speed regulation.
2.The material cut by the sawing machine does not move, and the saw frame can rotate 0-45 degrees forward or 0 to 60 degrees in the reverse direction, which is suitable for sawing various angle steels, round steels, rectangular pipes, etc. with angle requirements.
3.The bed at the clamping part can move forward and backward to facilitate clamping of materials.
This machine can also be equipped with CNC cornering and automatic feeding system to achieve automatic cutting.

G-600-3

Model	G-600
Max cutting capacity	0 degree Round 600mm Rectangular 700WX600Hmm
Max cutting capacity	- 45 degree Round 600mm Rectangular 600 WX600Hmm
Angle	0 degree to - 45 degree
Blade speed	40/60/80 regulated by cone pulley
Blade size	6800X41X1.3
Main Motor Power	5.5KW
Hydraulic Motor power	1.5KW
Coolant Motor Power	0.09 KW
Working Clamping	Hydraulic type
Blade tension	Hydraulic Type
Material feeding type	Roller auxiliary feeding
Work bed Height	650mm
Net Weight	3000 Kg
Overall Dimension	3000L X 1600 W X 1750 H mm
