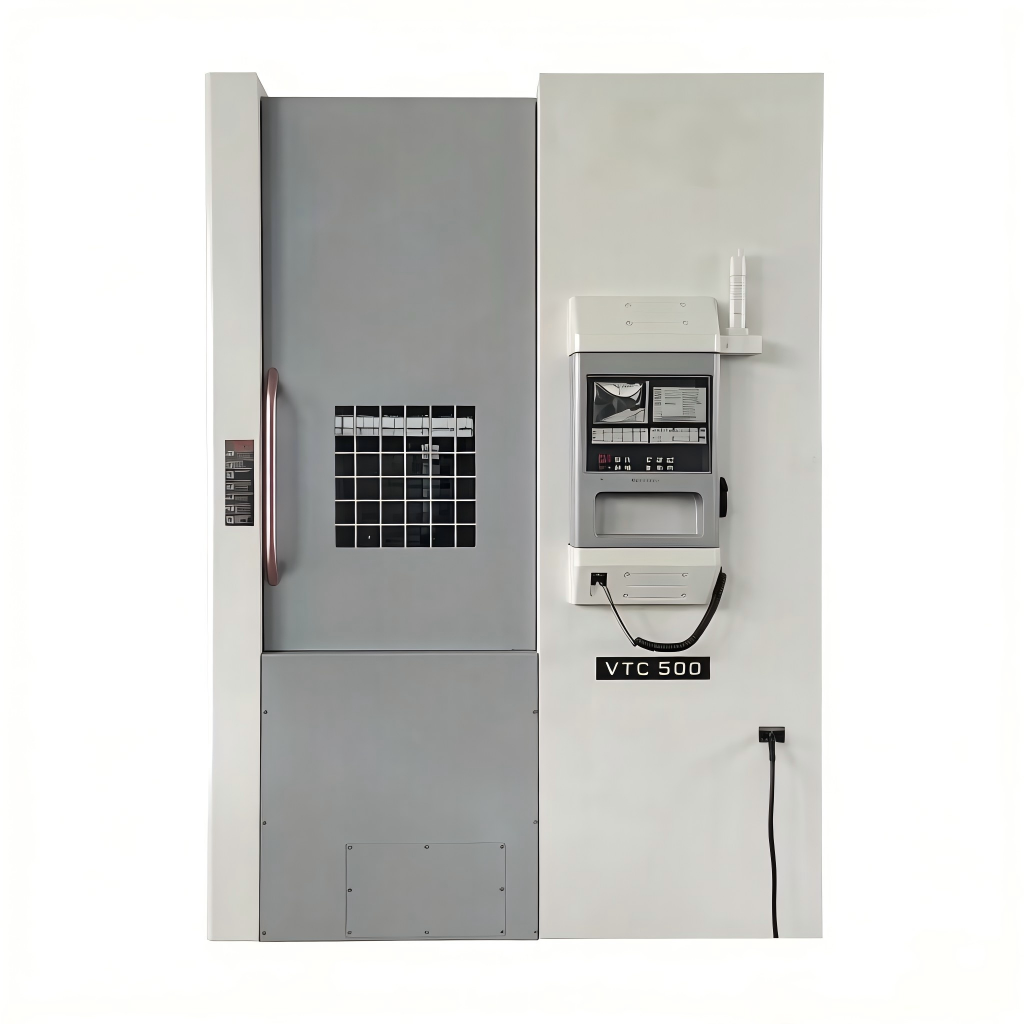

VTC.500 Vertical CNC Lathe

VTC Series CNC Vertical Lathe
The machine adopts a standard vertical lathe cross-slide structure and can be equipped with a horizontal turret or vertical turret, used for machining operations such as turning internal/external cylindrical surfaces, conical surfaces, end faces, grooving, and chamfering.
Stable Structure, Easy Operation:
Horizontal or vertical turret available for flexible configuration.
Unitized spindle design, maintenance‑free.

Availability:

Quantity:



Inquire Add to Basket

Model:
VTC-500

VTC Series CNC Vertical Lathe

The machine adopts a standard vertical lathe cross-slide structure and can be equipped with a horizontal turret or vertical turret, used for machining operations such as turning internal/external cylindrical surfaces, conical surfaces, end faces, grooving, and chamfering.

Stable Structure, Easy Operation:

Horizontal or vertical turret available for flexible configuration.
Unitized spindle design, maintenance‑free.

Item	Unit	VTC-500	VTC-600	VTC-700	VTC-800	VTC1-000	VTC-1250
Travel	X-axis (mm)	350	450	500	600	700	700
Travel	Z-axis (mm)	550	600	650	800	850	850
Machining Capacity	Max. Swing Diameter (mm)	550	700	800	950	1100	1250
	Max. Turning Diameter (mm)	500	600	700	900	1000	1100
	Max. Turning Height (mm)	500	600	650	800	800	800
Spindle Parameters	Speed (rpm)	50-1000	50-1000	50-1000	50-1000	50-800	50-500
	Front Bearing Dia. (mm)	φ130	φ130	φ160	φ200	φ200	φ200
	Axial Runout (mm)	0.004	0.003	0.003	0.003	0.003	0.003
	Radial Runout (mm)	0.003	0.003	0.003	0.003	0.003	0.003
	Rated Torque (N.M)	350	580	700	950	30/200	30/200
Main Motor	Power (Kw)	15	18.5	22	30	30/22	30/22
Chuck / Turret	Chuck Type	3-Jaw Hydraulic Self-centering Chuck					Manual 4-Jaw Chuck
	Chuck Diameter (mm)	15	15	21	24	24	32
	Tool Station	12	12	4/12	4/12	4	4
Ball Screw / Guide Rail	X-axis Guide (mm)	45	45	45	55	55	55
	Z-axis Guide (mm)	45	45	45	55	55	55
	X-axis Ball Screw (mm)	φ40	φ40	φ40	φ50	φ50	φ50
	Z-axis Ball Screw (mm)	φ40	φ40	φ40	φ50	φ50	φ50
Cooling / Hydraulic	Cooling Motor Power (Kw)	0.2	0.45	0.45	0.75	0.75	0.75
Cooling / Hydraulic	Hydraulic Motor Power (Kw)	1.5	1.5	1.5	1.5	1.5	1.5
Accuracy	Positioning Accuracy (mm)	±0.005	±0.005	±0.005	±0.008	±0.008	±0.008
Accuracy	Repeat Positioning Accuracy (mm)	±0.003	±0.003	±0.003	±0.004	±0.005	±0.005
Dimensions / Weight	Min. Moving Unit (mm)	0.001	0.001	0.001	0.001	0.001	0.001
Dimensions / Weight	Overall Dimensions (mm)	2015x1890x2700	1950x1880x2800	2150x1950x2950	2350x2200x3200	2500x2450x3200	2650x2600x3400
