| Quantity: | |
|---|---|
Project | Unit | Parameter |
Maximum turning diameter of bed | mm | Φ600 |
Maximum turning diameter of slide | mm | Φ395 |
Center distance | mm | 1000 |
Maximum turning length | mm | 850 |
Spindle hole diameter | mm | Φ82 |
Bar diameter | mm | Φ80 |
With hollow chuck pull rod through hole | mm | Φ65 |
Spindle end type | A2-8 | |
Chuck | mm | Ordinary Φ250 |
Taper of spindle taper | No | Metric 90, 1:20 |
Spindle speed limit | rpm | 1600 |
Diameter of tailstock cover | mm | Φ75 |
Taper of inner hole of tailstock cover | No | MT5# |
Simple stroke of tail seat cover | mm | 150 |

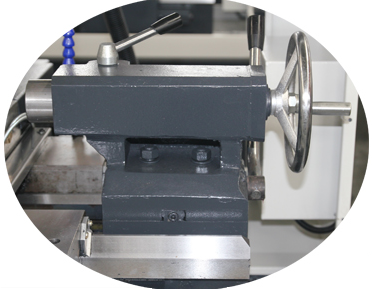

Tailstock configuration | Ordinary hand crank | |
Electric tool post knife number | Bundle | 4 |
Knife square size | mm | 25*25 (four stations) |
Main motor power | kw | 7.5 |
Total power | kw | 13 |
Machine weight | kg | 2670 |
Dimensions (length, width, height) | mm | 2650*1650*1750 |
CNC system: use Guangzhou CNC, CNC system can be equipped with Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 10-inch manual chuck, optional hydraulic chuck or hydraulic chuck
Spindle: Spindle through hole diameter 82mm/130mm is optional

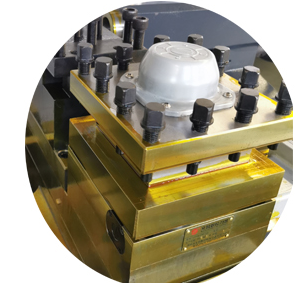

Tool post: 4-station electric tool post, optional 6-station electric tool post or station electric tool post.
Project | Unit | Parameter |
Maximum turning diameter of bed | mm | Φ600 |
Maximum turning diameter of slide | mm | Φ395 |
Center distance | mm | 1000 |
Maximum turning length | mm | 850 |
Spindle hole diameter | mm | Φ82 |
Bar diameter | mm | Φ80 |
With hollow chuck pull rod through hole | mm | Φ65 |
Spindle end type | A2-8 | |
Chuck | mm | Ordinary Φ250 |
Taper of spindle taper | No | Metric 90, 1:20 |
Spindle speed limit | rpm | 1600 |
Diameter of tailstock cover | mm | Φ75 |
Taper of inner hole of tailstock cover | No | MT5# |
Simple stroke of tail seat cover | mm | 150 |
Tailstock configuration | Ordinary hand crank | |
Electric tool post knife number | Bundle | 4 |
Knife square size | mm | 25*25 (four stations) |
Main motor power | kw | 7.5 |
Total power | kw | 13 |
Machine weight | kg | 2670 |
Dimensions (length, width, height) | mm | 2650*1650*1750 |
CNC system: use Guangzhou CNC, CNC system can be equipped with Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 10-inch manual chuck, optional hydraulic chuck or hydraulic chuck
Spindle: Spindle through hole diameter 82mm/130mm is optional
Tool post: 4-station electric tool post, optional 6-station electric tool post or station electric tool post.
