| Quantity: | |
|---|---|

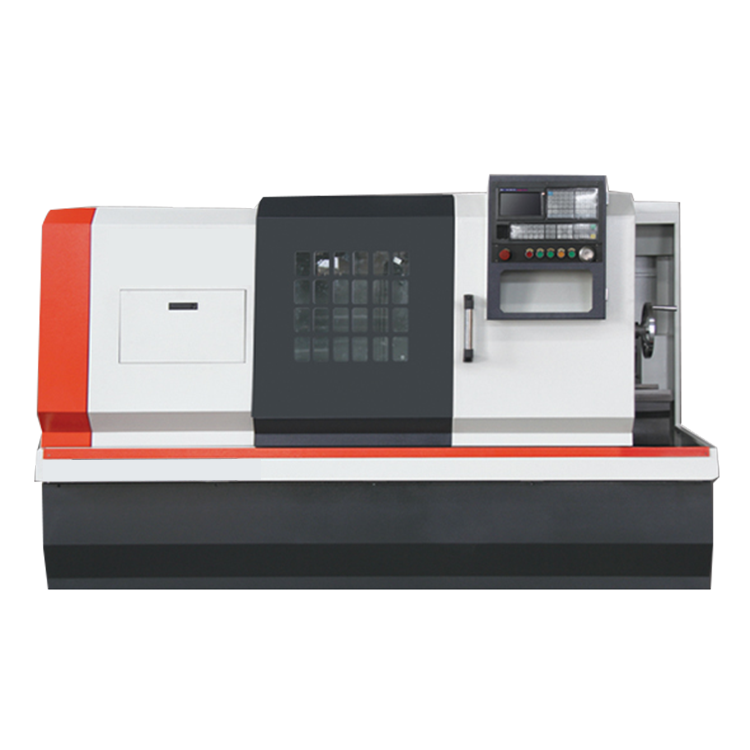

Specifications | Unit | CK6150/1000 |
Max.swing over bed | mm | Φ500 |
X guide cross track | mm | 210 |
Z guide cross trajectory | mm | 400 |
Maximum turning diameter of slide | mm | Φ250 |
Center distance | mm | 1000 |
Maximum turning length | mm | 850 |
Spindle hole diameter | mm | 82 |
Bar diameter | mm | Φ80 |
With hollow chuck rod diameter | mm | 65 |
Spindle end type | A2-8 | |
Chuck | mm | Φ250 |
Taper of spindle taper | No | 90，1:20 |
Spindle speed limit | rpm | 1800 |
Diameter of tailstock sleeve | mm | Φ75 |
Taper of inner hole of tailstock sleeve | No | MT5# |
Tailstock sleeve stroke | mm | 150 |
Tailstock configuration | Ordinary hand crank | |
Electric tool post knife number | Bundle | 4 |
Knife square size | mm | 25*25 (four stations) |
Main motor power | KW | 7.5 |
Total power | KW | 13 |
Machine weight | Kg | 2650 |
Dimensions | mm | 2650*1650*1750 |
CNC system: use Guangzhou CNC, CNC system can be equipped with Kane, Siemens, Taiwan Baoyuan new generation, fanuc system
Clamping method: 10-inch manual chuck, optional hydraulic chuck or hydraulic chuck
Main shaft: Shaft through hole diameter 82mm/130mm optional
Tool holder：4-station electric tool post，Optional 6-station electric tool post or station electric tool post
