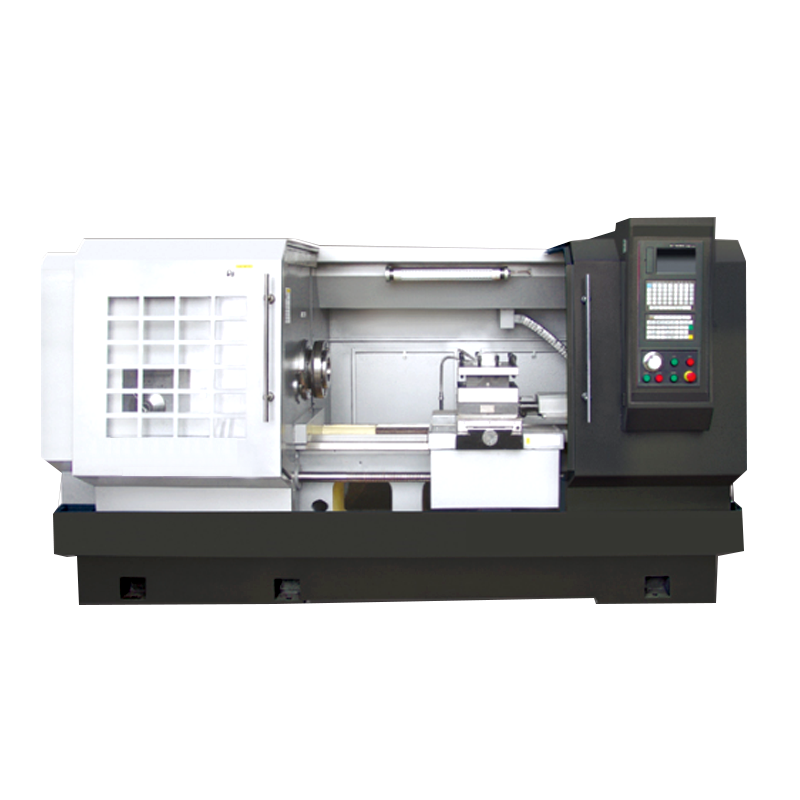

CK6185E Flat Bed CNC Lathe Machine

CNC Lathe Features
1. High strength of the base, widened pallet, suitable for strong turning

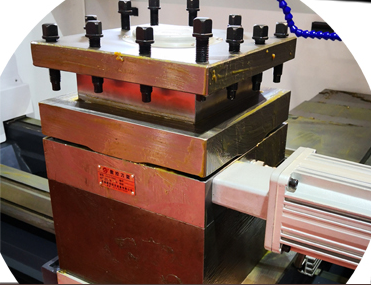

2. Four-station electric tool rest
3. Frequency conversion stepless speed regulation
4. Internal stress annealing process
5. High strength cast iron

Color:	custom design
Availability:

Quantity:



Inquire Add to Basket

Model:
CK6185E
Brand:
JEPPS
Code:
8458110090

Product Description

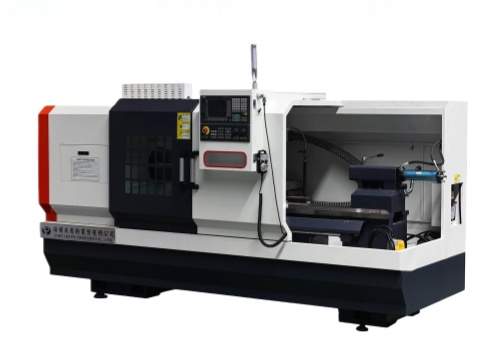

Torno-CNC-Machine-Tools-Ck6130-Ck6140-Ck6150-Good-Price-Lathe_副本

Heavy Duty Metal Cutting Horizontal CNC Lathe Machine CK6185E

Higher stability one-piece machine bed
3-gear spindle speed,step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system

	Project		Unit	Parameter
1	Maximum turning diameter of bed		mm	Φ850
2	X-direction rail span		mm	330
3	Z-direction rail span		mm	600
4	Maximum turning diameter of slide		mm	Φ500
5	Center distance		mm	1500
6	Maximum turning length		mm	1450
7	Center height	From bed	mm	425
7	Center height	Off the ground	mm	1125
8	Spindle hole diameter		mm	Φ105
9	Bar diameter		mm	Φ105
10	With hollow chuck pull rod through hole		mm	Φ88
11	Spindle end type			C11
12	Chuck		mm	Φ400
13	Taper of spindle taper		No	1：20
14	Spindle speed range		rpm	Manual 3rd gear（10~85，40~350，100~850）
15	Diameter of tailstock sleeve		mm	Φ100
16	Taper of inner hole of tailstock sleeve		No	MT6#
17	Tailstock sleeve stroke		mm	250
18	Tailstock configuration			Ordinary hand crank
19	Electric tool post knife number			4
20	Square knife size		mm	32×32 (four stations)
21	Minimum setting unit		mm	0.001
22	Main motor power		kw	11
23	Total power		kw	16
