SD-SJHJ-1500 Lift Type Linear Welding Machine

1.1Processed Product Display

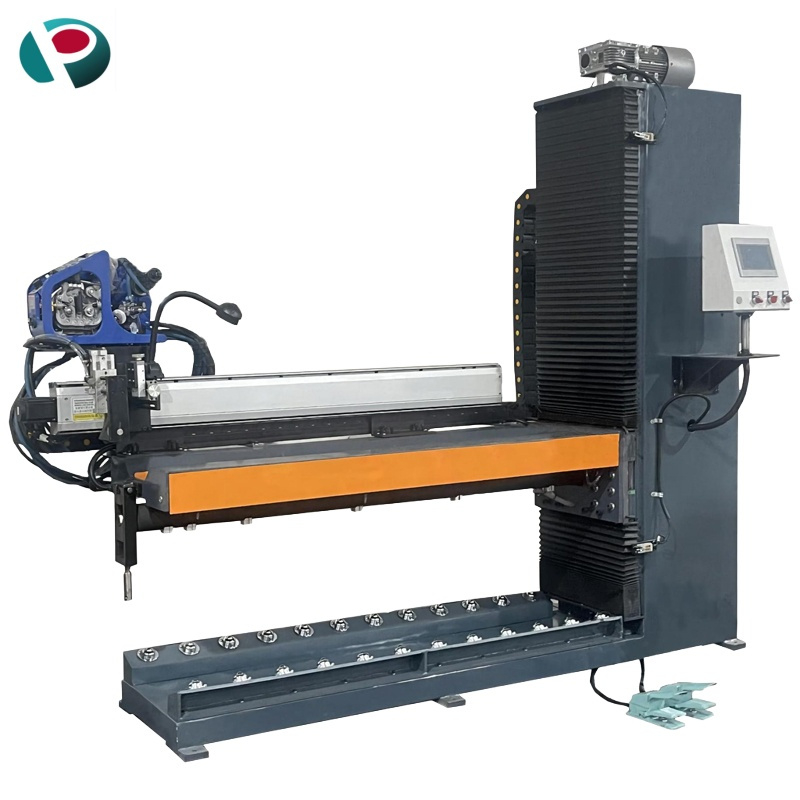

Lift Type Linear Welding Machine

The lifting straight seam welding machine is an advanced welding equipment mainly    used for welding straight seams. It has powerful welding function and lifting function,    and the height can be adjusted according to different needs. This equipment improves welding efficiency and welding quality, and provides convenience for various welding   jobs.This equipment uses advanced welding technology to achieve fast, stable and high- quality welding results. By accurately controlling arc energy and welding speed,

welding consistency and stability are ensured, and defects such as pores and slag     inclusions are avoided. At the same time, it also has the advantage of a high degree  of automation. It can realize automated welding through programming, reduce errors and fatigue, and improve efficiency and accuracy.

In addition to the welding function, the lifting function of the straight seam welding machine is also unique, adapting to the welding needs of different heights. Whether it is a large steel structure or a small precision part, perfect welding can be achieved by adjusting the height of the equipment. In addition, it is equipped with various safety     protection devices and intelligent sensors to ensure operator safety and equipment     stability.

型号   model	直径(mm) diameter	长度(mm) length	厚度mm(碳钢） Thickness (carbon steel)
SD-SJHJ-1500	200-2000	20-1500	0.5-6

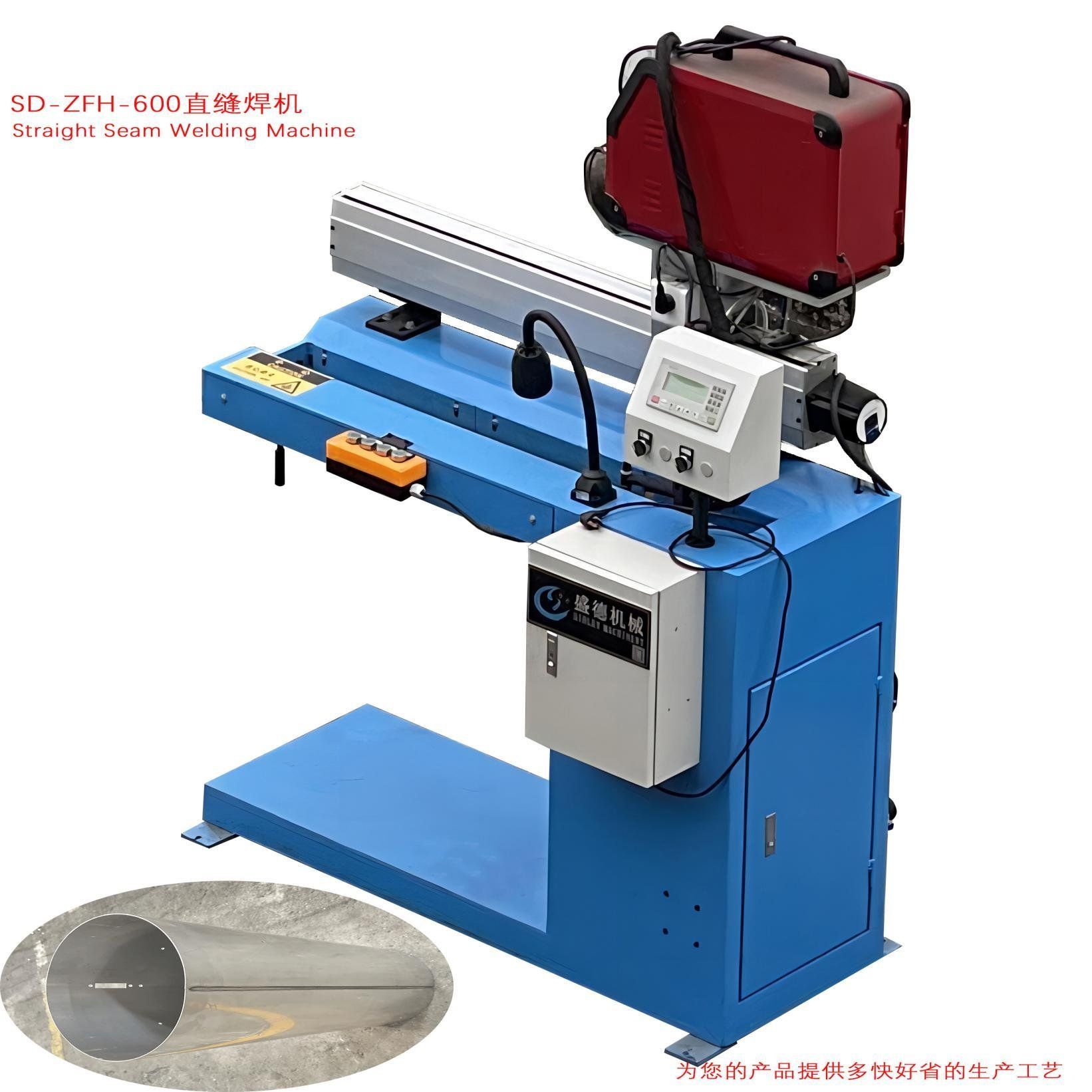

Straight seam welding machine

This straight seam welding machine is a welding equipment with simple structure, high cost performance, stable operation and easy operation.  It can use advanced laser welding technology to achieve fast, accurate and efficient welding. At the same time, the machine can also be equipped with various welding methods such as argon arc welding and secondary welding, which can meet the needs of different materials and processes.

The design concept of this straight seam welding machine is the pursuit of excellent quality and user comfort. Structurally, it adopts simple lines and humanized operation interface, making operation more convenient and faster. At the same time, the machine is also cost-effective,    saving users a lot of costs.

In terms of operational stability, this straight seam welding machine adopts an advanced control system and high-quality materials to ensure that the machine remains stable during long-term operation. In addition, the machine is equipped with a variety of safety protection devices to

effectively ensure the safety of operators.

型号   model	直径(mm) diameter	长度(mm) length	厚度mm(碳钢） Thickness (carbon steel)
NFH-400mm	100-780	400	0.5-6
NFH-600mm	100-780	600	0.5-6
NFH-800mm	100-780	800	0.5-6
NFH-1000mm	100-780	1000	0.5-6
NFH-1200mm	120-1200	1200	0.5-6
NFH-1500mm	150-1500	1500	0.5-6
NFH-2000mm	200-2000	1500	0.5-6
1.如需非标定制 ，请来电咨询 ，洽谈！ 1. If you need non-standard customization, please call us for consultation and negotiation!

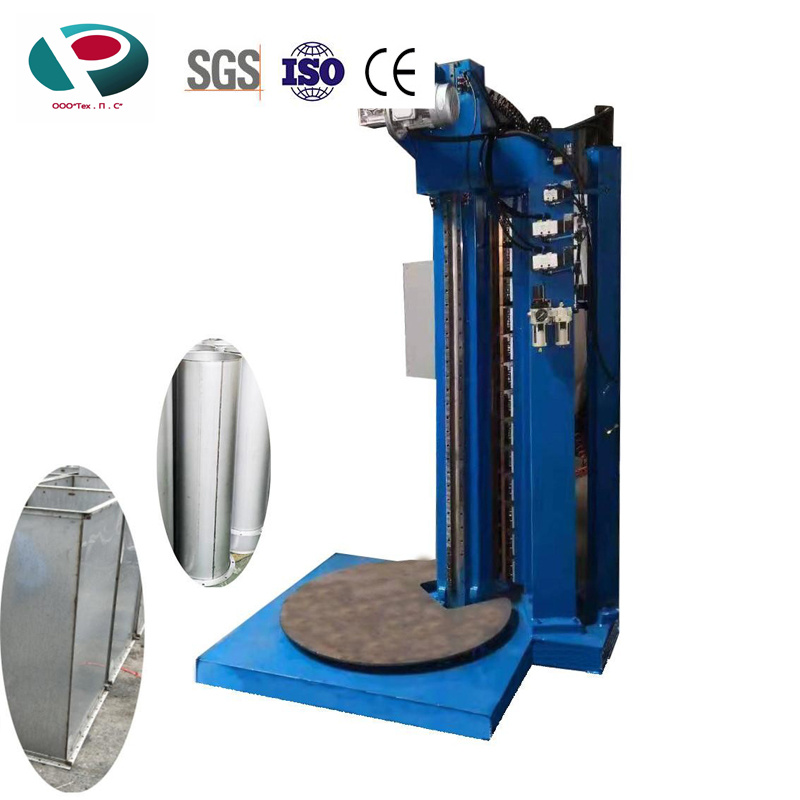

Vertical argon arc welding machine:

1 . strengthen the steel structure body.

2 .Main control electric control box (PLC)

3 . stepper motor lead screw drive system

4 .welding torch height adjustable system

5 .argon arc welding gun welding sliding seat

6 .Workpiece welding fixture (made of red copper)

7 .workpiece lighting

8 .ball screw with linear guide rail transmission part

9 .Touch screen data modification

10 . cylinder direct pressure type workpiece pressing mechanism

11 .Pneumatic components (cylinders)

12 .Central spindle   （180X180）

13 .with lifting square spindle                                           14 .with lifting square spindle

15. Numerical control operating system                       16 external removable operation panel

17 .Weld square Angle electrode                                      18 Solder round electrodes

19 .spindle lifting drive AC motor and reducer           20 .spindle lifting guide linear guide

21 .spindle lifting drive rack and pinion mechanism

22.the lifting AC motor adopts 1.1KW, and the output gear of the lifting motor is equipped with a limit bearing seat.
