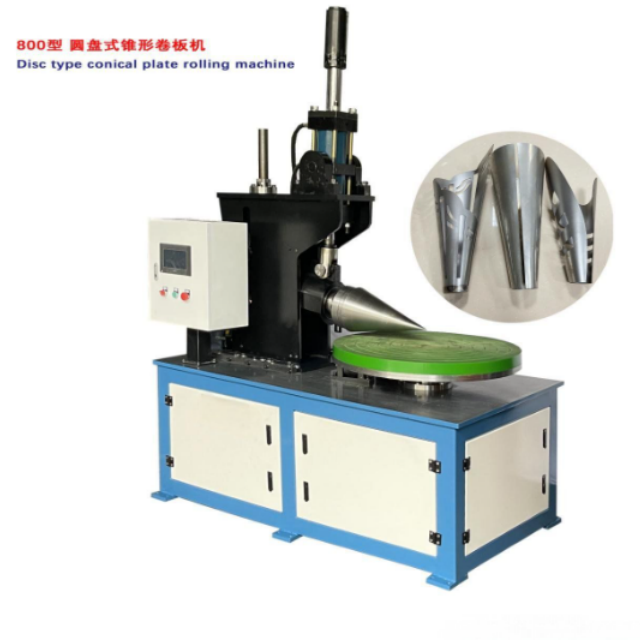

Hydraulic Plate Rolling Machine Cone Rolling Machine

The rounding machine mainly consists of the following parts:
Rounding roller: The rounding roller is the core component of the rounding machine and consists of two or more rollers. One of
the rollers is stationary, and the other or other rollers can be adjusted and moved by mechanical devices. The shape and
diameter of the rolling roller determine the radius and arc of the rolled circle.
Transmission device: The transmission device is used to drive the rotation of the rolling roller. Motors and gear transmission
systems are typically used to provide sufficient force and speed.
Support frame: The support frame is used to fix and support the rounding roller and material. It is usually constructed from a solid
metal structure to ensure the stability and safety of the rounding roller and material.
Control system: The control system is used to control the operation and parameter adjustment of the rounding machine. It can
include devices such as buttons, switches, regulators and sensors to control the speed, force and position of the rounding roller.

Availability:

Quantity:



Inquire Add to Basket

Model:
Rolling Machine

Product Description

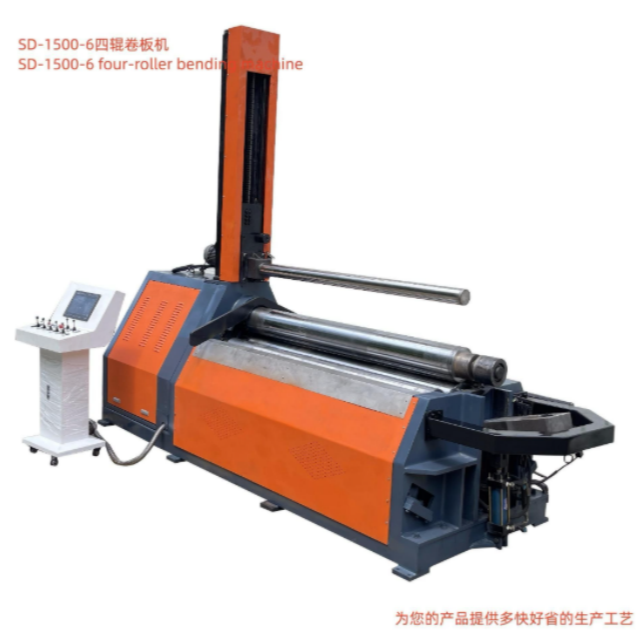

CNC four-roller plate rolling machine

The CNC four-roller plate rolling machine is a high precision plate rolling equipment that is widely used in the bending and forming of metal sheets. compared with traditional plate rolling machines,CNC four-roller plate rolling machines have the following advantages:
1. High-precision control:The CNC four-roller plate bending machine adopts advanced CNC technology and has high-precision positioning and motion control functions. This enables the plate rolling machine to achieve precise plate positioning and movement trajectory control during the rolling process, thereby improving the accuracy and quality of the plate rolling.
2. Ef ici ent production:CNC four-roller plate bending machine has efficient production capacity. Due to its use of CNC technology, it can complete plate rolling processing quickly and accurately, shortening the processing cycle and improving production efficiency,
3.strong adaptability:The CNC four-roller plate bending machine has strong adaptability and can adapt to the processing of plates of different
specifications and materials. Its four-roller structure can flexibly adjust the roller spacing and roller speed to adapt to sheets ofdli ffe rent thicknesses. At the sametime, the cNc four-roller plate rolling machine can also realize plate rolling processing of different shapes and specifications through programming to meet the needs of different users.
4. Easy to operate and maintain:The cNc four-roller plate bending machine adopts a friend lly human-machine interface operating system, making the operation simple and convenient. At the sametime, its modular design makes maintenance and upkeep simpler, reducing
equipment maintenance costs.
5.High reliability:The CNC four-roller plate bending machine adopts high-quality materials and advanced manufacturing technology, and has high reliability and stability. Its four-roller structure can withstand large bending and shear forces, extending the service life of the equipment.

model	1.5x1250	6x1500	12x2000-A	16x2000-B	20x2000-C	12x2500-A	6x2500-B	20x2500-C
Maximum coil width (mm)	1250	1500	2000	2000	2000	2500	2500	2500
Maximum coil thickness chart (mm)	1.5	6	12	16	20	12	16	20
Flexure limit of plate (MP)	245	245	245	245	245	245	245	245
Minimum rolling diameter at maximum plate width and maximum plate thickness (mm)	200	350	650	700	700	700	700	850
Working upper roller diameter (mm)	75	170	220	250	280	250	280	340
Rolling speed (m/min)	8.5	5.5	5.5	5.5	5.5	5.5	5.5	5
Motor power(KW)	0.75	5.5	7.5	15	15	15	15	30

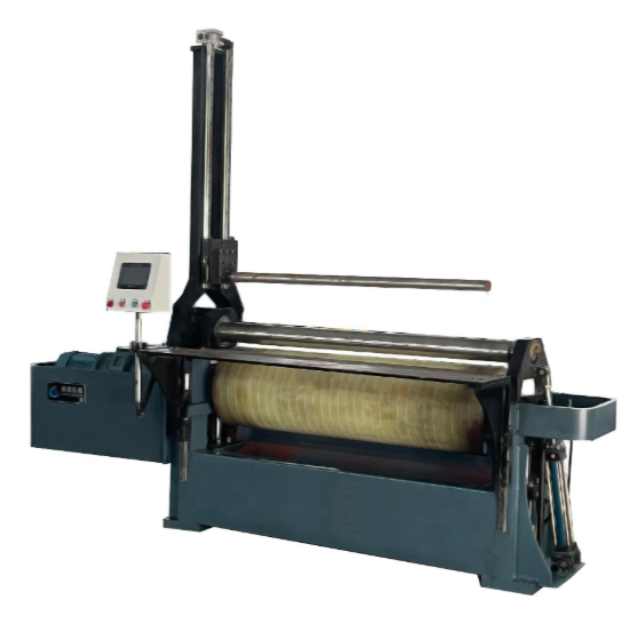

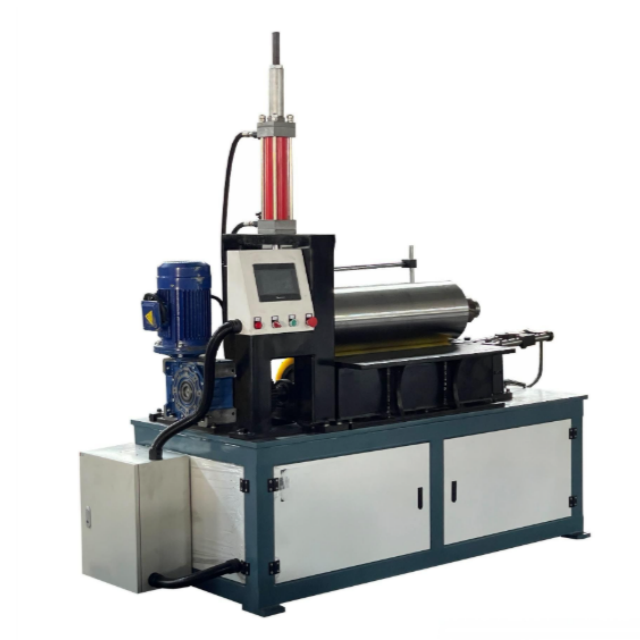

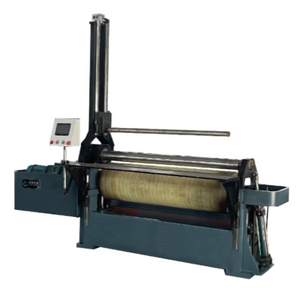

Two-roller plate rolling machine:
The advantages of the two-roller plate rolling machine are as follows:
1. High efficiency: quickly complete a large number of plate rolling tasks, improve production efficiency, and save time and costs.
2. Easy to operate: The automated control system is simple to understand, easy to master and operate.
3. High precision: Advanced control system and high-quality transmission system ensure product quality and consistency.
4. Easy maintenance: reasonable design, simple structure, easy to disassemble and repair.
5. Wide scope of application: It is suitable for curling and processing sheets of various thicknesses and materials to meet different customer needs.
6. The lower roller is made of imported PU glue, which is durable and has no straight edges after rolling.

model	diameter(mm)	length(mm)	Thickness (carbon steel)(mm)
SD-JB-1250-A	100-800	1250	3
SD-JB-1500-A	125-800	1500	3

model	diameter(mm)	length(mm)	Thickness (carbon steel)(mm)
SD-JB-400-B	60-800	400	3
SD-JB-600-B	80-800	600	3
SD-JB-800-B	100-800	800	3

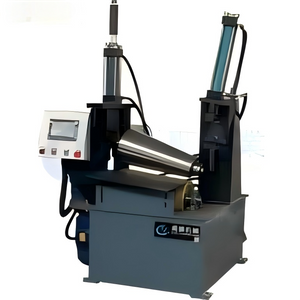

model	(mm) diameter	(mm) length	(mm) Thickness (carbon steel)
SD-XYJB-400-B	60-400	400	3
SD-XYJB-600-B	80-400	600	3
SD-XYJB-800-B	100-400	800	3
