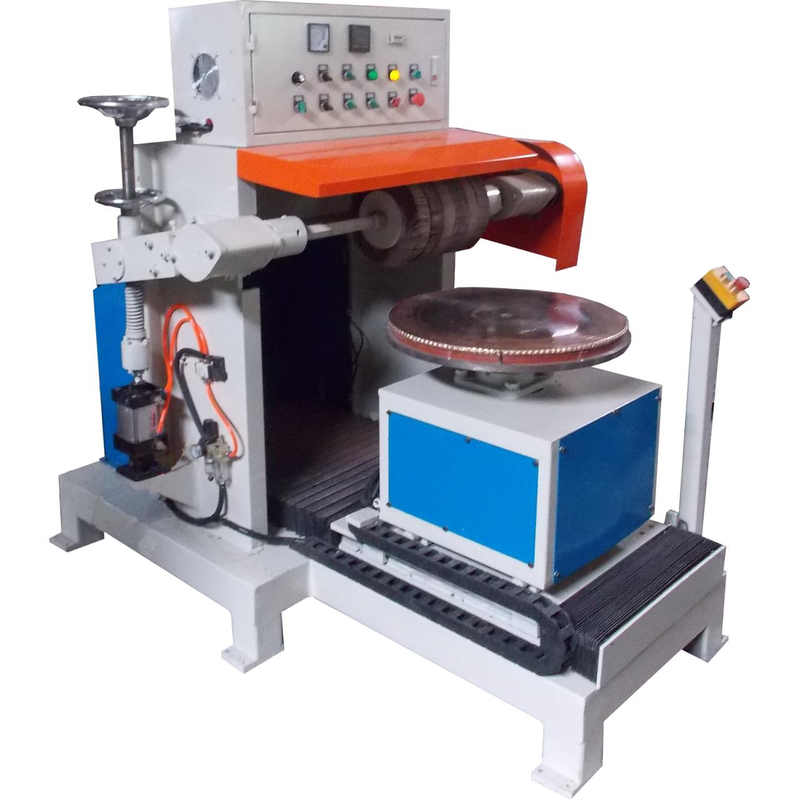

Flat Turntable Polishing Machine

1.1Processed Product Display

Features

Suitable forgrinding and polishing of metal planes, curved surfaces (and non-metalic materials) and surtace treatment before plating. It can be equipped with grinding wheels,hemp wheels,cloth wheels,wind wheels,nylon wheels,fiber wheels,thousand-impeller wheels and abrasive belt wheels. It can be sanded or mirrored,or it can be drawn.The machine tabie can be automatic allyreci procated back and forth(the strokecan be adjusted),and theleft and right direction can be automatically swayed (optional ) , Watertrays can also be added for watertossing

The mechanical structureis reasonable, especially the guiderail has goodrigidity and longwearcycle. Electricalcontrol designis scientiic and easy to use. Cylindertype shaf closingmechanism, the position ofthe shaft closing isaccurate and stable, and it is amachine withgood quality,strong function,and high eficiency,which is bothe conomical and practical

电源类型Power type	AC 380V三相四线（Three-phase four- wire）
总功率Total power	9KW
主轴转速Spindle rotation speed	2000转／份
摇摆功能Swing function	有／Yes
计数功能Counting function	有／Yes
工作台尺寸（ mm）Working table size	620x620mm
设备重量Equipment weight	1275Kg

设备体积Equipment volume	2100x1700x1700mm
空气压力Air pressure	0.5-0.8Mpa
抛光轮轴Polishing wheel axle	32六角方 Hexagonal square
压力显示功能Pressure display function	有／Yes
抛弧面／平面功能Curve casting/plane function	有／Yes
控制方式Control method	手动／ 自动 Manual／Automatic
保修期限Warranty period	1年／1Year

What do we offer?

Like almost all metal spinning machine manufacturers, we design and produce a range of spinning machines with different main parameters to meet customer needs. These spinning machines can save labor costs and improve the quality of the final product. They can process materials such as carbon steel, stainless steel, aluminum, copper, and brass of specific thicknesses. The PLC system controls the operation accuracy without operator intervention. We offer powerful CNC metal spinning machines equipped with multiple tools and optional additional accessories. Such a tool set is sufficient to complete various processes such as trimming, rolling, and flanging. A variety of shapes can be processed, such as cylinders, rings, cones, hemispheres, and parabolas. We also offer customization options. Product weights range from 600 kg to 4000 kg.

This metal processing method is both simple and complex. Spinning is a process that can only be accomplished with carefully designed machines. The spinning machines we offer allow you to easily achieve fine processing results. If you want to buy the right spinning machine at the best price, please consider our metal spinning machines on special offer.
