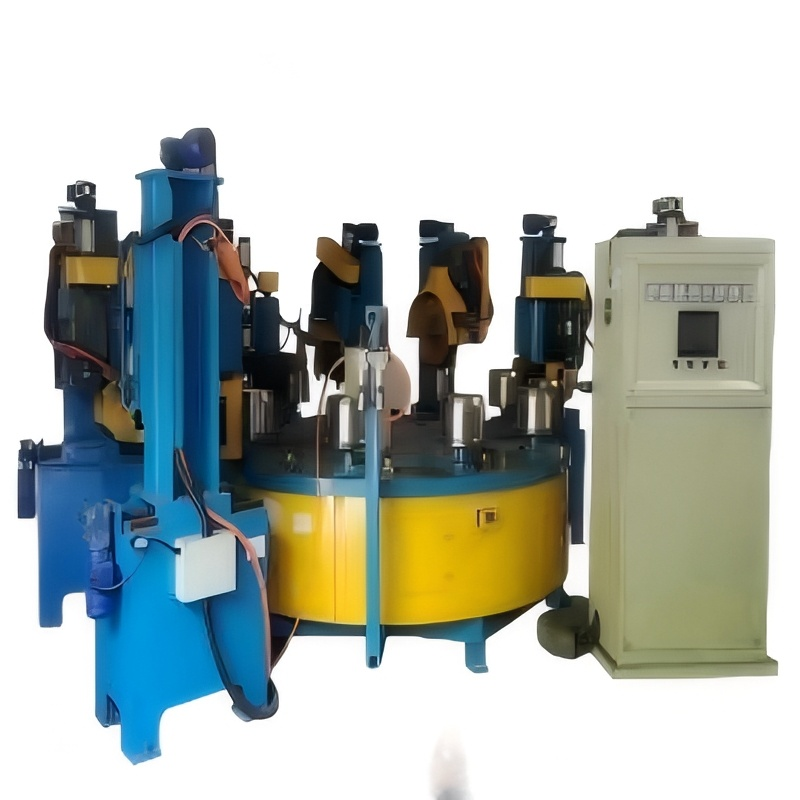

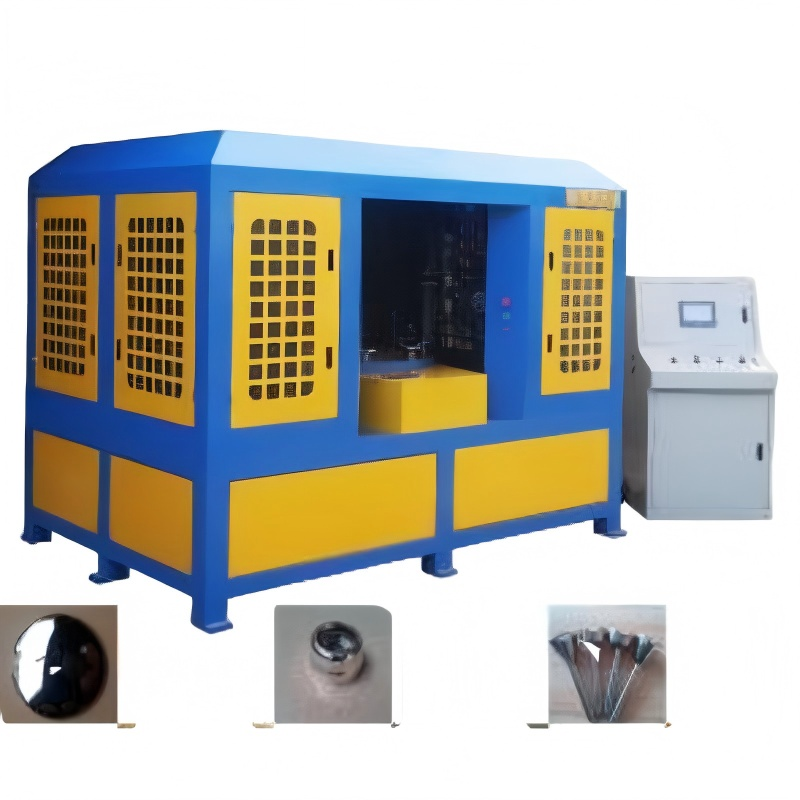

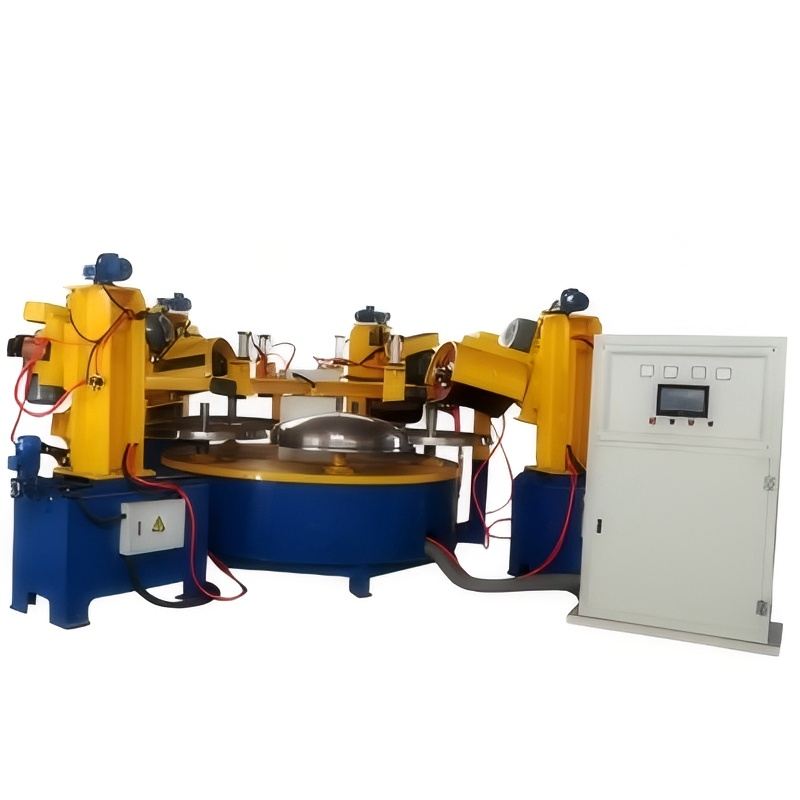

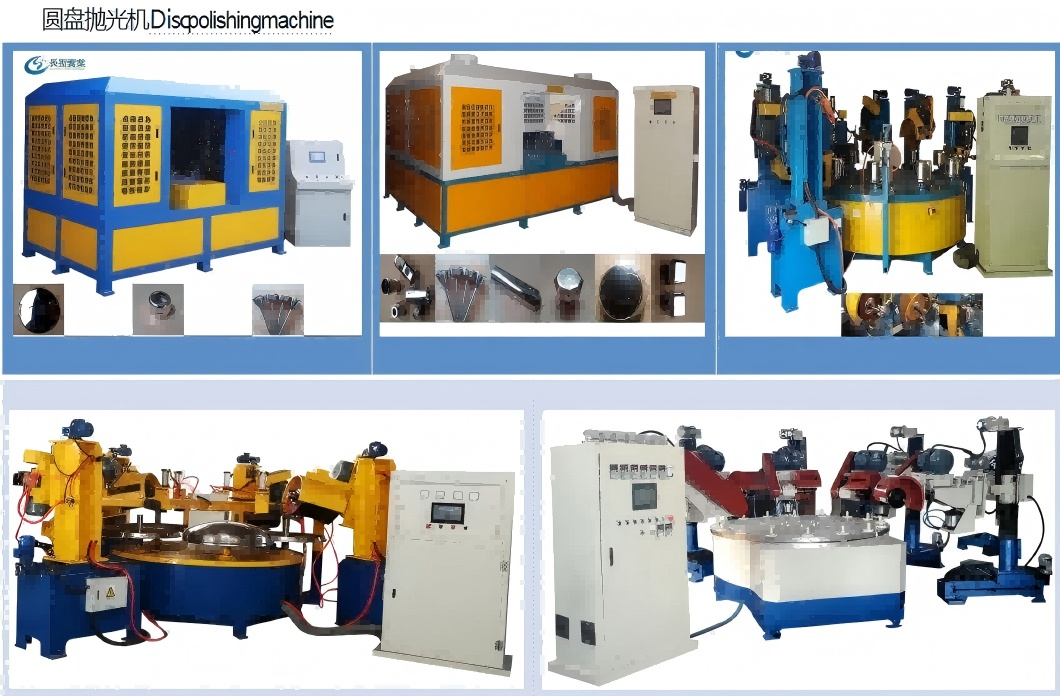

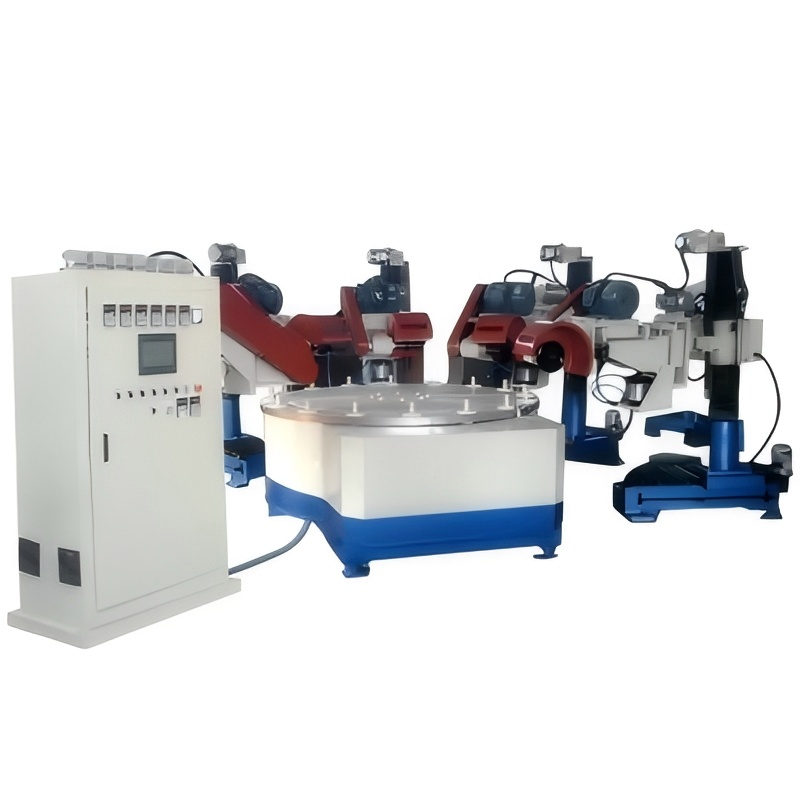

Disc Polisher Planetary Polisher Multi-Station Polishing Equipment

1.1Processed Product Display

Features

This equipment is a standard model of our company, with the characteristics of stable operation, high production

eficiency and simple operation.

The polishing head has the functions ofup and downswing, forward and backwards wing, up and down delay, advance and retreat delay.The polishing head can be equipped with abrasive bel is according to customer needs, and the polishing head can rotate in any angle in three- dimensional space.

The control mode can be equipped with unlimited remote control. The machine commissioning only needs one person to operate, which eliminates the

safety hazards caused by the operation of two people. wax spray is controlled by time mode. The amount and time of wax spray can be set.

polishing wheel wear compensation includes time, quantity, and pressure compensations(no special requirement, time compensation by default). Randomly equipped with a dust cover to reduce environmental pollution(optional),

The disc rotation is completed by the divider, with high rotation accuracy and stable operation.

The polishing head can be equipped with different consumables according to customer needs, which can complete the work piece from rough to fine polishing at atime, which greatly improves the stability of product quality.

名称Mode	长x宽x高（ LxWxH）	总功率 Power	抛光打磨工件规格（直径×高度） Workpiece specification (diameterxheight)
四组抛光机 4 group polishing machine	2700x2200x2200mm	20KW	120x120mm
五组抛光机   5 group polishing machine	3200x2700x2200mm	24KW	120x120mm
六组抛光机   6 group polishing machine	3200x2700x2200mm	28KW	120x120mm
七组抛光机   7 group polishing machine	3800x2900x2400mm	32KW	120x120mm
八组抛光机   8 group polishing machine	4200x3400x2400mm	36KW	120x120mm
九组抛光机   9 group polishing machine	4200x3400x2400mm	40KW	120x120mm
四组重型抛光机4 group heavy polishing machines	3000x3000x2400mm	36KW	250x250mm
五组重型携光机 5 group heavy polishing machines	3800x3000x2400mm	42KW	250x250mm
六组重型抛光机6 group heavy polishing machines	4200x3400x2400mm	49KW	250x250mm
七组重型携光机 7 group heavy polishing machines	4200x3400x2400mm	56KW	250x250mm

备注Remarks设备可选配： 自动喷蜡、 自动补偿、防尘罩、无限触摸控制

The machine can be equipped with the following options:automatic waxspray,automatic compensation,dustcover,unlimited touch control.

Other Product

METAL SPINNING MACHINE

FLANGING MACHINE

What do we offer?

Like almost all metal spinning machine manufacturers, we design and produce a range of spinning machines with different main parameters to meet customer needs. These spinning machines can save labor costs and improve the quality of the final product. They can process materials such as carbon steel, stainless steel, aluminum, copper, and brass of specific thicknesses. The PLC system controls the operation accuracy without operator intervention. We offer powerful CNC metal spinning machines equipped with multiple tools and optional additional accessories. Such a tool set is sufficient to complete various processes such as trimming, rolling, and flanging. A variety of shapes can be processed, such as cylinders, rings, cones, hemispheres, and parabolas. We also offer customization options. Product weights range from 600 kg to 4000 kg.

This metal processing method is both simple and complex. Spinning is a process that can only be accomplished with carefully designed machines. The spinning machines we offer allow you to easily achieve fine processing results. If you want to buy the right spinning machine at the best price, please consider our metal spinning machines on special offer.
