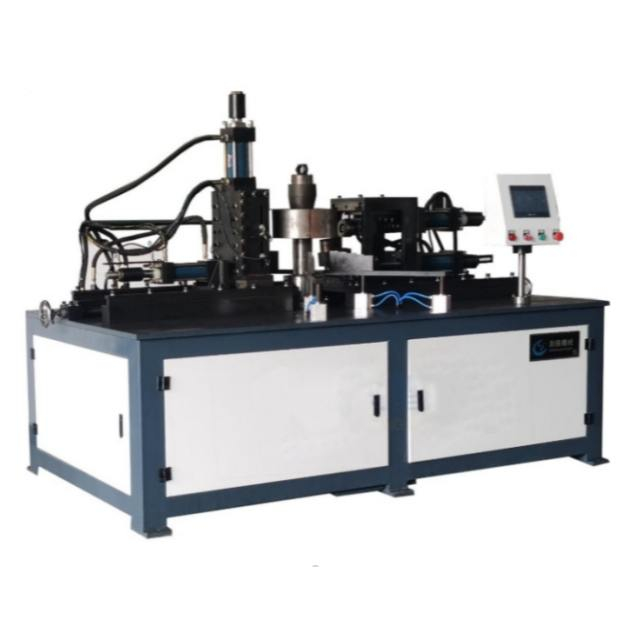

Wrapping and Flanging Machine

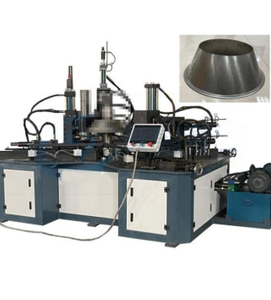

Multi-function flanging machinee quipment
Multi-function flanging machine equipment company, which is used in the design. development. production of all kinds of large fan, air ducts, air valve, vibrating screen, pressure vessels and other sheet metal molding pipe flanging machine equipment, the product features: the operation is simple, flanging speed, high precision punching, flanging width, flanging duct diameter, length and shape of the punching number and the size is adjustable, etc. Can beadded according to the requirements of straight edge, roll edge, horn edge, reinforcement, groove, trimming, flaring,shrinkage, two fold edge, up and down fold, punching and other functions; Can be customized according to customer requirements of all kinds of equipment.
Specification
| Model | Diameter | Length | Thickness(Stainless steel) |
| FTSM-2500-A | 2500 | 1000/1500 | 12/20/30 |
| FTSM-4000-A | 4000 | 1000/1500 | 12/20/30 |
| FTSM-6000-A | 6000 | 1000/2000 | 12/20/30 |
| FTSM-8000-A | 8000 | 1000/2500 | 12/20/30 |
| FTSM-10000-A | 10000 | 1000/2500 | 12/20/30 |
Head spinning machine
1. Full CNC control, only need to call the preset program to realize the edge spinning operation.
2. The precise control of the movement accuracy of each axis by the servo motor ensures high diameter accuracy and excellent consistency in product processing.
3. The equipped turning device can not only complete turning operations, but also has the ability to chamfer the workpiece.
4. In order to ensure the smooth installation and disassembly of the mold, the mold installation rack needs to be properly configured to improve operating efficiency and convenience.
5. Configure workpiece loading bracket.
6. The equipment has a one-button start function and is easy to operate. Only one operator can easily manage two machines, thus significantly reducing labor costs and improving work efficiency.
Head forming machine
1. Full CNC control, only need to call the preset program to realize the edge spinning operation.
2. The precise control of the movement accuracy of each axis by the servo motor ensures high diameter accuracy and excellent consistency in product
processing.
3. The equipped turning device can not only complete turning operations, but also has the ability to chamfer the workpiece.
4. In order to ensure the smooth installation and disassembly of the mold, the mold installation rack needs to be properly configured to improve
operating efficiency and convenience.
5. Configure workpiece loading bracket.
6. The equipment has a one-button start function and is easy to operate. Only one operator can easily manage two machines, thus significantly reducing
labor costs and improving work efficiency.
| Model | Diameter | Length | Thickness(Stainless steel) |
| FTFM-2500-A | 2500 | 1000/1500 | 12/20/30 |
| FTFM-4000-A | 4000 | 1000/1500 | 12/20/30 |
| FTFM-6000-A | 6000 | 1000/2000 | 12/20/30 |
| FTFM-8000-A | 8000 | 1000/2500 | 12/20/30 |
| FTFM-10000-A | 10000 | 1000/2500 | 12/20/30 |
CNC spinning molding equipment
1.has the mature CAD drawing programming software function, the wheel movement track can be straight line, arc, multi arc connection lineand combination curve, and input to the computer for track normalization programming.
2.the operator can input process parameters and spin pass through the keyboard and operation panel, and can be freely edited, stored andcalled.
3.with the core mold contour "copy" protection function, that is, in the process adjustment and recording back teaching, the wheel will notcollide with the core mold.
4. In the automatic program of the machine tool, the feed speed and spindle speed can be suspended. With stroke limit protection, softwareand hardware limit protection in control system, fault detection and alarm function.
5.Automatic fault detection, automatic diagnosis and overload protection for each unit after startup.
6.according to the requirements of users, can realize a variety of special shape parts spinning forming, to ensure the shape of the workpiecesurface, diameter, thinning rate and other related dimensions meet the requirements.
7.in the same machine to complete trimming, flanging, rolling, shrinking, rolling processing and other functions.
8,This machine is suitable for fans, lamps and lanterns, cooking utensils, crafts and other industries. It can complete batch production of barrel type,cone type. parabola type, horn type and warhead type. Various non-standard equipment can be customized according to reauirements.
9.Double knife independent type, each movement shaft can be controlled independently, double knife connected type, regulating wheel linkage.
| Model | Diameter | Length | Thickness (carbon steel) |
| CPSM-200 | 200mm | 2500mm | 10mm |
| CPSM-400 | 400mm | 2500mm | 16mm |
CNC single wheel spinning machine
1.has the mature CAD drawing programming software function, the wheel movement track can be straight line, arc, multi arc connection lineand combination curve, and input to the computer for track normalization programming.
2.the operator can input process parameters and spin pass through the keyboard and operation panel, and can be freely edited, stored andcalled.
3.with the core mold contour "copy" protection function, that is, in the process adjustment and recording back teaching, the wheel will notcollide with the core mold.
4. In the automatic program of the machine tool, the feed speed and spindle speed can be suspended. With stroke limit protection, softwareand hardware limit protection in control system, fault detection and alarm function.
5.Automatic fault detection, automatic diagnosis and overload protection for each unit after startup.
6.according to the requirements of users, can realize a variety of special shape parts spinning forming, to ensure the shape of the workpiecesurface, diameter, thinning rate and other related dimensions meet the requirements.
7.in the same machine to complete trimming, flanging, rolling, shrinking, rolling processing and other functions.
8,This machine is suitable for fans, lamps and lanterns, cooking utensils, crafts and other industries. It can complete batch production of barrel type,cone type. parabola type, horn type and warhead type. Various non-standard equipment can be customized according to reauirements.
9.Double knife independent type, each movement shaft can be controlled independently, double knife connected type, regulating wheel linkage.
| Model | Diameter | Length | Thickness(Stainless steel) |
| SM-400-A | 400 | 500 | 4 |
| SM-600-A | 600 | 500 | 4 |
| SM-800-A | 800 | 500 | 4 |
| SM-1200-A | 1200 | 500 | 4 |
| SM-1500-A | 1500 | 600 | 6 |
| SM-2000-A | 2000 | 600 | 6 |
Three-wheel high-power spinning machine
Three-wheel high-power spinning machine is mainly used for thinning or thickening the thickness of cylindrical parts and the spinningforming of some small-diameter thick plates. lt can also be used for surface spinning hardening treatment of some workpieces. Theequipment has the characteristics of high rigidity and high precision, and can process precision cylindrical parts,high-pressure gascylinders, servo hydraulic cylinders, engine housings, etc.
